| Ref. |
OEM Part # |
Hardin # |
Mallory # |
GLM # |
Other # |
Description |
Num Req. |
Superceded From |
Special Notes |

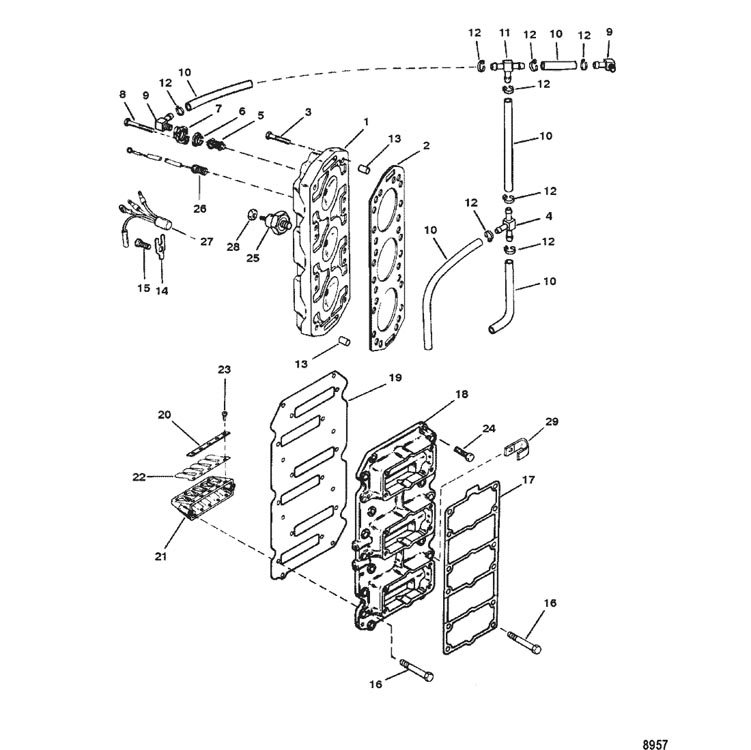

| 1 |
18488F1 |
|
|
|
|
CYLINDER HEAD |
2 |
|
|
| 2 |
27-822844T05 |
|
|
|
|
GASKET |
2 |
8228441 |
|
| 3 |
10-98534 |
|
|
|
|
SCREW, (.375-16 x 2.30) |
24 |
|
|
| 3 |
10-13450 |
|
|
|
|
SCREW, (.375-16 x 2.30) |
1 |
|
No Longer Available |
| 4 |
22-815914 |
|
|
|
|
T-FITTING |
1 |
|
|
| 5 |
75692 |
|
|
|
|
THERMOSTAT |
2 |
|
|
| 6 |
27-62386001 |
|
|
|
|
GASKET |
2 |
62386 |
|
| 7 |
90390A1 |
|
|
|
|
COVER KIT |
2 |
|
|
| 8 |
10-35386 |
|
|
|
|
SCREW, (.312-18 x 1.00) |
4 |
|
|
| 9 |
22-136071 |
|
|
|
|
FITTING, WATER HOSES |
2 |
13607 |
|
| 10 |
32-8M0108349 |
|
|
|
|
TUBING, (28.00 Inches Bulk) (Cut (1) to 2-1/2 Inches, (2) to 7-1/2 Inches, (1) to 10-1/2 Inches, (1) to 14-1/2 Inches) |
5 |
83075780 |
|
| 11 |
22-90824001 |
|
|
|
|
TEE |
1 |
90824 |
|
| 12 |
54-816311T |
|
|
|
|
TIE STRAP, (8.00 Inches) |
AR |
816311 |
|
| 13 |
17-63779 |
|
|
|
|
PIN, Dowel (.250 x .625) |
4 |
|
|
| 14 |
137151 |
|
|
|
|
RETAINER |
2 |
|
|
| 15 |
10-98257 |
|
|
|
|
SCREW, (.312-18 x .500) |
2 |
|
|
| 16 |
10-55715 |
|
|
|
|
SCREW, (.250-20 x .880) |
6 |
|
|
| 16 |
10-90197 |
|
|
|
|
SCREW, (.250-20 x 1.125) |
6 |
|
|
| 17 |
27-167371 |
|
|
|
|
GASKET |
1 |
|
|
| 18 |
17735A2 |
|
|
|
|
ADAPTOR PLATE ASSEMBLY |
1 |
|
No Longer Available |
| 19 |
27-146972 |
|
|
|
|
GASKET |
1 |
|
|
| 20 |
961832 |
|
|
|
|
CLAMP, Reed |
12 |
|
|
| 21 |
75953 |
|
|
|
|
REED BLOCK |
6 |
|
|
| 21 |
11645A4 |
|
|
|
|
REED BLOCK |
6 |
|
No Longer Available |
| 22 |
34-14594A2 |
|
|
|
|
REED ASSEMBLY |
6 |
14594A1 |
|
| 22 |
34-14594A3 |
|
|
|
|
REED ASSEMBLY |
6 |
|
|
| 23 |
10-823588 |
|
|
|
|
SCREW, (#8-32 x .250), Reeds to Reed Block |
60 |
|
|
| 23 |
10-849038 |
|
|
|
|
SCREW |
48 |
849039 |
|
| 24 |
10-28668 |
|
676-9-78127 |
700-22440 |
|
SCREW, (.250-20 x .875) Stainless Steel |
8 |
|
|
| 25 |
825164 |
|
|
|
|
SENSOR, Detonation |
1 |
|
No Longer Available |
| 26 |
97465 |
|
|
|
|
SENDER, Temperature (STARBOARD) |
1 |
|
|
| 27 |
13536A6 |
|
|
|
|
SENSOR ASSEMBLY, Temperature (PORT) |
1 |
|
|
| 28 |
11-45076 |
|
|
|
|
NUT, (#10-32) Brass |
1 |
|
|
| 29 |
54-55098 |
|
|
|
|
J CLIP |
1 |
|
|
| - |
27-823142A94 |
|
|
|
|
GASKET SET |
1 |
|
|
| - |
809839T94 |
|
|
|
|
POWERHEAD ASSEMBLY |
1 |
809839A94 |
|
| - |
808603T94 |
|
|
|
|
POWERHEAD ASSEMBLY |
1 |
808603A94 |
No Longer Available |
