| Ref. |
OEM Part # |
Hardin # |
Mallory # |
GLM # |
Other # |
Description |
Num Req. |
Superceded From |
Special Notes |

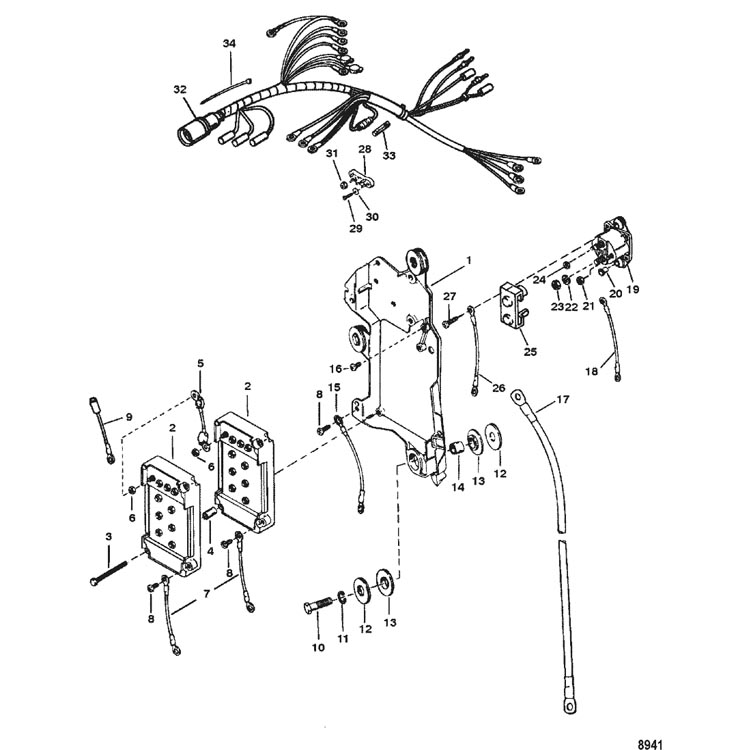

| 1 |
434292 |
|
|
|
|
IGNITION PLATE |
1 |
|
|
| 2 |
332-7778A12 |
|
676-9-25100 |
|
|
SWITCHBOX ASSEMBLY |
2 |
|
|
| 3 |
10-13669 |
|
|
|
|
SCREW, (#12-24 x 2.00) |
2 |
|
No Longer Available |
| 4 |
23-94453 |
|
|
|
|
BUSHING |
2 |
|
No Longer Available |
| 5 |
84-62310A2 |
|
|
|
|
CABLE ASSEMBLY |
1 |
|
|
| 6 |
11-45076 |
|
|
|
|
NUT, (#10-32) Brass |
20 |
|
|
| 7 |
84-60871A10 |
|
|
|
|
WIRE ASSEMBLY |
2 |
|
|
| 8 |
10-878607 |
|
|
|
|
SCREW, (#10-16 x .380) |
3 |
817626 |
|
| 9 |
84-91865A1 |
|
|
|
|
CABLE ASSEMBLY |
1 |
|
No Longer Available |
| 9 |
84-88528A2 |
|
|
|
|
CABLE ASSEMBLY |
1 |
|
No Longer Available |
| 10 |
10-60411 |
|
|
|
|
SCREW, (.312-18 x 1.250) |
3 |
|
|
| 11 |
13-26993 |
|
|
|
|
LOCKWASHER, (.312) |
3 |
|
|
| 12 |
12-36042 |
|
|
|
|
WASHER |
6 |
|
|
| 13 |
12-67264 |
|
|
|
|
WASHER, (Rubber) (RUBBER) |
6 |
|
|
| 14 |
23-67268 |
|
|
|
|
BUSHING |
3 |
|
|
| 15 |
84-65999A3 |
|
|
|
|
CABLE ASSEMBLY, Black (BLACK) |
1 |
|
|
| 16 |
10-87926 |
|
|
|
|
SCREW, (#10-32 x .500) |
1 |
|
|
| 17 |
84-88439A3 |
|
|
|
|
CABLE ASSEMBLY, Positive - Battery |
1 |
|
|
| 17 |
84-88439A4 |
|
|
|
|
CABLE ASSEMBLY, Battery - Negative |
1 |
|
|
| 18 |
84-93388A14 |
|
|
|
|
CABLE ASSEMBLY |
1 |
93388A7 |
|
| 19 |
89-817109A2 |
|
|
|
|
SOLENOID ASSEMBLY, (#10-32 / .3125-18 Terminals) |
1 |
|
|
| 20 |
23-818968 |
|
|
|
|
BUSHING |
2 |
|
|
| 21 |
11-45076 |
|
|
|
|
NUT, (#10-32) Brass |
4 |
|
|
| 22 |
13-53166 |
|
|
|
|
LOCKWASHER, (.312) |
2 |
|
|
| 23 |
11-68292 |
|
|
|
|
NUT, (.312-18) |
2 |
|
|
| 24 |
11-45076 |
|
|
|
|
NUT, (#10-32) Brass |
2 |
|
|
| 25 |
85-97861 |
|
|
|
|
INSULATOR |
1 |
|
|
| 26 |
84-65999A2 |
|
|
|
|
CABLE ASSEMBLY, Black (BLACK) |
1 |
|
|
| 27 |
10-455611 |
|
|
|
|
SCREW, (.250-20 x 1.12) (1-1/8 Inch) |
2 |
45561 |
|
| 28 |
86-194372 |
|
|
|
|
TERMINAL BLOCK |
1 |
|
No Longer Available |
| 29 |
10-38055 |
|
|
|
|
SCREW, (.190-32 x .620) |
2 |
|
|
| 30 |
12-89302 |
|
|
|
|
WASHER, (.203 x .406 x .040) |
2 |
|
|
| 31 |
11-45076 |
|
|
|
|
NUT, (#10-32) Brass |
2 |
|
|
| 32 |
84-96220A16 |
|
|
|
|
HARNESS ASSEMBLY, Engine Wiring |
1 |
|
|
| 32 |
84-848464A2 |
|
|
|
|
HARNESS ASSEMBLY, Engine Wiring |
1 |
|
No Longer Available |
| 33 |
88-79091 |
|
|
|
|
FUSE, 20 Ampere |
1 |
|
|
| 34 |
54-816311T |
|
|
|
|
TIE STRAP, (8.00 Inches) |
AR |
816311 |
|
