200 EFI PRO MAX and SUPER MAG - Serial 0D935000 Thru 0G610079 - Exhaust Divider and Exhaust Plate

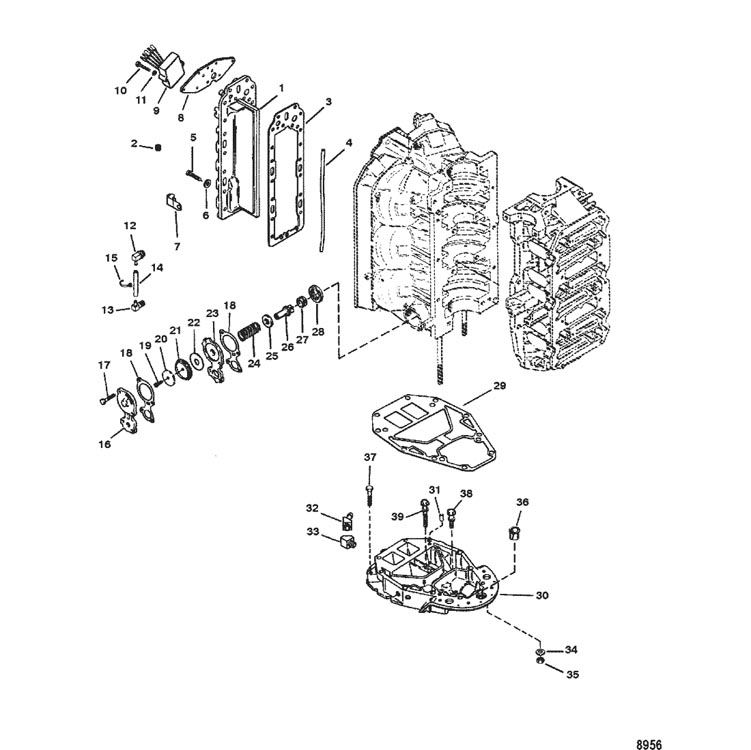

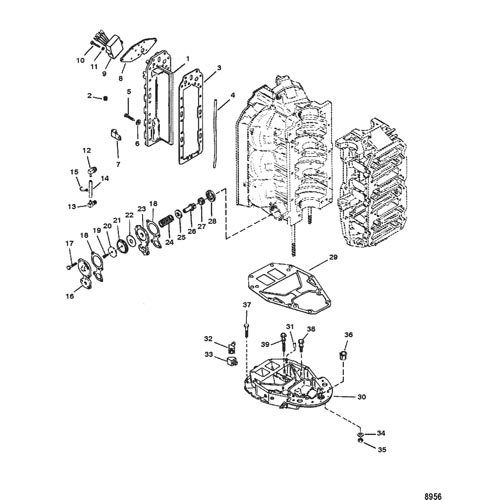

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 815552T1         DIVIDER PLATE 1 815552A1
2 22-328022



PLUG, Pipe (.125-27) 1  328021
3 27-847525004



GASKET 1 8475251
4 26-814754



SEAL, (12.50 Inches) 1
5 10-848496



SCREW 18 847538
5 10-848497



SCREW, (.312-18 x 1.00) 2
6 12-847526



WASHER (USE WHERE APPLICABLE) 20
7 54-814634



CLAMP (LARGE) AR
7 54-642352



J CLIP (SMALL) 1
8 8478951



PLATE, Regulator 1
9 8M0084173



REGULATOR, Voltage 1 815279T
10 10-69697



SCREW, (.250-28 x 1.50) 4   No Longer Available
11 11-826709109



NUT, (.250-28) 4 35045
12 22-8144301



FITTING, (.500-14) 1 814430
13 22-920071



FITTING, (.250-18) (90 DEGREES) 1 92007
14 32-8M0108355



HOSE, (57.00 Inches Bulk) (Cut to 23-1/2 IN.) 1 830756109
15 54-816311T



TIE STRAP, (8.00 Inches) 2 816311
16 8M0039767



COVER 1 68729
17 10-74824



SCREW, (.312-18 x 1.250) 4
18 27-78690002



GASKET 2 78690
19 10-69570



SCREW, (#10-16 x .750) 1
20 12-76451



WASHER 1
21 144791



DIAPHRAGM 1 14479
22 16496



DEFLECTOR, Water 1
23 16497A1



PLATE 1
24 24-64878



SPRING, (Black) 1
25 12-85303



WASHER 1
26 14480



POPPET 1
27 25-64872



GROMMET 1
28 65848



CARRIER 1
29 27-8231422



GASKET 2 8231421
30 18260A4



PLATE ASSEMBLY, Exhaust 1   No Longer Available
31 17-8M0043826



PIN, Dowel (.875) 2 823106
32 22-14867



ELBOW, 45 Degree (45 DEGREES) 1
33 22-29085



FITTING, Elbow (45 Degree) 1
34 12-822838



WASHER, (.401 x .745 x .097) 6
35 11-46335



NUT, (.375-24) 6
36 23-27132



BUSHING 1
37 10-898833



SCREW, (.375-16 x 3.50) 3 66725
38 10-66727



SCREW, (.312-18 x 1.250) 1
39 10-68783



SCREW, (.312-18 x 2.50) 1
- 27-823142A94



GASKET SET 1
- 809839T94



POWERHEAD ASSEMBLY 1 809839A94
- 808603T94



POWERHEAD ASSEMBLY 1 808603A94 No Longer Available
