200 EFI PRO MAX and SUPER MAG - Serial 0D935000 Thru 0G610079 - Fuel Management System(0G366999 and Below)

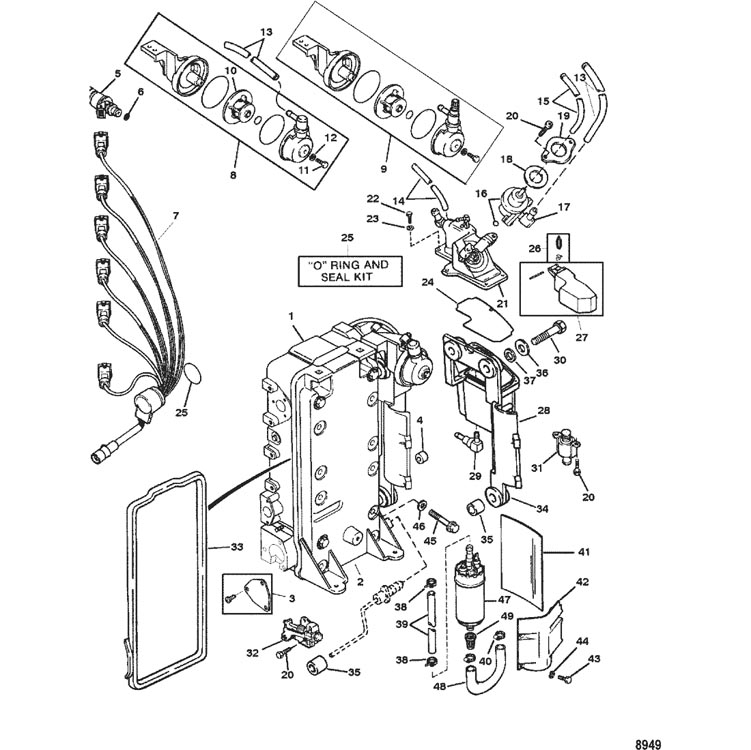

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
- 14817A19         MANAGEMENT ASSEMBLY, Fuel 1    No Longer Available
1 827693



THROTTLE BODY 1     No Longer Available
2 827692



COVER 1     No Longer Available
3 827696



RETAINER KIT 1    No Longer Available
4 67748



ROLLER 1
5 18715T



INJECTOR, Fuel 6 18715
6 35-17422



FILTER 1
7 84-15443



HARNESS KIT 1
8 35-15442



FILTER KIT, Fuel (DESIGN I) 1     No Longer Available
9 35-154422



FILTER KIT, Fuel 1 154421   No Longer Available
9 35-154422



FILTER KIT, Fuel 1     No Longer Available
10 35-150282



FILTER, Fuel 1
11 10-400034



SCREW, (M5 x 14) 1
12 13-400255



LOCKWASHER, (M5) 1
13 32-1350385



TUBING, (30.00 Inches Bulk) (1/2 IN. O.D.) 1 1350382
14 32-9912688



TUBING, (36.00 Inches Bulk) (1/8 IN. I.D.) 1
15 32-892024122



TUBING, (20.00 Feet Bulk) (3/32 IN. I.D.) 1 99130122
16 15027



REGULATOR 1
17 814233



ELBOW KIT 1     No Longer Available
18 27-18791



GASKET 1     No Longer Available
19 814012



PLATE 1     No Longer Available
20 10-814076



SCREW AR     No Longer Available
21 814010



COVER KIT 1     No Longer Available
22 10-4001987



SCREW, (M4 x 16) 6
23 13-26995



LOCKWASHER, (#8) Stainless Steel 6
24 26-18790



SEAL 1
25 15029



O-RING AND SEAL KIT 1     No Longer Available
26 15446



VALVE KIT, Float 1     No Longer Available
27 15445



FLOAT KIT 1
28 814011



BODY KIT 1     No Longer Available
29 21-424811



CHECK VALVE 1 42481
30 10-4000332



SCREW, (M6 x 35) 3
31 21-18241



CHECK VALVE 1
32 814077



VALVE, Shut-Off 1     No Longer Available
33 26-18792



SEAL 1
34 23-19275



SPACER 3     No Longer Available
35 23-814913



SPACER 3     No Longer Available
36 12-35280



WASHER, (.255 x .620 x .030) Stainless Steel (LARGE) 3
37 12-69057



WASHER, (.281 x .734 x .063) (SMALL) 3
38 54-13791
676-9-35604

CLAMP, (15.7) 2
39 32-1350385



TUBING, (30.00 Inches Bulk) (1-3/4 IN.) 1 1350382
40 54-F698772



CLAMP, Worm Gear 2
41 14639



BLANKET 1     No Longer Available
42 14640T



COVER 1     No Longer Available
43 10-32228



SCREW, (#10-32 x .625) 4
44 13-26996



LOCKWASHER, (#10) Stainless Steel 4
45 10-845674



SCREW, (.250-20 x 4) 12 90088
46 12-29245



WASHER, (.281 x .500 x .060) Stainless Steel 10
47 14307T01



PUMP ASSEMBLY, Fuel 1 14307A1
48 32-146332



HOSE 1
49 35-885188



FILTER, Fuel 1 823501
