200 EFI PRO MAX and SUPER MAG - Serial 0D935000 Thru 0G610079 - Fuel Management System(0G367000 and Up)

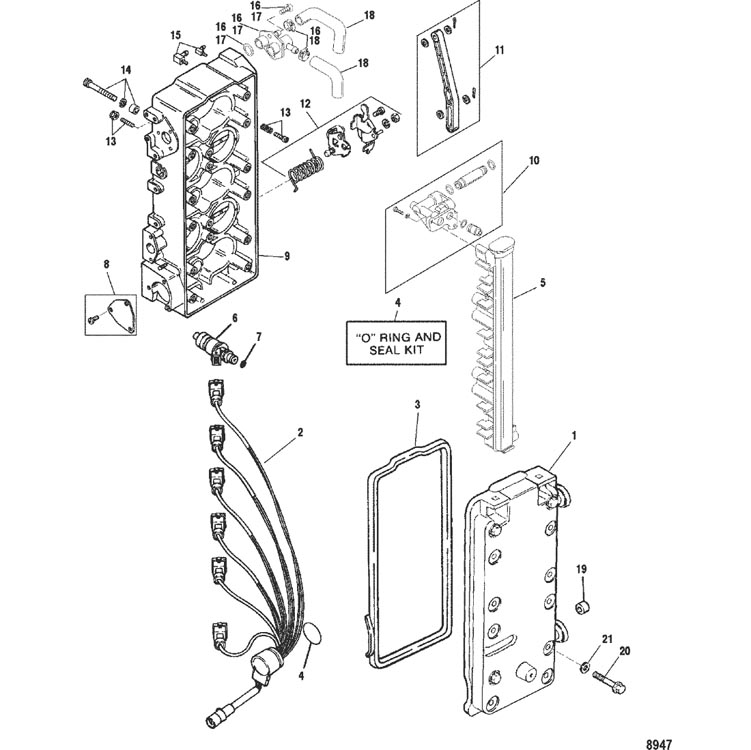

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Bleed System
- Cowling
- Crankshaft, Pistons and Connecting Rods
- Cylinder Block and End Caps
- Detonation Controller/Temperature Sensor
- Driveshaft Housing and Exhaust Tube
- ECU Assembly
- Exhaust Divider and Exhaust Plate
- Flywheel, Starter Motor and Ignition Coils
- Fuel management System(0G366999 and Below)
- Fuel Management System(0G366999 and Below)
- Fuel Management System(0G367000 and Up)
- Fuel Management System(0G367000 and Up)
- Fuel Pump(Aluminum Body)
- Fuel Pump(Plastic Body With Loose Fittings)
- Fuel Pump(Plastic Body With Molded Fittings)
- Gear Housing(Drive) Standard/Counter Rotation-SportMaster
- Gear Housing(Drive)Torque Master 1.87:1/2:1
- Gear Housing(Driveshaft)(1.78:1)
- Gear Housing(Driveshaft)(CLE-1.87:1/2:1)
- Gear Housing, Propeller Shaft - 1.78:1 Gear Ratio
- Gear Housing, Propeller Shaft - CLE-1.87:1/2:1 Gear Ratio
- Gear Housing, Propeller Shaft-Counter Rotation-Sportmaster
- Gear Housing, Propeller Shaft-Standard Rotation-Sportmaster
- Gear Housing, Propeller Shaft-Torque Master 1.87:1/2:1
- Instrumentation
- Key Switch
- Oil Injection Components
- Power Trim Components
- Power Trim Motor
- Reed Block and Cylinder Head
- Starter Motor
- Steering Attaching Kit
- Swivel Bracket and Steering Arm
- Throttle Lever and Shift Shaft
- Transom Brackets
- Trim Solenoid Plate(0G205106 and Below)
- Trim Solenoid Plate(0G205107 and Up)
- Wiring Harness and Starter Solenoid
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| - | 14817A31 | MANAGEMENT ASSEMBLY, Fuel | 1 | 14817A23 | No Longer Available | ||||
| 1 | 8276922 | COVER | 1 | No Longer Available | |||||
| 2 | 84-15443 | HARNESS KIT | 1 | ||||||
| 3 | 26-18792 | SEAL | 1 | ||||||
| 4 | 15029 | O-RING AND SEAL KIT | 1 | No Longer Available | |||||
| 5 | 827699T2 | FUEL RAIL | 1 | 8276992 | No Longer Available | ||||
| 6 | 18715T | INJECTOR, Fuel | 1 | 18715 | |||||
| 7 | 35-17422 | FILTER | 1 | ||||||
| 8 | 827696 | RETAINER KIT | 1 | No Longer Available | |||||
| 9 | 8276933 | THROTTLE BODY | 1 | No Longer Available | |||||
| 10 | 8090572 | JOINT KIT | 1 | No Longer Available | |||||
| 11 | 8276891 | LINK KIT | 1 | No Longer Available | |||||
| 12 | 827697 | LEVER KIT, Link | 1 | No Longer Available | |||||
| 13 | 10-827698 | SCREW KIT | 1 | ||||||
| 14 | 10-8276981 | SCREW KIT | 1 | No Longer Available | |||||
| 15 | 22-8090851 | ELBOW KIT | 1 | ||||||
| 16 | 814233A02 | SCHRADER VALVE KIT | 1 | 814233A1 | |||||
| 17 | 8142332 | FMA JOINT KIT | 1 | No Longer Available | |||||
| 18 | 32-827694A01 | HOSE KIT | 1 | 8276942 | |||||
| 19 | 67748 | ROLLER | 1 | ||||||
| 20 | 10-845674 | SCREW, (.250-20 x 4) | 10 | 90088 | |||||
| 21 | 12-29245 | WASHER, (.281 x .500 x .060) Stainless Steel | 10 |
