5.7L (2 BBL) GM 350 V-8 1996 - Serial 0F601000 Thru 0K001526 - Carburetor-Throttle Linkage (4 Barrel)
Other Sub-Sections:
- Alternator
- Audio Warning System
- Bodensee Parts
- Carburetor (Mercarb - 2 Barrel)
- Carburetor (Weber)
- Carburetor-Throttle Linkage (2 Barrel)
- Carburetor-Throttle Linkage (4 Barrel)
- Crankshaft And Flywheel
- Cyl. Block And Camshaft (5.7LX Alpha-Bravo)(350 Mag-Alpha)
- Cylinder Block And Camshaft (5.7L Alpha-Bravo)
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Driveshaft Extension Components (Jackshaft Models)
- Engine Mounting
- Exh. Manifold And Cast Iron Exh. Elbow (5.7L-5.7Lx Alpha)
- Exh. Manifold And S. Steel Exh Elbow (5.7L-5.7Lx Bravo`)
- Exhaust System
- Flywheel Housing
- Fuel Pump And Fuel Filter
- Gasket Set, Overhaul
- Intake Manifold And Front Cover
- Mercathode Components
- Oil Filter And Adaptor
- Oil Pan And Oil Pump
- Pistons And Connecting Rods
- Power Steering Components
- Sea Water Pump Assembly (Bravo Engines)
- Sea Water Pump Ass'Y (Closed Cooling Sys And Jackshaft Mdls)
- Shift Bracket (Alpha Engines)
- Shift Bracket (Bravo Engines)
- Standard Cooling System (5.7L-5.7Lx Alpha)
- Starter Motor
- Starter Motor And Alternator
- Std. Cooling System (5.7L-5.7Lx Bravo) (350 Magnum-Alpha)
- Wiring Harness And Electrical Components

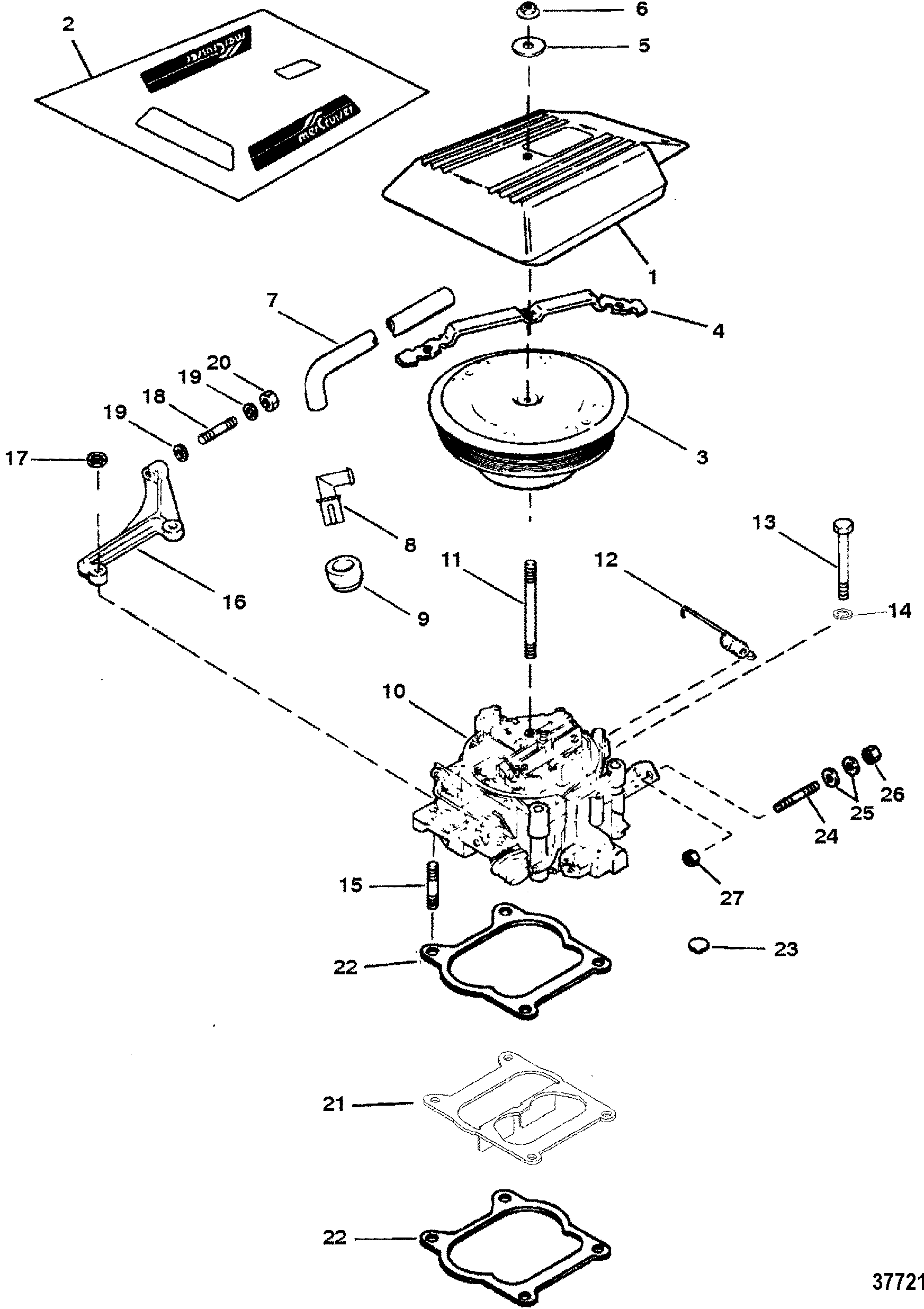

Ref. | OEM Part # | Hardin # | Mallory # | GLM # | SEI # | Description | Num Req. | Superceded From | Special Notes |
1 | 18484A3 | COVER | 1 | ||||||
2 | 37-812776A33 | DECAL SET | 1 | This Part is No Longer Available (5.7LX ALPHA/BRAVO) | |||||
2 | 37-812776A26 | DECAL SET | 1 | This Part is No Longer Available (350 MAGNUM ALPHA) | |||||
3 | 805298A1 | FLAME ARRESTOR | 1 | ||||||
4 | 805314 | RETAINER, Breather Hose | 1 | ||||||
5 | 12-86400 | WASHER | 1 | ||||||
6 | 11-826709109 | NUT, (.250-28) | 1 | 11-35045 | |||||
7 | 32-1589424 | HOSE, Breather | 2 | 32-1589418 | |||||
8 | 97850T | ELBOW, 90 Degree, Breather | 2 | 97850 | |||||
9 | 25-52188 | GROMMET | 2 | ||||||
10 | 3310-807262R02 | CARBURETOR | 1 | 3310-807262A2 | |||||
10 | 3310-806545A1 | CARBURETOR | 1 | This Part is No Longer Available (SWISS EMISSION BSO1 AND SAV1) | |||||
11 | 16-805296 | STUD, (4.50 Inch) | 1 | ||||||
12 | 24-897454 | SPRING | 1 | 24-32817 | |||||
13 | 10-74824 | SCREW, (.312-18 x 1.250) | 2 | ||||||
14 | 13-39107 | 700-21496 | LOCKWASHER, (.312-24) | 2 | |||||
15 | 16-70236 | 700-22482 | STUD, (.312 x 1.500) | 2 | |||||
16 | 805359T | BRACKET | 1 | ||||||
17 | 11-29250 | NUT, (.312-24) | 2 | ||||||
18 | 16-818192 | STUD | 1 | ||||||
19 | 12-24664 | WASHER, (M4 x 20) | 2 | ||||||
20 | 11-826709109 | NUT, (.250-28) | 1 | 11-35045 | |||||
21 | 807228A1 | SPACER | 1 | ||||||
22 | 27-524572 | GASKET | 2 | 5 | |||||
23 | 22-48358T | PLUG, (.375) | 1 | 22-48358 | |||||
24 | 16-96112 | STUD, (.250-28 x 2.00), Throttle Cable Anchor | 1 | ||||||
25 | 12-29245 | 602-98-262-25 | WASHER, (.281 x .500 x .060) Stainless Steel | 2 | |||||
26 | 11-8267089 | NUT, (.250-28) | 1 | 11-20361 | |||||
27 | 11-826709109 | NUT, (.250-28) | 1 | 11-35045 | |||||
- | 27-806871A96 | GASKET SET, Overhaul | 1 |
