5.7L (2 BBL) GM 350 V-8 1996 - Serial 0F601000 Thru 0K001526 - Mercathode Components
Other Sub-Sections:
- Alternator
- Audio Warning System
- Bodensee Parts
- Carburetor (Mercarb - 2 Barrel)
- Carburetor (Weber)
- Carburetor-Throttle Linkage (2 Barrel)
- Carburetor-Throttle Linkage (4 Barrel)
- Crankshaft And Flywheel
- Cyl. Block And Camshaft (5.7LX Alpha-Bravo)(350 Mag-Alpha)
- Cylinder Block And Camshaft (5.7L Alpha-Bravo)
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Driveshaft Extension Components (Jackshaft Models)
- Engine Mounting
- Exh. Manifold And Cast Iron Exh. Elbow (5.7L-5.7Lx Alpha)
- Exh. Manifold And S. Steel Exh Elbow (5.7L-5.7Lx Bravo`)
- Exhaust System
- Flywheel Housing
- Fuel Pump And Fuel Filter
- Gasket Set, Overhaul
- Intake Manifold And Front Cover
- Mercathode Components
- Oil Filter And Adaptor
- Oil Pan And Oil Pump
- Pistons And Connecting Rods
- Power Steering Components
- Sea Water Pump Assembly (Bravo Engines)
- Sea Water Pump Ass'Y (Closed Cooling Sys And Jackshaft Mdls)
- Shift Bracket (Alpha Engines)
- Shift Bracket (Bravo Engines)
- Standard Cooling System (5.7L-5.7Lx Alpha)
- Starter Motor
- Starter Motor And Alternator
- Std. Cooling System (5.7L-5.7Lx Bravo) (350 Magnum-Alpha)
- Wiring Harness And Electrical Components

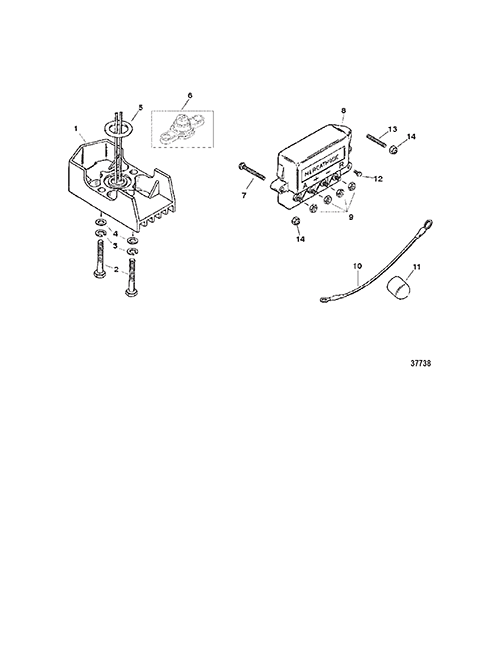

Ref # | Part Class | Part Number | Description | Comments | Qty | Note |
---|---|---|---|---|---|---|
1 | 0000 | 98869A11 | ELECTRODE ASSEMBLY | 1 | ||
2 | 0010 | OEM: 525-10-69067 | SCREW (.250-20 x 1.375) | 2 | ||
3 | 0013 | OEM: 525-13-26992 | LOCKWASHER (.250) Stainless Steel | 2 | ||
4 | 0012 | OEM: 525-12-29245, Sierra: 676-18-4275, GLM: 700-21490 | WASHER (.281 x .500 x .060) Stainless Steel | 2 | ||
5 | 0025 | 88388 | O-RING | (DESIGN I) | 1 | |
6 | 0025 | OEM: 525-25-805294 | GROMMET | (DESIGN II) | 1 | |
7 | 0010 | OEM: 525-10-72202, GLM: 700-22312 | SCREW (#10-32 x 1.25) | 1 | ||
7 | 0010 | OEM: 525-10-805565 | SCREW (#10-32 x .750) | 1 | ||
8 | 0000 | 42600A3 | CONTROLLER ASSEMBLY | 1 | ||
9 | 0011 | OEM: 525-11-68219 | NUT (#10-32) Stainless Steel | 4 | ||
10 | 0084 | OEM: 525-84-88543A3 | CABLE ASSEMBLY Grounding | 1 | ||
11 | 0000 | 44574 | CAP Anodic | 2 | ||
12 | 0010 | OEM: 525-10-62568 | SCREW (#10-16 x .375) | 1 | ||
13 | 0016 | OEM: 525-16-805459 | STUD Mercathode Mounting | 1 | ||
14 | 0011 | OEM: 525-11-46438 | NUT (#10-32) | 2 |
