5.7L (2 BBL) GM 350 V-8 1996 - Serial 0F601000 Thru 0K001526 - Exh. Manifold And S. Steel Exh Elbow (5.7L-5.7Lx Bravo`)

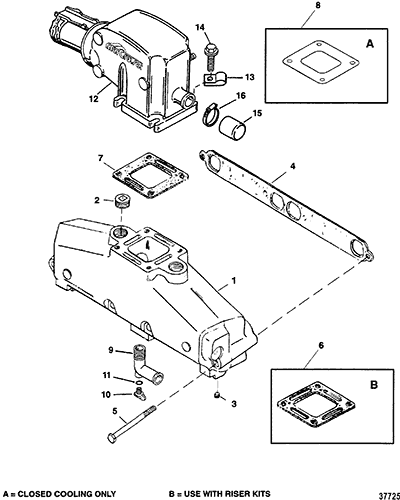

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator
- Audio Warning System
- Bodensee Parts
- Carburetor (Mercarb - 2 Barrel)
- Carburetor (Weber)
- Carburetor-Throttle Linkage (2 Barrel)
- Carburetor-Throttle Linkage (4 Barrel)
- Crankshaft And Flywheel
- Cyl. Block And Camshaft (5.7LX Alpha-Bravo)(350 Mag-Alpha)
- Cylinder Block And Camshaft (5.7L Alpha-Bravo)
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Driveshaft Extension Components (Jackshaft Models)
- Engine Mounting
- Exh. Manifold And Cast Iron Exh. Elbow (5.7L-5.7Lx Alpha)
- Exh. Manifold And S. Steel Exh Elbow (5.7L-5.7Lx Bravo`)
- Exhaust System
- Flywheel Housing
- Fuel Pump And Fuel Filter
- Gasket Set, Overhaul
- Intake Manifold And Front Cover
- Mercathode Components
- Oil Filter And Adaptor
- Oil Pan And Oil Pump
- Pistons And Connecting Rods
- Power Steering Components
- Sea Water Pump Assembly (Bravo Engines)
- Sea Water Pump Ass'Y (Closed Cooling Sys And Jackshaft Mdls)
- Shift Bracket (Alpha Engines)
- Shift Bracket (Bravo Engines)
- Standard Cooling System (5.7L-5.7Lx Alpha)
- Starter Motor
- Starter Motor And Alternator
- Std. Cooling System (5.7L-5.7Lx Bravo) (350 Magnum-Alpha)
- Wiring Harness And Electrical Components
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 860246A15 | MANIFOLD ASSEMBLY, Exhaust | 2 | 87114A19 | |||||
| 2 | 22-41622 | 676-9-41205 | 700-21892 | PLUG, (3/4-14) | AR | 22-33198A1 | 4 | ||
| 3 | 22-36382 | 700-21887 | FITTING, (.250-18 x .62) Brass | 4 | |||||
| 4 | 27-33395 | GASKET | 2 | 5 | |||||
| 5 | 10-53728 | SCREW, (.375-16 x 4.75) | 8 | ||||||
| 6 | 27-863726 | GASKET | 2 | 27-818832 | (USE WITH RISER KITS) | ||||
| 7 | 27-863724 | GASKET | 2 | 27-41813 | (STANDARD COOLING) 5 | ||||
| 8 | 27-8637251 | GASKET | 2 | 27-41811 | (CLOSED COOLING) 5 | ||||
| 9 | 22-862210A01 | 676-9-41206 | 700-13991 | ELBOW KIT, Drain | 2 | 22-806926A1 | |||
| 10 | 22-806608A02 | PLUG KIT, (.500-13) Royal Blue | 2 | 22-806608A1 | |||||
| 11 | 25-32509 | QUAD RING | 2 | 25-806609 | |||||
| 12 | 816900A5 | ELBOW ASSEMBLY, Exhaust | 1 | This Part is No Longer Available | |||||
| 12 | 816900A9 | ELBOW ASSEMBLY | 1 | This Part is No Longer Available | |||||
| 13 | 54-73668 | J-CLIP | 1 | (PORT) WITH REMOTE OIL FILTER | |||||
| 14 | 10-98534 | SCREW, (.375-16 x 2.30) | 2 | WITH REMOTE OIL FILTER | |||||
| 14 | 10-865982005 | SCREW, (.375-16 x 1.00) | 6 | 10-12244 | WITH REMOTE OIL FILTER | ||||
| 14 | 10-865982005 | SCREW, (.375-16 x 1.00) | 8 | 10-12244 | |||||
| 15 | 19-805727001 | CAP, Rubber | 2 | 19-805727 | |||||
| 16 | 54-815504220 | CLAMP, Worm Gear | 2 | ||||||
| - | 807476A7 | RISER KIT, Exhaust (3.00 Inch) | 1 | 93320A7 | EACH KIT CONTAINS 2 RISERS | ||||
| - | 807477A5 | RISER KIT, Exhaust (6.00 Inch) | 1 | 93322A5 | EACH KIT CONTAINS 2 RISERS | ||||
| - | 27-806871A96 | GASKET SET, Overhaul | 1 |
