| Ref. |
OEM Part # |
Hardin # |
Mallory # |
GLM # |
Other # |
Description |
Num Req. |
Superceded From |
Special Notes |

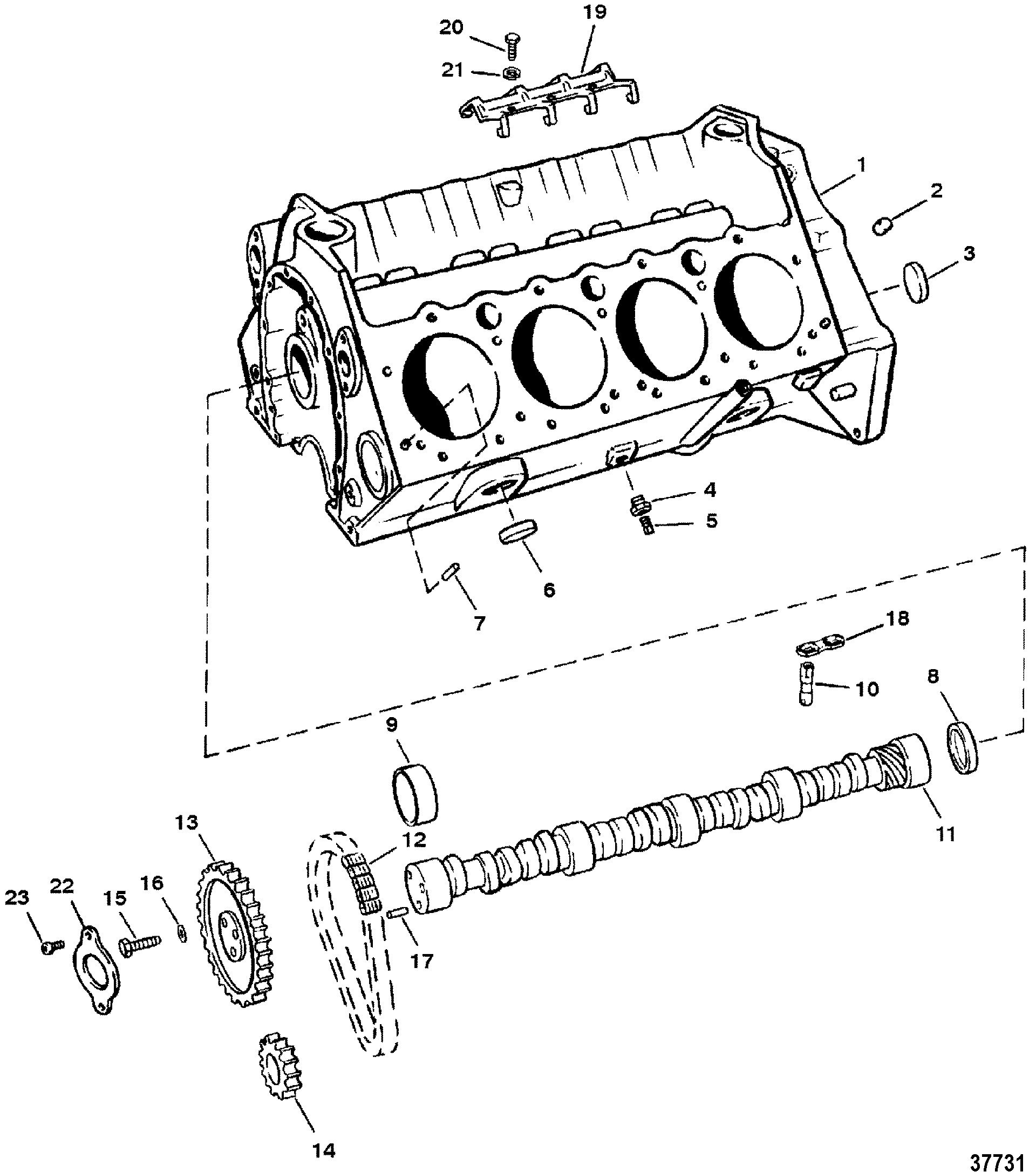

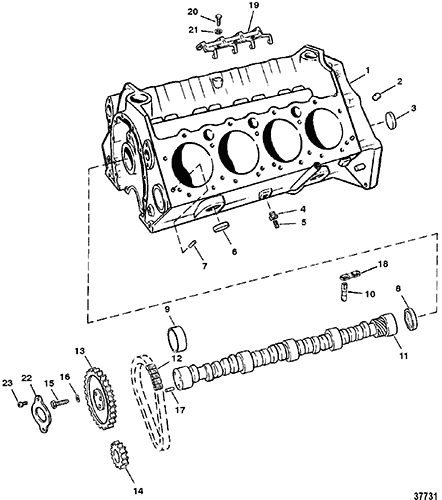

| 1 |
N.S.S. |
|
|
|
|
Not Sold Separate, CYLINDER BLOCK ASSEMBLY |
1 |
|
(ORDER REMANUFACTURED LONG BLOCK 807447R2) |
| 2 |
22-48340 |
|
|
|
|
PLUG, (.250-18 x .41) |
3 |
|
|
| 3 |
19-816565 |
|
|
|
|
PLUG, Pipe(.468) |
5 |
|
|
| 4 |
22-48556 |
|
|
|
|
BUSHING , Reducer (.250 To .125) |
2 |
|
|
| 5 |
22-328022 |
|
|
|
|
PLUG, Pipe (.125-27) |
2 |
22-32802 |
|
| 6 |
19-34270 |
|
|
|
|
EXPANSION PLUG, (1.625) |
8 |
|
|
| 7 |
17-35465 |
|
|
|
|
PIN, Dowel (.312) |
4 |
|
|
| 8 |
22-72640 |
|
|
|
|
PLUG, Expansion |
1 |
|
|
| 9 |
23-85674 |
|
|
|
|
BEARING SET (SET) |
1 |
|
|
| 10 |
17340T |
|
|
|
|
LIFTER |
16 |
17340 |
|
| 11 |
431-811658 |
|
|
|
|
CAMSHAFT |
1 |
|
|
| 12 |
11985 |
|
|
|
|
TIMING CHAIN |
1 |
|
This Part is No Longer Available |
| 13 |
43-811659 |
|
|
|
|
SPROCKET |
1 |
|
This Part is No Longer Available |
| 14 |
43-42755T |
|
|
|
|
SPROCKET |
1 |
43-42755 |
This Part is No Longer Available |
| 15 |
10-34505 |
|
|
|
|
SCREW, (.312-18 x .875) |
3 |
|
|
| 16 |
12-848136 |
|
|
|
|
WASHER, (.328 x .680 x .190) |
3 |
|
|
| 17 |
17-843378 |
|
|
|
|
PIN, Dowel (1/4 n. Diameter) |
1 |
17-35312 |
|
| 18 |
17341T |
|
|
|
|
GUIDE, Lifter |
8 |
17341 |
|
| 19 |
811662 |
|
|
|
|
RETAINER, Lifter Guide |
1 |
|
|
| 20 |
10-34500 |
|
|
|
|
SCREW, (.312-18 x .625) |
3 |
|
|
| 21 |
12-811664 |
|
|
|
|
WASHER, (.3125 Inch) |
3 |
|
This Part is No Longer Available |
| 22 |
845941 |
|
|
|
|
RETAINER |
1 |
811663 |
|
| 23 |
10-17343 |
|
|
|
|
SCREW, (.250-20 x .500) |
2 |
|
No longer made, limited availability |
| - |
807447R5 |
|
|
|
|
LONGBLOCK ASSEMBLY (350 C.I.D.) |
1 |
807447R2 |
|
| - |
27-75611A88 |
|
|
700-39017 |
|
GASKET SET, Engine |
1 |
|
|
| - |
92-809826 |
|
|
|
|
SEALER, Red RTV (WHERE APPLICABLE) |
1 |
92-916011 |
|
| - |
34227Q02 |
|
|
|
|
SEALING COMPOUND, (16 Ounce) (WHERE APPLICABLE) |
1 |
92-342271 |
|
