5.7L (2 BBL) GM 350 V-8 1996 - Serial 0F601000 Thru 0K001526 - Cylinder Block And Camshaft (5.7L Alpha-Bravo)

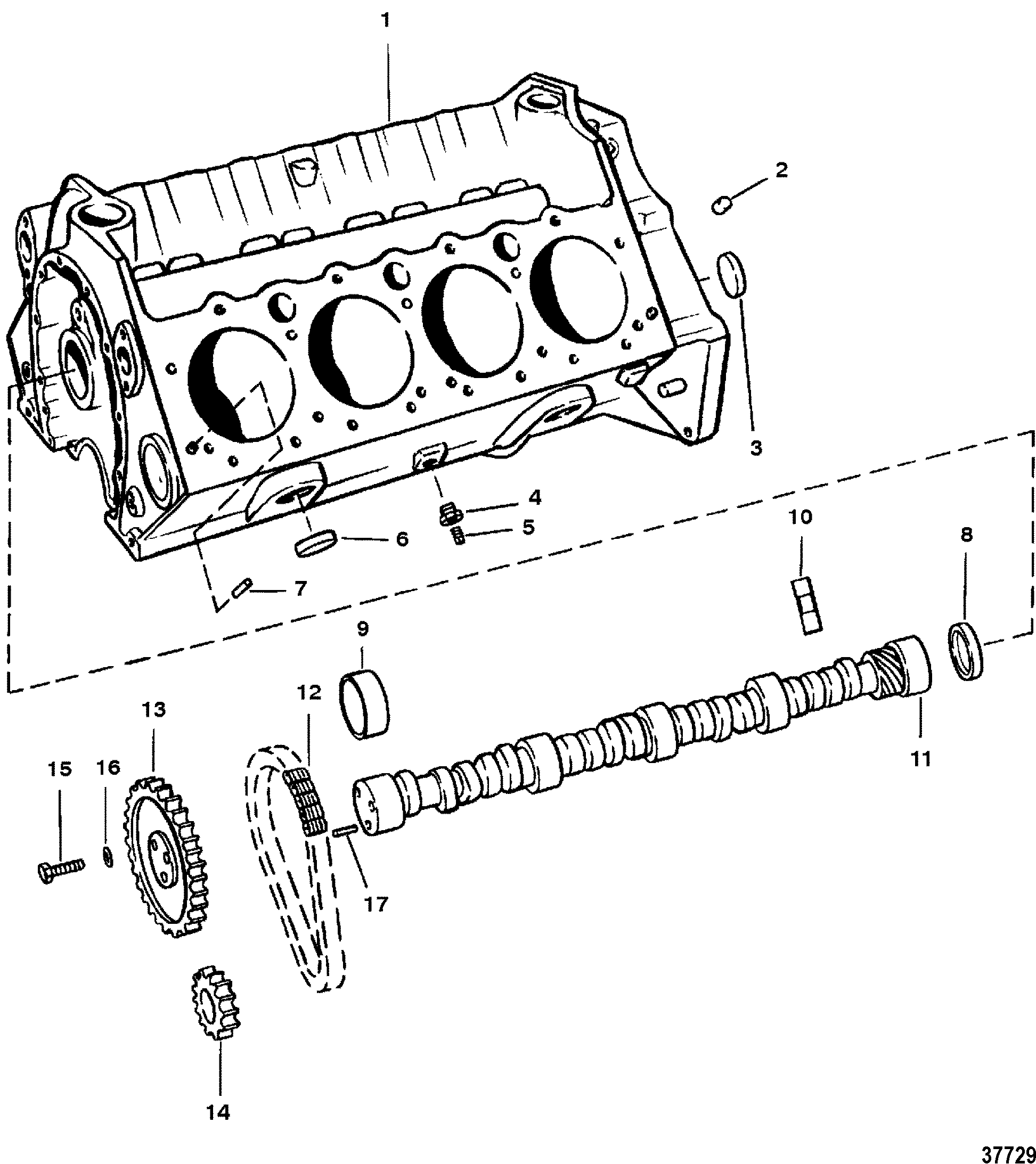

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator
- Audio Warning System
- Bodensee Parts
- Carburetor (Mercarb - 2 Barrel)
- Carburetor (Weber)
- Carburetor-Throttle Linkage (2 Barrel)
- Carburetor-Throttle Linkage (4 Barrel)
- Crankshaft And Flywheel
- Cyl. Block And Camshaft (5.7LX Alpha-Bravo)(350 Mag-Alpha)
- Cylinder Block And Camshaft (5.7L Alpha-Bravo)
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Driveshaft Extension Components (Jackshaft Models)
- Engine Mounting
- Exh. Manifold And Cast Iron Exh. Elbow (5.7L-5.7Lx Alpha)
- Exh. Manifold And S. Steel Exh Elbow (5.7L-5.7Lx Bravo`)
- Exhaust System
- Flywheel Housing
- Fuel Pump And Fuel Filter
- Gasket Set, Overhaul
- Intake Manifold And Front Cover
- Mercathode Components
- Oil Filter And Adaptor
- Oil Pan And Oil Pump
- Pistons And Connecting Rods
- Power Steering Components
- Sea Water Pump Assembly (Bravo Engines)
- Sea Water Pump Ass'Y (Closed Cooling Sys And Jackshaft Mdls)
- Shift Bracket (Alpha Engines)
- Shift Bracket (Bravo Engines)
- Standard Cooling System (5.7L-5.7Lx Alpha)
- Starter Motor
- Starter Motor And Alternator
- Std. Cooling System (5.7L-5.7Lx Bravo) (350 Magnum-Alpha)
- Wiring Harness And Electrical Components
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | N.S.S. | Not Sold Separate, CYLINDER BLOCK ASSEMBLY | 1 | (305 C.I.D.) (ORDER REMANUFACTURED LONG BLOCK 805636R2) SN# 350 Mag/5.7L Bravo 0D617327 & Below 2 | |||||
| 1 | N.S.S. | Not Sold Separate, CYLINDER BLOCK ASSEMBLY | 1 | (350 C.I.D.) (ORDER REMANUFACTURED LONG BLOCK 14152R2) 2 | |||||
| 2 | 22-48340 | PLUG, (.250-18 x .41) | 3 | ||||||
| 3 | 19-816565 | PLUG, Pipe(.468) | 5 | ||||||
| 4 | 22-48556 | BUSHING , Reducer (.250 To .125) | 2 | ||||||
| 5 | 22-328022 | PLUG, Pipe (.125-27) | 2 | 22-32802 | |||||
| 6 | 19-34270 | EXPANSION PLUG, (1.625) | 8 | ||||||
| 7 | 17-35465 | PIN, Dowel (.312) | 4 | ||||||
| 8 | 22-72640 | PLUG, Expansion | 1 | ||||||
| 9 | 23-85674 | BEARING SET (SET) | 1 | ||||||
| 10 | 72638 | LIFTER | 16 | ||||||
| 11 | 431-5943 | CAMSHAFT | 1 | ||||||
| 12 | 17161T | CHAIN, Timing | 1 | 17161 | |||||
| 13 | 43-17159 | SPROCKET | 1 | This Part is No Longer Available | |||||
| 14 | 43-17160 | SPROCKET, Crankshaft | 1 | ||||||
| 15 | 10-34505 | SCREW, (.312-18 x .875) | 3 | ||||||
| 16 | 12-848136 | WASHER, (.328 x .680 x .190) | 3 | ||||||
| 17 | 17-843378 | PIN, Dowel (1/4 n. Diameter) | 1 | 17-35312 | |||||
| - | 805636R5 | LONG BLOCK ASSEMBLY | 1 | 805636R2 | (305 C.I.D.) | ||||
| - | 883944R5 | LONGBLOCK ASSEMBLY | 1 | 14152R2 | (350 C.I.D.) | ||||
| - | 27-75611A88 | 700-39017 | GASKET SET, Engine | 1 | |||||
| - | 92-809826 | SEALER, Red RTV (WHERE APPLICABLE) | 1 | 92-916011 | |||||
| - | 34227Q02 | SEALING COMPOUND, (16 Ounce) (WHERE APPLICABLE) | 1 | 92-342271 |
