5.7L (2 BBL) GM 350 V-8 1996 - Serial 0F601000 Thru 0K001526 - Sea Water Pump Assembly (Bravo Engines)

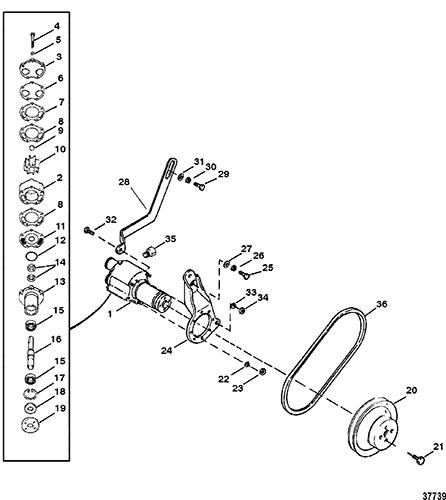

Section Drawing: (Hover or click to view larger)

Other Sub-Sections:

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # SEI # Description Num Req. Superceded From Special Notes
1 46-807151A12



PUMP ASSEMBLY, Sea Water - Complete 1 46-72774A50
2 46-807151A14



BODY/IMPELLER KIT 1

3 87631A4



COVER KIT 1

4 10-73275



SCREW, (.312-18 x 2.88) 2

4 10-99347



SCREW, (.312-18 x 3.75) 3

5 12-20084



WASHER, (.328 x .562 x .062) 5

6 27-8052151



GASKET 1

7 94916



WEAR PLATE 1

8 27-94914

700-32730
GASKET 2

9 19-59504



PLUG 1

10 47-59362T1 625-4011 676-9-45375 700-89740
IMPELLER 1 47-593621
NS 8M0032837



KEY (USE WHERE APPLICABLE) 1 28-56662
11 94576



WEAR PLATE 1

12 25-94288



QUAD RING 1

13 46-94913A2



HOUSING ASSEMBLY, Water Pump 1

14 26-90562
676-9-76107 700-85080 602-94-264-01 SEAL, (1.254 x .312) 2

15 30-72961



BEARING, Ball 2

16 59501A1



SHAFT 1

17 53-23720



RING, Retaining 1

18 26-72785



SEAL 1

19 47530



HUB 1

20 52822T



PULLEY 1

21 10-47277



SCREW, (.312-24 x .750) 4

NS 13-39107

700-21496
LOCKWASHER, (.312-24) 4

22 13-39107

700-21496
LOCKWASHER, (.312-24) 3

23 11-21908



NUT, (.312-18) Cad Plated 3

24 89535T1



BRACKET 1

25 10-34353



SCREW, (.375-16 x 1.00) 2

26 13-35048



LOCKWASHER, (.375) 2

27




WASHER 1

28 896091



BRACE 1

29 10-34353



SCREW, (.375-16 x 1.00) 1

30 13-35048



LOCKWASHER, (.375) 1

31




WASHER 1

32 10-35786



SCREW, (.375-24 x 1.00) 1

33 13-35048



LOCKWASHER, (.375) 1

34 11-46335



NUT, (.375-24) 1

35 22-328022



PLUG, Pipe (.125-27) (FOR WATER PUMP BODY) 1 22-32802
36 57-13457Q



BELT 1 57-13457T
