5.7L (2 BBL) GM 350 V-8 1996 - Serial 0F601000 Thru 0K001526 - Engine Mounting

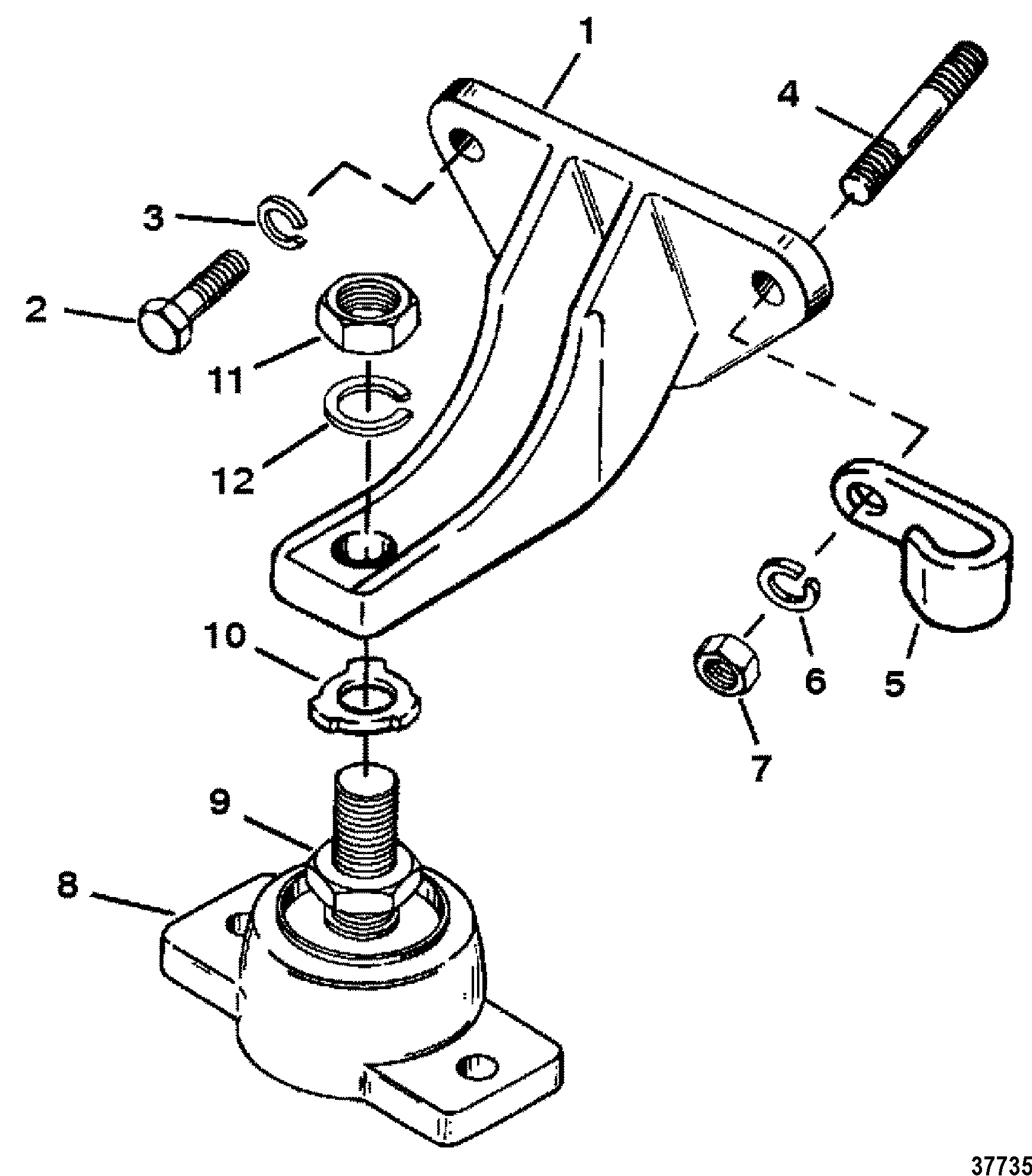

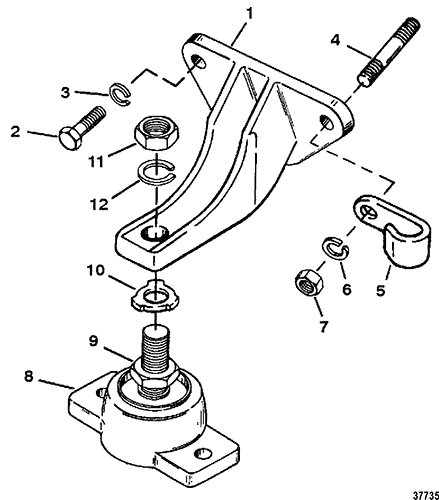

Section Drawing: (Hover or click to view larger)

Other Sub-Sections:

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 79550A1



BRACKET (FRONT) 2

2 10-68101



SCREW, (.375-16 x 1.375) 3
PORT
3 13-35048

700-21495
LOCKWASHER, (.375) 3
PORT
2 10-68101



SCREW, (.375-16 x 1.375) 2
STARBOARD
3 13-35048

700-21495
LOCKWASHER, (.375) 2
STARBOARD
4 16-64066



STUD, (.375-16 x 2.750) Special 1
STARBOARD
5 54-78945



J CLAMP, Harness Support 1
STARBOARD
6 13-35048

700-21495
LOCKWASHER, (.375) 1
STARBOARD
7 11-32219



NUT, (.375-16) 1
STARBOARD
8 66284A2



BASE ASSEMBLY 2
305 C.I.D./350 C.I.D.
9 11-20739



NUT, (.750-16) 2
305 C.I.D./350 C.I.D.
10 14-12657



TAB WASHER 2
305 C.I.D./350 C.I.D.
11 11-20739



NUT, (.750-16) 2
305 C.I.D./350 C.I.D.
12 13-68102



LOCKWASHER, (.750) 2
305 C.I.D./350 C.I.D.
8 814263A1



BASE ASSEMBLY 2
5.7L BRAVO/350 MAGNUM 5.0L BRAVO
9 11-816331



NUT, (.750-16) 2
5.7L BRAVO/350 MAGNUM 5.0L BRAVO
10 14-12657



TAB WASHER 2
5.7L BRAVO/350 MAGNUM 5.0L BRAVO
11 11-859126



NUT 2 11-49252 5.7L BRAVO/350 MAGNUM 5.0L BRAVO
12 13-68102



LOCKWASHER, (.750) 2
5.7L BRAVO/350 MAGNUM 5.0L BRAVO
