5.7L (2 BBL) GM 350 V-8 1996 - Serial 0F601000 Thru 0K001526 - Crankshaft And Flywheel

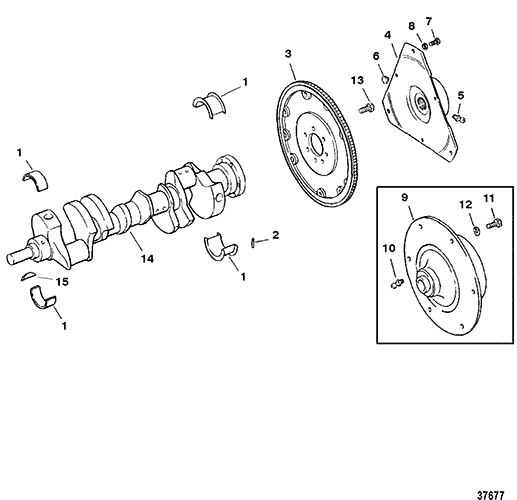

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator
- Audio Warning System
- Bodensee Parts
- Carburetor (Mercarb - 2 Barrel)
- Carburetor (Weber)
- Carburetor-Throttle Linkage (2 Barrel)
- Carburetor-Throttle Linkage (4 Barrel)
- Crankshaft And Flywheel
- Cyl. Block And Camshaft (5.7LX Alpha-Bravo)(350 Mag-Alpha)
- Cylinder Block And Camshaft (5.7L Alpha-Bravo)
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Driveshaft Extension Components (Jackshaft Models)
- Engine Mounting
- Exh. Manifold And Cast Iron Exh. Elbow (5.7L-5.7Lx Alpha)
- Exh. Manifold And S. Steel Exh Elbow (5.7L-5.7Lx Bravo`)
- Exhaust System
- Flywheel Housing
- Fuel Pump And Fuel Filter
- Gasket Set, Overhaul
- Intake Manifold And Front Cover
- Mercathode Components
- Oil Filter And Adaptor
- Oil Pan And Oil Pump
- Pistons And Connecting Rods
- Power Steering Components
- Sea Water Pump Assembly (Bravo Engines)
- Sea Water Pump Ass'Y (Closed Cooling Sys And Jackshaft Mdls)
- Shift Bracket (Alpha Engines)
- Shift Bracket (Bravo Engines)
- Standard Cooling System (5.7L-5.7Lx Alpha)
- Starter Motor
- Starter Motor And Alternator
- Std. Cooling System (5.7L-5.7Lx Bravo) (350 Magnum-Alpha)
- Wiring Harness And Electrical Components
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 23-818465 | BEARING SET, 5 Pair | 1 | (STANDARD) | |||||
| 1 | 23-818466 | BEARING SET, 5 Pair | AR | (.001 USA) 3 | |||||
| 1 | 23-818467 | BEARING SET, 5 Pair | AR | (.010 USA) 3 | |||||
| 1 | 23-818468 | BEARING SET, 5 Pair | AR | (.020 USA) 3 | |||||
| 2 | 17-843378 | PIN, Dowel (1/4 n. Diameter) (1/4 IN. DIA.) | 2 | 17-35312 | |||||
| 3 | 8M0047213 | FLYWHEEL | 1 | 222-9520 | |||||
| 4 | 18643A7 | 700-11530 | COUPLING | 1 | SN# 0F000000 & Below | ||||
| 4 | 18643A5 | 676-9-72507 | 700-11532 | COUPLING ASSEMBLY | 1 | SN# 0F000001 & Up | |||
| 5 | 22-74036 | FITTING, Grease | 1 | ALPHA | |||||
| 6 | 269011 | BUMPER | 3 | 26901 | (OLD DESIGN) ALPHA | ||||
| 6 | 18644 | BUMPER, Rubber | 3 | (NEW DESIGN) ALPHA | |||||
| 7 | 10-14883 | SCREW, (.375-16 x 1.12) | 3 | ALPHA | |||||
| 8 | 12-13510 | WASHER | 3 | ALPHA | |||||
| 9 | 861523A9 | 676-9-72503 | 525-861523A9 | COUPLER ASSEMBLY, Engine | 1 | 18311A17 | BRAVO | ||
| 10 | 22-49099 | FITTING | 2 | BRAVO | |||||
| 11 | 10-14883 | SCREW, (.375-16 x 1.12) | 6 | BRAVO | |||||
| 12 | 12-20572 | WASHER, (.390 x .750 x .093) | 6 | BRAVO | |||||
| 13 | 10-845757 | SCREW, (.437-20 x 1.00) | 6 | 10-49845 | |||||
| 14 | 429-8M0054508 | CRANKSHAFT | 1 | 429-9519 | (305 C.I.D.) | ||||
| 14 | 429-9521T | CRANKSHAFT | 1 | 429-9521 | This Part is No Longer Available (350 C.I.D.) | ||||
| 15 | 28-34466 | KEY | 2 |
