5.7L (2 BBL) GM 350 V-8 1996 - Serial 0F601000 Thru 0K001526 - Exh. Manifold And Cast Iron Exh. Elbow (5.7L-5.7Lx Alpha)
Other Sub-Sections:
- Alternator
- Audio Warning System
- Bodensee Parts
- Carburetor (Mercarb - 2 Barrel)
- Carburetor (Weber)
- Carburetor-Throttle Linkage (2 Barrel)
- Carburetor-Throttle Linkage (4 Barrel)
- Crankshaft And Flywheel
- Cyl. Block And Camshaft (5.7LX Alpha-Bravo)(350 Mag-Alpha)
- Cylinder Block And Camshaft (5.7L Alpha-Bravo)
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Driveshaft Extension Components (Jackshaft Models)
- Engine Mounting
- Exh. Manifold And Cast Iron Exh. Elbow (5.7L-5.7Lx Alpha)
- Exh. Manifold And S. Steel Exh Elbow (5.7L-5.7Lx Bravo`)
- Exhaust System
- Flywheel Housing
- Fuel Pump And Fuel Filter
- Gasket Set, Overhaul
- Intake Manifold And Front Cover
- Mercathode Components
- Oil Filter And Adaptor
- Oil Pan And Oil Pump
- Pistons And Connecting Rods
- Power Steering Components
- Sea Water Pump Assembly (Bravo Engines)
- Sea Water Pump Ass'Y (Closed Cooling Sys And Jackshaft Mdls)
- Shift Bracket (Alpha Engines)
- Shift Bracket (Bravo Engines)
- Standard Cooling System (5.7L-5.7Lx Alpha)
- Starter Motor
- Starter Motor And Alternator
- Std. Cooling System (5.7L-5.7Lx Bravo) (350 Magnum-Alpha)
- Wiring Harness And Electrical Components

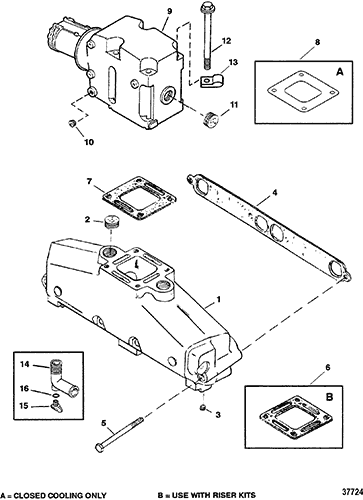

Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
1 | 860246A15 | MANIFOLD ASSEMBLY, Exhaust | 2 | 87114A19 | |||||
2 | 22-41622 | 676-9-41205 | 700-21892 | PLUG, (3/4-14) | 8 | 22-33198A1 | |||
3 | 22-36382 | 700-21887 | FITTING, (.250-18 x .62) Brass | 4 | |||||
4 | 27-33395 | GASKET | 2 | 5 | |||||
5 | 10-53728 | SCREW, (.375-16 x 4.75) | 8 | ||||||
6 | 27-863726 | GASKET | 2 | 27-818832 | (USE WITH RISER KITS) | ||||
7 | 27-863724 | GASKET | 2 | 27-41813 | (STANDARD COOLING) 5 | ||||
8 | 27-8637251 | GASKET | 2 | 27-41811 | (CLOSED COOLING) 5 | ||||
9 | 807988A03 | ELBOW ASSEMBLY, Exhaust | 2 | 807914A1 | |||||
9 | 807988A03 | ELBOW ASSEMBLY, Exhaust | 1 | 44354A10 | (PORT) SWISS EMISSIONS BSO1 AND SAV1 | ||||
9 | 807988A03 | ELBOW ASSEMBLY, Exhaust | 1 | 44354A9 | (STARBOARD) SWISS EMISSIONS BSO1 AND SAV1 | ||||
10 | 22-36382 | 700-21887 | FITTING, (.250-18 x .62) Brass | 2 | |||||
11 | 22-41622 | 676-9-41205 | 700-21892 | PLUG, (3/4-14) | 2 | 22-33198A1 | |||
12 | 10-43749 | SCREW, (.375-16 x 5.750) | 8 | ||||||
12 | 10-43749 | SCREW, (.375-16 x 5.750) | 6 | USE WITH REMOTE OIL FILTER | |||||
12 | 10-44387 | SCREW, (.376-16 x 6.750) | 2 | USE WITH REMOTE OIL FILTER | |||||
13 | 54-73668 | J-CLIP | 1 | ||||||
14 | 22-862210A01 | 676-9-41206 | 700-13991 | ELBOW KIT, Drain | 2 | 22-806926A1 | |||
15 | 22-806608A02 | PLUG KIT, (.500-13) Royal Blue | 2 | 22-806608A1 | |||||
16 | 25-32509 | QUAD RING | 2 | 25-806609 | |||||
- | 93320A13 | RISER KIT, Exhaust Elbow (3 In.) (3") | 1 | 93320A3 | EACH KIT CONTAINS 2 RISERS | ||||
- | 93322A12 | RISER KIT, Exhaust Elbow (6 In.) (6") | 1 | 93322A6 | EACH KIT CONTAINS 2 RISERS | ||||
- | 27-806871A96 | GASKET SET, Overhaul | 1 |
