850 SCi - Serial 0M952900 Thru 0M956316 - Alternator And Sea Water Pump Mounting (Design I)

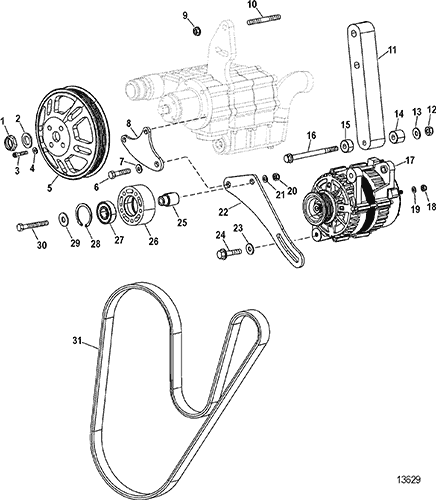

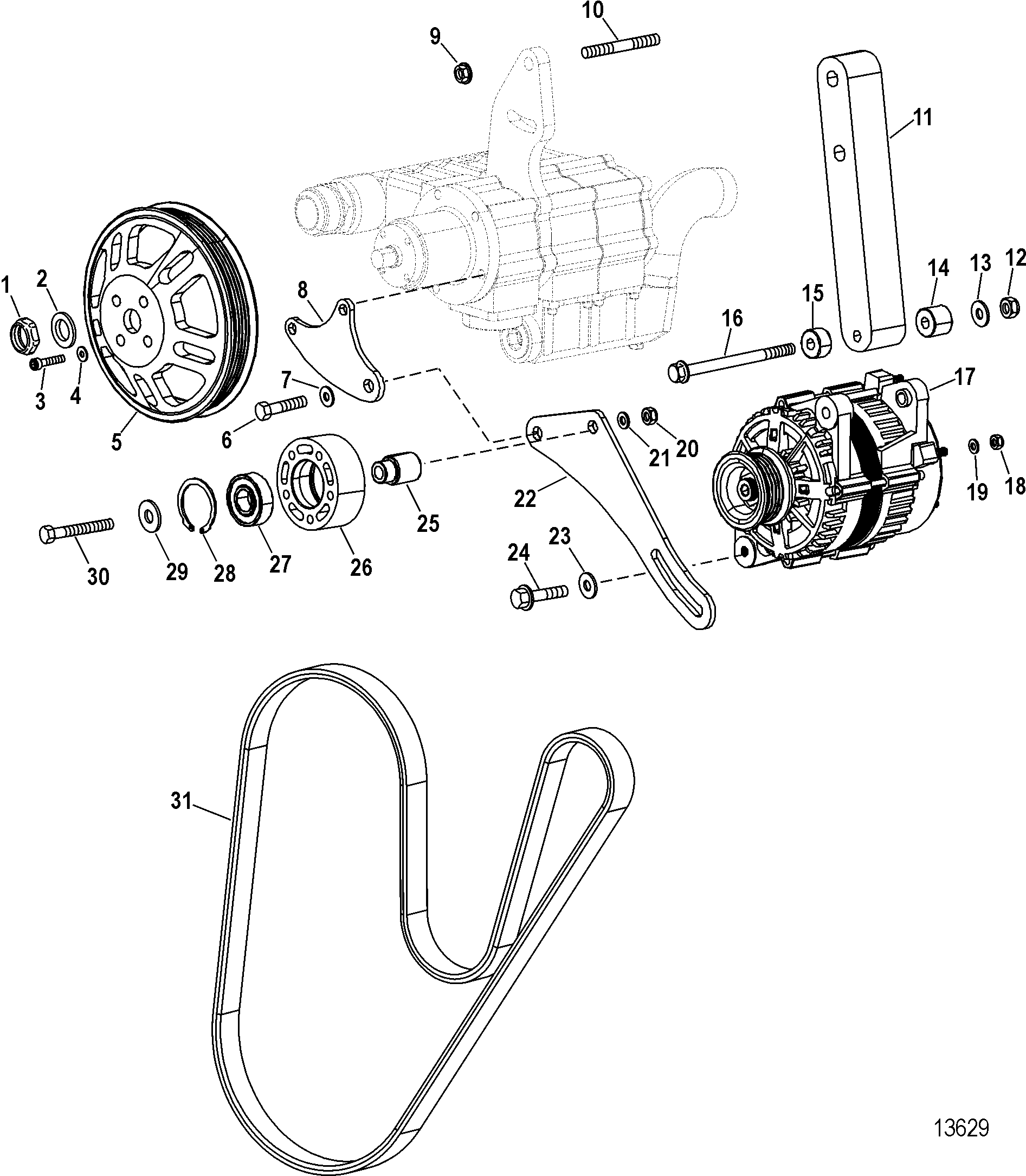

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator And Sea Water Pump Mounting (Design I)
- Alternator And Sea Water Pump Mounting (Design II)
- Cooling (Water Hoses And Fittings - Port)
- Cooling (Water Hoses And Fittings - Starboard)
- Cooling Components (Sea Water Pump - Design I)
- Cooling Components (Sea Water Pump - Design II)
- Cooling Components (Water Thermostat Housing)
- Electrical Components (Ignition Coils)
- Electrical Components (Mounting Box)
- Electrical Components (Starter)
- Electrical Components (Wiring)
- Engine Components (Crankshaft - Pistons - Connecting Rods)
- Engine Components (Cylinder Block)
- Engine Components (Cylinder Head)
- Engine Components (Front Cover And Camshaft)
- Engine Components (Water Inlet And Drive Belt)
- Engine Components (Water Pump)
- Filter Kit (Remote) (Water - Fuel Separating)
- Flywheel Housing And Components
- Fuel Line Components (Design I)
- Fuel Line Components (Design II)
- Fuel Pump (Remote)
- Fuse Harness Kit (879365A20)
- Gasket-Seal Set - Engine Overhaul (27-842593A01)
- Intake Components (Air Plenum And Flame Arrestor)
- Intake Components (Boost Valve)
- Intake Components (Manifold)
- Intake Components (Supercharger)
- Intake Components (Water Intercooler)
- Mount Plates (Engine)(Design I)
- Mount Plates (Engine)(Design II)
- Oil Cooler - Transmission
- Oil Filter Adaptor And Components
- Oil Hoses And Fittings (Port Side View)
- Oil Hoses And Fittings (Starboard Side View)
- Oil Pan And Oil Pump
- Oil Tank And Breather Assembly (Remote)
- Power-Assisted Steering Components (Design I)
- Power-Assisted Steering Components (Design II)
- Power-Assisted Steering Components (Design III)
- Power-Assisted Steering Components (Design IV)
- Reservoir Bottle (Transmission Fluid)
- Rigging Kit (Dual Engines)
- Rigging Kit (Quad Engines)
- Rigging Kit (Single Engine)
- Tool List (Special - Engine)
- Transmission (BAM Driveline Models)
- Transmission (BAM Plug In Models)
- Transmission (HUBER Driveline Models)
- Transmission (HUBER Plug In Models)
- Transmission Components (Plug In Models)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 11-826709121 | NUT, (.625-18) Stainless Steel | 1 | ||||||
| 2 | 12-840030 | WASHER, (.660 x 1.120 x .135) | 1 | ||||||
| 3 | 10-849377 | SCREW, (.312-24 x .750) Stainless Steel | 4 | ||||||
| 4 | 12-70132 | WASHER, (.323 x .563 x .063) Stainless Steel | 4 | ||||||
| 5 | 8M0050955 | PULLEY, Sea Water Pump - Blue | 1 | 842588001 | |||||
| 6 | 10-65210 | SCREW, (.375-16 x 1.00) | 1 | ||||||
| 7 | 12-856774 | WASHER, (.406 x .750 x .105) Stainless Steel | 1 | ||||||
| 8 | 841855 | BRACKET, Sea Water Pump Mounting | 1 | ||||||
| 9 | 11-859135 | NUT, (.437-20) Brass/Nickel Plated | 2 | ||||||
| 10 | 16-579203 | STUD, (.437-14/.437-20 x 2.060) | 2 | ||||||
| 11 | 842890 | BRACKET, Alternator Pivot | 1 | ||||||
| 12 | 11-401368 | NUT, (M8) | 1 | 11-400265 | |||||
| 13 | 12-70132 | WASHER, (.323 x .563 x .063) Stainless Steel | 1 | ||||||
| 14 | 23-842358 | SPACER | 1 | ||||||
| 15 | 23-842868 | SPACER | 1 | ||||||
| 16 | 10-824459110 | SCREW, (M8 x 110) Stainless Steel | 1 | ||||||
| 17 | 863077T02 | ALTERNATOR ASSEMBLY, Blue, Service Complete | 1 | ||||||
| 18 | 11-401386 | NUT, (M6) Stainless Steel | 2 | ||||||
| 19 | 12-846673 | WASHER, (.265 x .500 x .060) Stainless Steel | 2 | ||||||
| 20 | 11-82670912 | NUT, (.375-16) Stainless Steel | 1 | ||||||
| 21 | 12-856774 | WASHER, (.406 x .750 x .105) Stainless Steel | 1 | ||||||
| 22 | 840007 | BRACKET, Alternator Tensioner | 1 | ||||||
| 23 | 12-63032 | WASHER, (.320 x 1.00 x .120) Stainless Steel | 1 | ||||||
| 24 | 10-40011149 | SCREW, (M8 x 25) Stainless Steel | 1 | ||||||
| 25 | 17-843848 | PIN, Idler | 1 | ||||||
| 26 | 8M0050958 | PULLEY ASSEMBLY, Blue | 1 | 843845A02 | |||||
| 27 | 30-33451 | BEARING, Ball | 1 | ||||||
| 28 | 53-18917 | RING, Retaining | 1 | ||||||
| 29 | 12-74759 | WASHER, (.391 x .880 x .125) Stainless Steel | 1 | ||||||
| 30 | 10-95802 | SCREW, (.375-16 x 2.750) Stainless Steel | 1 | ||||||
| 31 | 57-842648Q | BELT, Serpentine | 1 | 57-842648 |
