850 SCi - Serial 0M952900 Thru 0M956316 - Engine Components (Cylinder Head)

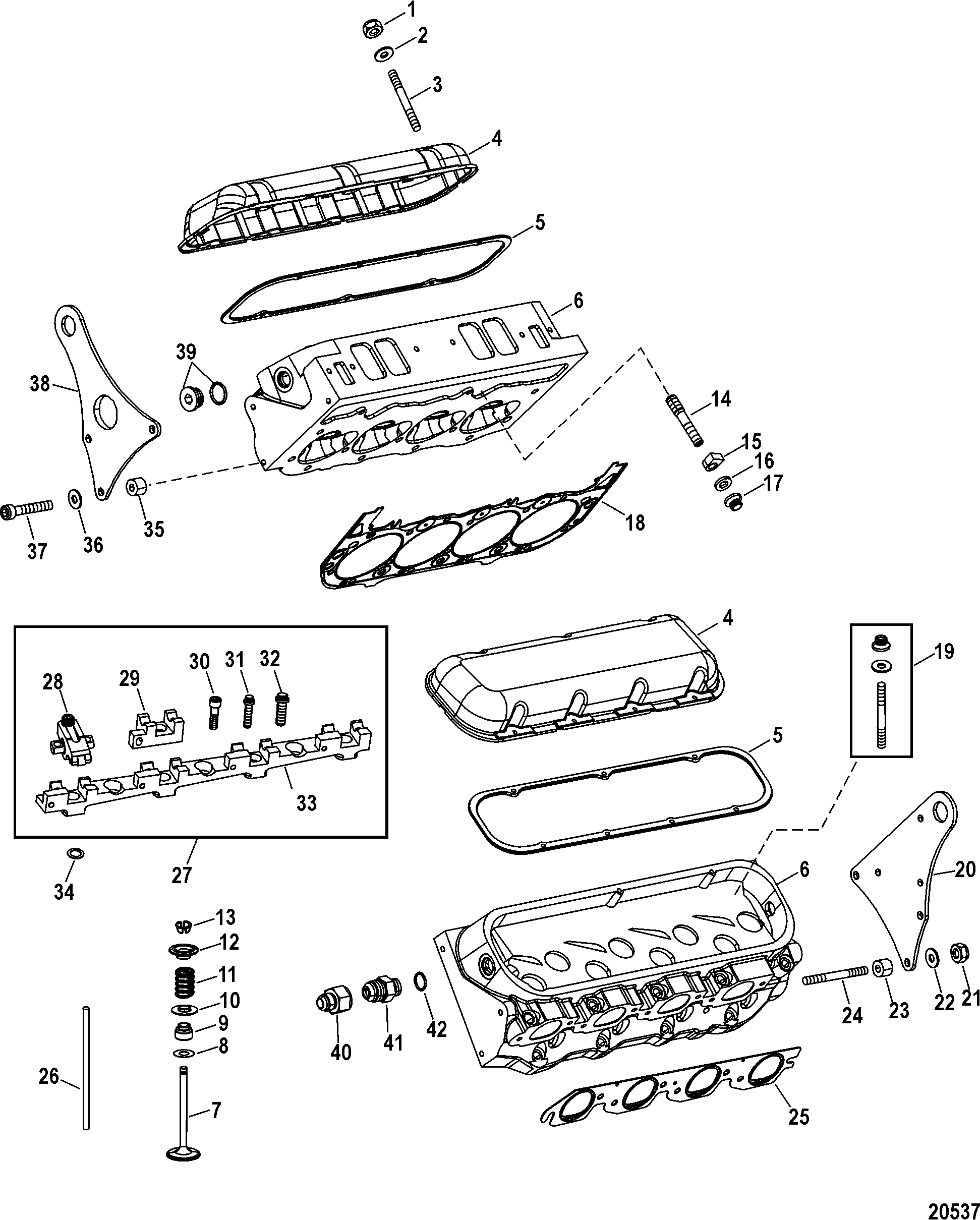

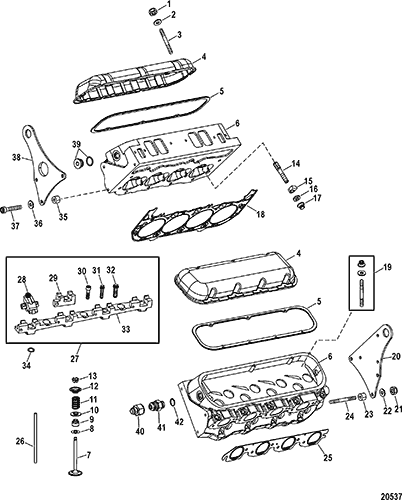

Section Drawing: (Hover or click to view larger)

Other Sub-Sections:

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 11-35888   676-9-72001 700-21180   NUT, (.250-28) Stainless Steel 14   5
2 12-846673         WASHER, (.265 x .500 x .060) Stainless Steel 14   5
3 16-843821         STUD, (.250-20/.250-28 x 1.500) 14   5
4 842906         VALVE COVER ASSEMBLY, Blue 2
5 27-14765   676-9-61311     GASKET, Valve Cover To Cylinder Head 2
6 843525A08         CYLINDER HEAD ASSEMBLY, Black 2   5
7 842396T01         VALVE, Intake 8 842396001 5
7 842395T01         VALVE, Exhaust 8 842395001 5
8 15-845669         SHIM, Valve Spring (.015) AR   5
8 15-77624         SHIM, Valve Spring (.030) AR   5
8 15-77625         SHIM, Valve Spring (.060) AR   5
9 26-69285         SEAL, Valve 8   Intake 2,5
9 840816         SEAL, Valve 8   Exhaust 2,5
10 840678         SEAT, Spring 16   5
11 24-8M0011488         SPRING 16 24-8493231 5
12 841353         RETAINER, Valve Spring 16   5
13 841848         LOCK VALVE SET, Intake 8   5
13 841808         LOCK VALVE SET, Exhaust 8   5
14 16-840043         STUD, (.375-24/.437-14 x 2.650) 4   5
15 14-840025         TAB WASHER, Special, Cylinder Head To Block 4   5
16 12-840028         WASHER, (.390 x .750 x .120) 4   5
17 11-840026         NUT, 12 Point (.375-24) 4   5
18 27-842593         GASKET, Cylinder Head 2   2,5
19 16-842363         STUD KIT, Cylinder Head 1   5
20 8M0051040         LIFTING EYE 1 842596 5
21 11-82671013         NUT, (.375-24) Stainless Steel 3   5
22 12-856774         WASHER, (.406 x .750 x .105) Stainless Steel 3   5
23 23-669954         SPACER, (.410 x 1.00 x .750) Aluminum - Black 3   5
24 16-8M0034438         STUD, (.375-24/.375-16 x 2.250) 3 16-87163 5
25 27-842576         GASKET, Exhaust 2   2
26 842606         PUSH ROD, Intake (9.05) AR
26 842606001         PUSH ROD, Intake (9.00) 8   5
26 842606002         PUSH ROD, Intake (9.10) AR
26 842607         PUSH ROD, Exhaust (9.70) AR
26 842607001         PUSH ROD, Exhaust (9.65) 8   5
26 842607002         PUSH ROD, Exhaust (9.75) AR
27 842366A1         ROCKER ARM KIT 1   5
28 8M0061725         ROCKER ARM ASSEMBLY 16 840720A1 5
29 843530         STAND, Exhaust 8   5
30 10-840725         SCREW, (.312-18 x 1.125) Torx Head 32   5
31 10-840727         SCREW, (.250-20 x 1.00) 12 Point Head 8   5
32 10-840726         SCREW, (.437-14 x 1.00) 12 Point Head 16   5
33 843529         STAND, Intake 2   5
34 15-848046A1         SHIM SET 1   5
35 23-669955         SPACER, (.410 x 1.00 x .337) Aluminum - Black 3   5
36 12-37828         WASHER, (.390 x .625 x .062) Stainless Steel 3   5
37 10-842787         SCREW, (.375-16 x 2.00) Stainless Steel 3   5
38 843515         LIFTING EYE 1   5
39 19-8M0000696         PLUG ASSEMBLY, Magnetic 2   5
40 22-8M0010526         FITTING, Straight - Aluminum, Hose Assembly To Supercharger 2 22-841371 Design I
40 22-8M0010526         FITTING, Straight - Stainless Steel, Hose Assembly To Supercharger 2   Design II
41 22-8M0010559 2 2 2 2 FITTING ASSEMBLY, Blue - With Filter 2 22-841370A01 Design I
41 22-8M0010559 2 2 2 2 FITTING ASSEMBLY, Black - With Filter 2   Design II
42 25-849088 2 2 2 2 O-RING, (.755 x .097) 2
- 27-842593A01 1 1 1 1 GASKET/SEAL SET, Engine Overhaul 1   NOTE: See Gasket/Seal Set - Engine Overhaul Section For Complete Parts Listing
- 841350A07 1 1 1 1 PARTIAL ENGINE ASSEMBLY 1
