Ref. |
OEM Part # |
Hardin # |
Mallory # |
GLM # |
Other # |
Description |
Num Req. |
Superseded From |
Special Notes |

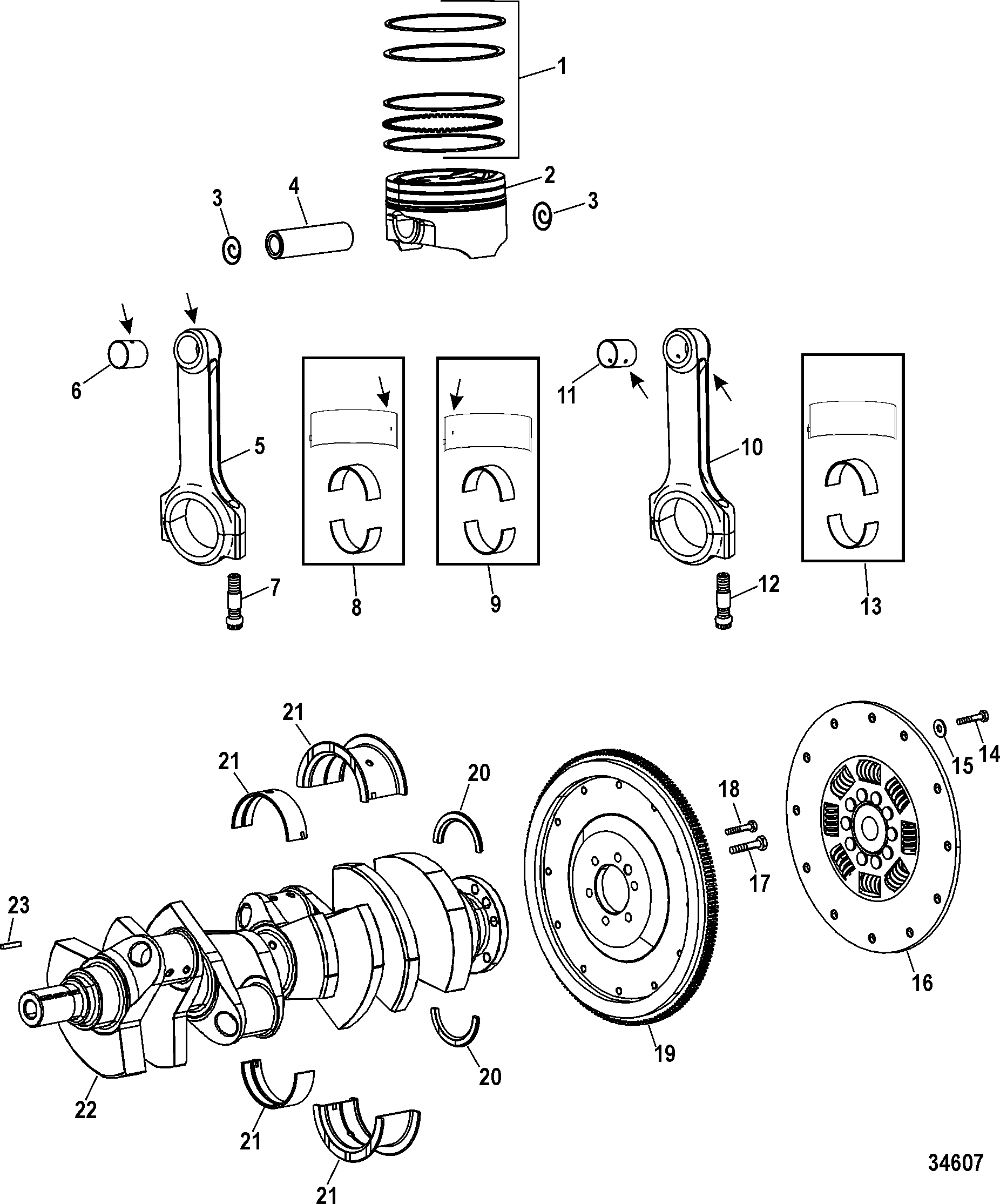

1 |
39-847684T01 |
|
|
|
|
RING KIT, Piston |
1 |
39-847684A01 |
5 |
2 |
2700-842604A06 |
|
|
|
|
PISTON KIT, Standard |
8 |
|
NOTE: Part Honed To Match Piston Pin 5 |
2 |
2700-842604A01 |
|
|
|
|
PISTON KIT, .001 Oversize |
AR |
|
|
2 |
2700-842604A02 |
|
|
|
|
PISTON KIT, .002 Oversize |
AR |
|
|
2 |
2700-842604A03 |
|
|
|
|
PISTON KIT, .003 Oversize |
AR |
|
|
2 |
2700-842604A04 |
|
|
|
|
PISTON KIT, .004 Oversize |
AR |
|
|
2 |
2700-842604A05 |
|
|
|
|
PISTON KIT, .005 Oversize |
AR |
|
|
3 |
843377 |
|
|
|
|
SPIRO LOCK |
16 |
|
5 |
4 |
41-840620 |
|
|
|
|
PIN, Piston |
8 |
|
5 |
5 |
622-821414A01 |
|
|
|
|
CONNECTING ROD ASSEMBLY |
8 |
|
Design I 5 |
6 |
42839 |
|
|
|
|
BUSHING |
8 |
|
5 |
7 |
10-843922 |
|
|
|
|
SCREW, Special |
16 |
|
5 |
8 |
23-8M0030698 |
|
|
|
|
BEARING SET, Connecting Rod - Standard |
4 |
23-841447001 |
NOTE: Used With Design I Conn Rod 821414A01 In Cylinders 2 - 4 - 6 - 8 5 |
8 |
23-8M0030693 |
|
|
|
|
BEARING SET, Connecting Rod - .001 Oversize |
AR |
23-841448001 |
This Part is No Longer Available - NOTE: Used With Design I Conn Rod 821414A01 In Cylinders 2 - 4 - 6 - 8 |
8 |
23-8M0030696 |
|
|
|
|
BEARING SET, Connecting Rod - .001 Undersize |
AR |
23-841449001 |
This Part is No Longer Available - NOTE: Used With Design I Conn Rod 821414A01 In Cylinders 2 - 4 - 6 - 8 |
8 |
23-841450001 |
|
|
|
|
BEARING SET, Connecting Rod - .010 Undersize |
AR |
|
This Part is No Longer Available - NOTE: Used With Design I Conn Rod 821414A01 In Cylinders 2 - 4 - 6 - 8 |
9 |
23-8M0030699 |
|
|
|
|
BEARING SET, Connecting Rod - Standard |
4 |
23-841447002 |
NOTE: Used With Design I Conn Rod 821414A01 In Cylinders 1 - 3 - 5 - 7 5 |
9 |
23-8M0030695 |
|
|
|
|
BEARING SET, Connecting Rod - .001 Oversize |
AR |
23-841448002 |
This Part is No Longer Available - NOTE: Used With Design I Conn Rod 821414A01 In Cylinders 1 - 3 - 5 - 7 |
9 |
23-8M0030697 |
|
|
|
|
BEARING SET, Connecting Rod - .001 Undersize |
AR |
23-841449002 |
This Part is No Longer Available - NOTE: Used With Design I Conn Rod 821414A01 In Cylinders 1 - 3 - 5 - 7 |
9 |
23-841450002 |
|
|
|
|
BEARING SET, Connecting Rod - .010 Undersize |
AR |
|
This Part is No Longer Available - NOTE: Used With Design I Conn Rod 821414A01 In Cylinders 1 - 3 - 5 - 7 |
10 |
622-8M0008423 |
|
|
|
|
CONNECTING ROD ASSEMBLY |
8 |
|
Design II 5 |
11 |
622-8M0008423 |
|
|
|
|
BUSHING |
8 |
841338 |
5 |
12 |
10-843922 |
|
|
|
|
SCREW, Special |
16 |
|
5 |
13 |
23-8M0030217 |
|
|
|
|
BEARING SET, Connecting Rod - Standard |
8 |
23-841447 |
NOTE: Used With Design II Conn Rod 8M0008423 5 |
13 |
23-8M0030218 |
|
|
|
|
BEARING SET, Connecting Rod - .001 Oversize |
AR |
23-841448 |
NOTE: Used With Design II Conn Rod 8M0008423 |
13 |
23-8M0030216 |
|
|
|
|
BEARING SET, Connecting Rod - .001 Undersize |
AR |
23-841449 |
NOTE: Used With Design II Conn Rod 8M0008423 |
13 |
23-8M0030982 |
|
|
|
|
BEARING SET, Connecting Rod - .010 Undersize |
AR |
23-841450 |
NOTE: Used With Design II Conn Rod 8M0008423 |
14 |
10-35091 |
|
|
|
|
SCREW, (.375-16 x 1.00) |
12 |
|
|
15 |
12-822838 |
|
|
|
|
WASHER, (.401 x .745 x .097) |
12 |
|
|
16 |
8M0050119 |
|
|
|
|
DRIVEPLATE ASSEMBLY |
1 |
842554A1 |
|
17 |
10-848228 |
|
|
|
|
SCREW, (.500-20 x 1.06) |
1 |
|
5 |
18 |
10-8M0009552 |
|
|
|
|
SCREW, (.437-20 x 1.00) 12 Point |
6 |
|
5 |
19 |
230-8M0050926 |
|
|
|
|
FLYWHEEL |
1 |
230-742413 |
5 |
20 |
26-841462 |
|
|
|
|
SEAL SET, Rear Main (2 Per Set) |
1 |
|
2,5 |
21 |
8M0051198 |
|
|
|
|
BEARING SET, Main - Standard |
1 |
23-842400 |
5 |
21 |
8M0053743 |
|
|
|
|
BEARING SET, Main - .001 Oversize |
AR |
23-842401 |
|
21 |
23-842402 |
|
|
|
|
BEARING SET, Main - .001 Undersize |
AR |
|
|
21 |
23-8M0053549 |
|
|
|
|
BEARING SET, Main - .010 Undersize |
AR |
23-842403 |
|
22 |
8M0050398 |
|
|
|
|
CRANKSHAFT |
1 |
484-840035 |
5 |
23 |
28-34466 |
|
|
|
|
KEY |
3 |
|
5 |
- |
27-842593A01 |
|
|
|
|
GASKET/SEAL SET, Engine Overhaul |
1 |
|
NOTE: See Gasket/Seal Set - Engine Overhaul Section For Complete Parts Listing |
- |
841000A17 |
|
|
|
|
PARTIAL ENGINE ASSEMBLY |
1 |
|
|
