850 SCi - Serial 0M952900 Thru 0M956316 - Fuel Line Components (Design I)

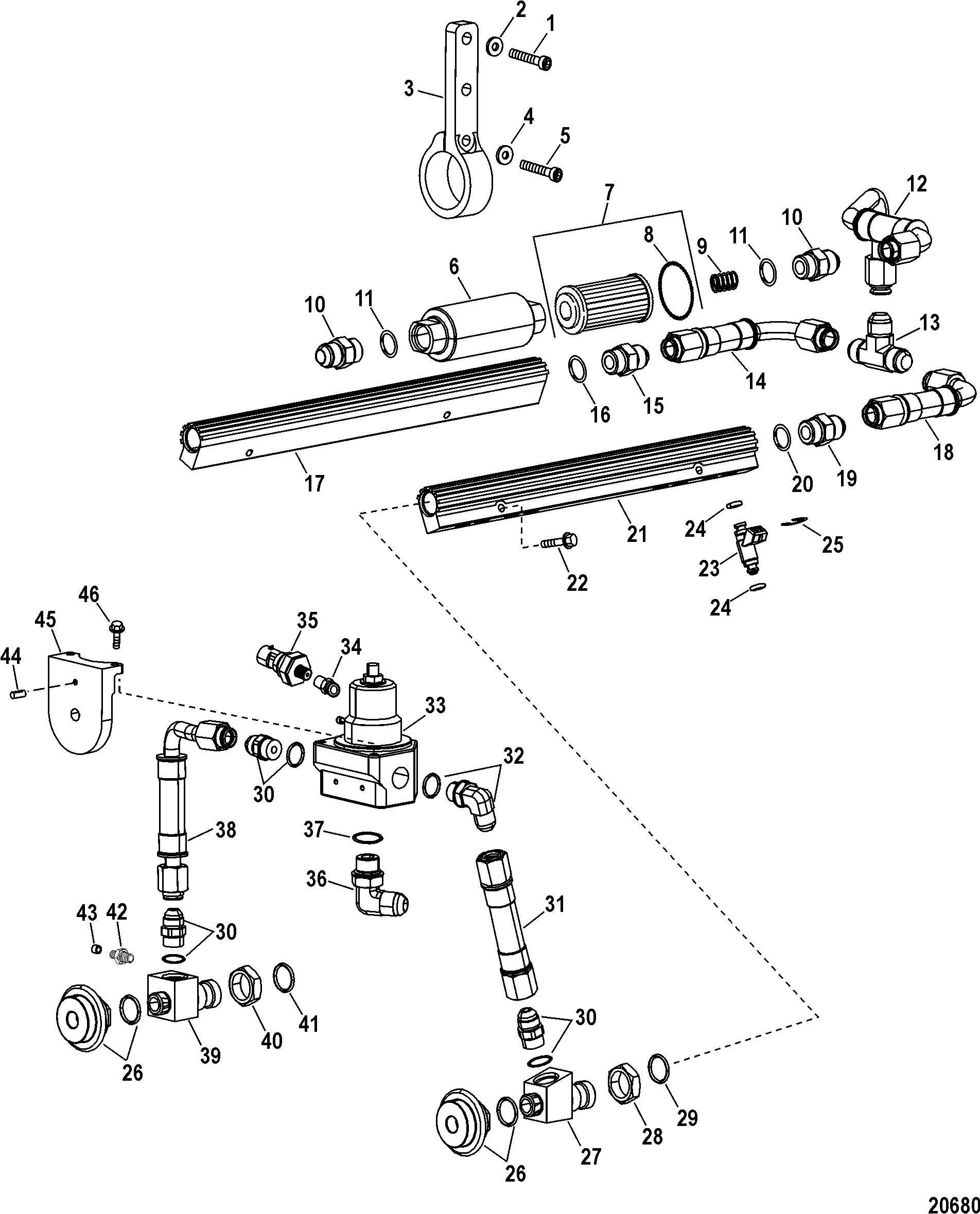

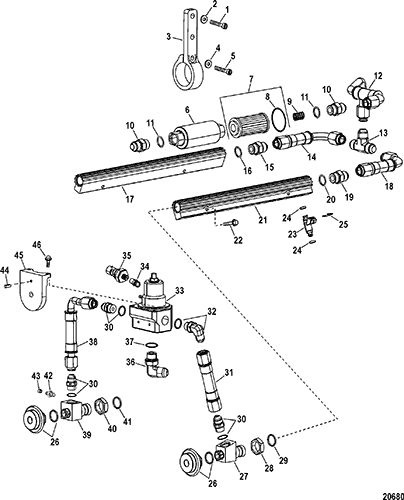

Section Drawing: (Hover or click to view larger)

Other Sub-Sections:

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superseded From Special Notes
1 10-30206

700-22430
SCREW, (.375-16 x 1.00) Stainless Steel 2

2 12-8M0027716



WASHER, (.390 x .600 x .032) Stainless Steel 2

3 843856001



BRACKET, Fuel Filter 1

4 12-814806



WASHER, (.344 x .688 x .065) Stainless Steel 1

5 10-79436



SCREW, (.312-18 x 1.250) Stainless Steel 1

6 35-842645A01



FILTER ASSEMBLY, Fuel 1

7 35-842645A03



FILTER KIT, Fuel 1

8 25-842636



O-RING, (1.739 x .070) 1

9 24-812708



SPRING 1

10 22-841826A01



FITTING ASSEMBLY, Fuel - Aluminum 2

11 25-849088



O-RING, (.755 x .097) 2

12 32-897345T52



LINE ASSEMBLY, Fuel 1 32-840032A01
13 22-843827



FITTING, Tee - Aluminum 1

14 32-897345T51



LINE ASSEMBLY, Fuel 1 32-842635A01
15 22-841826A01



FITTING ASSEMBLY, Fuel - Aluminum 1

16 25-849088



O-RING, (.755 x .097) 1

17 842587



FUEL RAIL, Starboard - Black 1

18 32-897345T51



LINE ASSEMBLY, Fuel 1 32-842635A01
19 22-841826A01



FITTING ASSEMBLY, Fuel - Aluminum 1

20 25-849088



O-RING, (.755 x .097) 1

21 842586



FUEL RAIL, Port - Black 1

22 10-F2030



SCREW, (.250-20 x 1.250) Stainless Steel 4

23 842915T01



INJECTOR ASSEMBLY, Fuel 16 842915A01
24 25-851889



O-RING 32
2
25 53-87843



E RING 16

26 841062T01



DAMPER ASSEMBLY, Fuel Pressure - Black 2

27 879345T67



ADAPTER ASSEMBLY, Fuel Damper, Port 1 842629A03
28 11-8M0010629



NUT, (.875-14) Blue 1 11-843843
29 25-849088



O-RING, (.755 x .097) 1

30 22-841818



FITTING ASSEMBLY, Aluminum - With O-Ring 3

31 32-897345T54



LINE ASSEMBLY, Fuel 1 32-842630A01
32 22-842631



FITTING ASSEMBLY, 90 Degree 1

33 841382A04



REGULATOR ASSEMBLY, Fuel Pressure 1 843835 NOTE: Part No Longer Available - Order Replacement Kit 841382A03
33 841382A04



REGULATOR KIT, Fuel Pressure 1 841382A03 NOTE: Replacement Kit For 843835 - Reference Design II For Mounting Components
34 22-843842



FITTING, 45 Degree 1

35 881879T11



SENSOR, Pressure (0 - 100 PSI) 1 881879011
36 22-849089



FITTING ASSEMBLY, 90 Degree 1

37 25-849088



O-RING, (.755 x .097) 1

38 32-897345T55



LINE ASSEMBLY, Fuel 1 32-843851A01
39 879345T68



ADAPTER ASSEMBLY, Fuel Damper, Starboard 1 842629A02
40 11-8M0010629



NUT, (.875-14) Blue 1 11-843843
41 25-849088



O-RING, (.755 x .097) 1

42 22-840971A1



VALVE ASSEMBLY, Shrader 1

43 22-805515



CAP, Shrader Valve - Brass 1

44 17-35973



PIN, Dowel 1

45 842589



BRACKET, Fuel Pressure Regulator Mount 1

46 10-90192



SCREW, (.250-20 x .750) Stainless Steel 2

- 27-842593A01



GASKET/SEAL SET, Engine Overhaul 1
NOTE: See Gasket/Seal Set - Engine Overhaul Section For Complete Parts Listing
