850 SCi - Serial 0M952900 Thru 0M956316 - Oil Cooler - Transmission

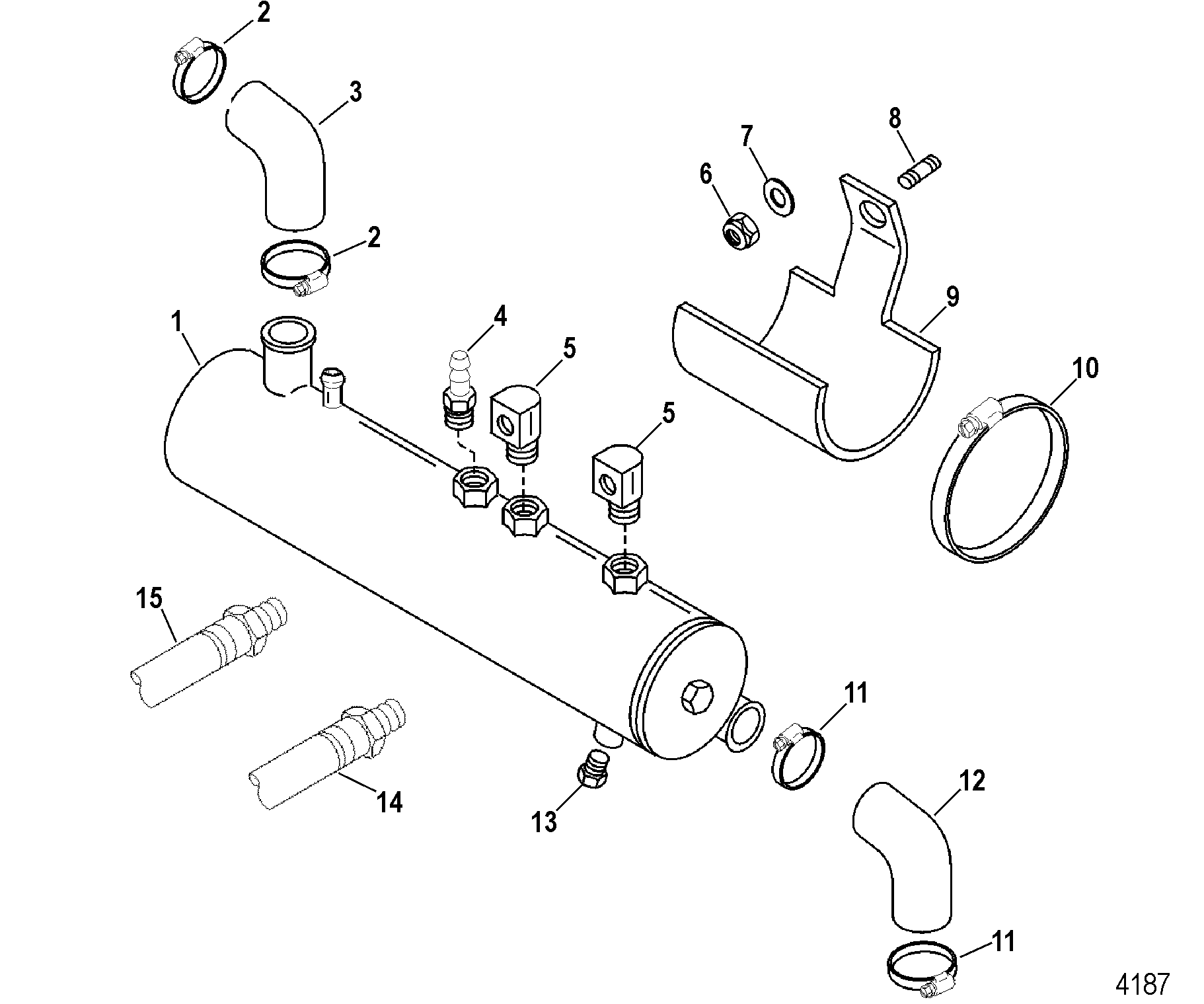

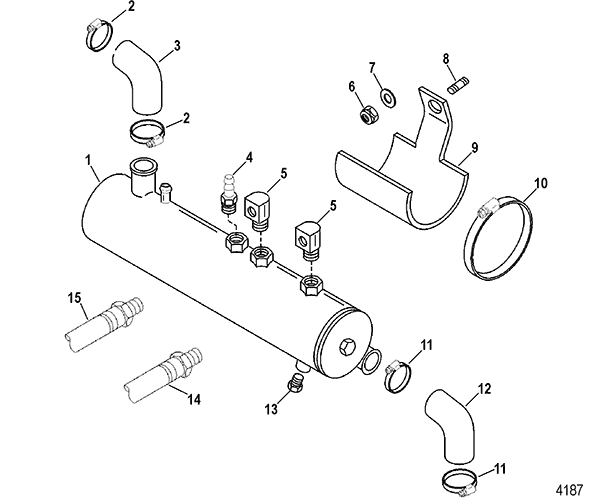

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator And Sea Water Pump Mounting (Design I)
- Alternator And Sea Water Pump Mounting (Design II)
- Cooling (Water Hoses And Fittings - Port)
- Cooling (Water Hoses And Fittings - Starboard)
- Cooling Components (Sea Water Pump - Design I)
- Cooling Components (Sea Water Pump - Design II)
- Cooling Components (Water Thermostat Housing)
- Electrical Components (Ignition Coils)
- Electrical Components (Mounting Box)
- Electrical Components (Starter)
- Electrical Components (Wiring)
- Engine Components (Crankshaft - Pistons - Connecting Rods)
- Engine Components (Cylinder Block)
- Engine Components (Cylinder Head)
- Engine Components (Front Cover And Camshaft)
- Engine Components (Water Inlet And Drive Belt)
- Engine Components (Water Pump)
- Filter Kit (Remote) (Water - Fuel Separating)
- Flywheel Housing And Components
- Fuel Line Components (Design I)
- Fuel Line Components (Design II)
- Fuel Pump (Remote)
- Fuse Harness Kit (879365A20)
- Gasket-Seal Set - Engine Overhaul (27-842593A01)
- Intake Components (Air Plenum And Flame Arrestor)
- Intake Components (Boost Valve)
- Intake Components (Manifold)
- Intake Components (Supercharger)
- Intake Components (Water Intercooler)
- Mount Plates (Engine)(Design I)
- Mount Plates (Engine)(Design II)
- Oil Cooler - Transmission
- Oil Filter Adaptor And Components
- Oil Hoses And Fittings (Port Side View)
- Oil Hoses And Fittings (Starboard Side View)
- Oil Pan And Oil Pump
- Oil Tank And Breather Assembly (Remote)
- Power-Assisted Steering Components (Design I)
- Power-Assisted Steering Components (Design II)
- Power-Assisted Steering Components (Design III)
- Power-Assisted Steering Components (Design IV)
- Reservoir Bottle (Transmission Fluid)
- Rigging Kit (Dual Engines)
- Rigging Kit (Quad Engines)
- Rigging Kit (Single Engine)
- Tool List (Special - Engine)
- Transmission (BAM Driveline Models)
- Transmission (BAM Plug In Models)
- Transmission (HUBER Driveline Models)
- Transmission (HUBER Plug In Models)
- Transmission Components (Plug In Models)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superseded From | Special Notes |
| 1 | 849115T01 | COOLER, Oil | 1 | 849115 | |||||
| 2 | 54-180766 | CLAMP, Worm Gear | 2 | ||||||
| 3 | 32-8M0007749 | HOSE, Molded, Trim To Fit | 1 | ||||||
| 4 | 22-70834 | CONNECTOR, (.375-18) Straight - Brass | 1 | ||||||
| 5 | 22-47629 | ELBOW, 90 Degree | 2 | ||||||
| 6 | 11-82670911 | NUT, (.312-24) Stainless Steel | 1 | ||||||
| 7 | 12-56720 | WASHER, (.330 x .750 x .060) Stainless Steel | 1 | ||||||
| 8 | 16-72742 | STUD, (.312-18/.324-24 x 1.090) | 1 | ||||||
| 9 | 849324 | BRACKET | 1 | ||||||
| 10 | 54-815504352 | CLAMP, Worm Gear | 2 | ||||||
| 11 | 54-180766 | CLAMP, Worm Gear | 2 | ||||||
| 12 | 32-8M0007749 | HOSE, Molded, Trim To Fit | 1 | ||||||
| 13 | 22-328022 | PLUG, Pipe (.125-27) Brass | 1 | ||||||
| 14 | 32-4751620 | HOSE ASSEMBLY, (29.00 Inches) | 1 | HUBER Transmission Models | |||||
| 14 | 32-475169 | HOSE ASSEMBLY, (37.00 Inches) | 1 | BAM Transmission Models | |||||
| 15 | 32-4751615 | HOSE ASSEMBLY, (31.00 Inches) | 1 |
