850 SCi - Serial 0M952900 Thru 0M956316 - Cooling Components (Sea Water Pump - Design I)

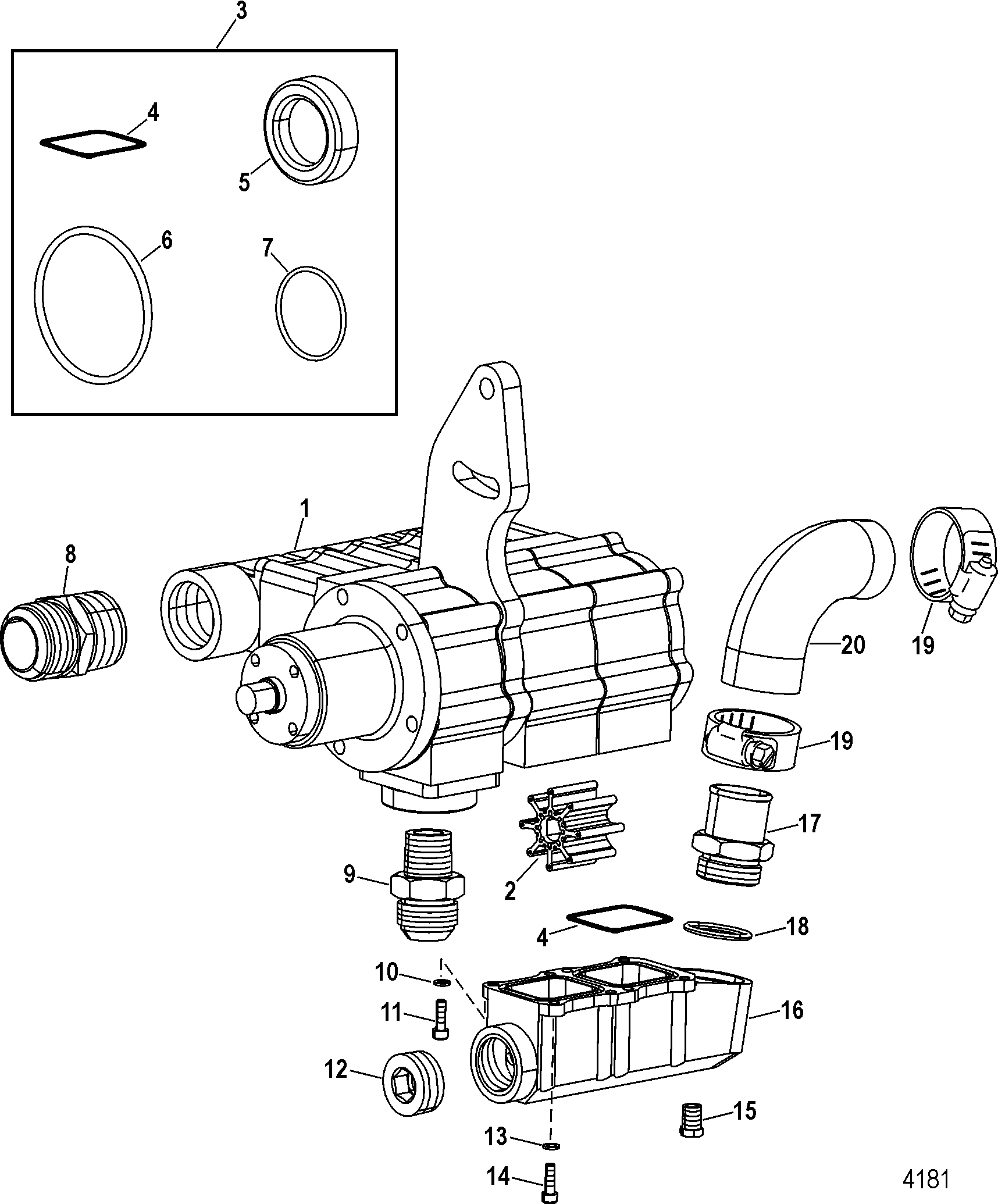

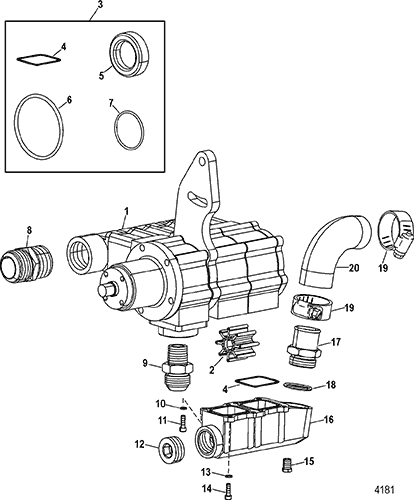

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator And Sea Water Pump Mounting (Design I)
- Alternator And Sea Water Pump Mounting (Design II)
- Cooling (Water Hoses And Fittings - Port)
- Cooling (Water Hoses And Fittings - Starboard)
- Cooling Components (Sea Water Pump - Design I)
- Cooling Components (Sea Water Pump - Design II)
- Cooling Components (Water Thermostat Housing)
- Electrical Components (Ignition Coils)
- Electrical Components (Mounting Box)
- Electrical Components (Starter)
- Electrical Components (Wiring)
- Engine Components (Crankshaft - Pistons - Connecting Rods)
- Engine Components (Cylinder Block)
- Engine Components (Cylinder Head)
- Engine Components (Front Cover And Camshaft)
- Engine Components (Water Inlet And Drive Belt)
- Engine Components (Water Pump)
- Filter Kit (Remote) (Water - Fuel Separating)
- Flywheel Housing And Components
- Fuel Line Components (Design I)
- Fuel Line Components (Design II)
- Fuel Pump (Remote)
- Fuse Harness Kit (879365A20)
- Gasket-Seal Set - Engine Overhaul (27-842593A01)
- Intake Components (Air Plenum And Flame Arrestor)
- Intake Components (Boost Valve)
- Intake Components (Manifold)
- Intake Components (Supercharger)
- Intake Components (Water Intercooler)
- Mount Plates (Engine)(Design I)
- Mount Plates (Engine)(Design II)
- Oil Cooler - Transmission
- Oil Filter Adaptor And Components
- Oil Hoses And Fittings (Port Side View)
- Oil Hoses And Fittings (Starboard Side View)
- Oil Pan And Oil Pump
- Oil Tank And Breather Assembly (Remote)
- Power-Assisted Steering Components (Design I)
- Power-Assisted Steering Components (Design II)
- Power-Assisted Steering Components (Design III)
- Power-Assisted Steering Components (Design IV)
- Reservoir Bottle (Transmission Fluid)
- Rigging Kit (Dual Engines)
- Rigging Kit (Quad Engines)
- Rigging Kit (Single Engine)
- Tool List (Special - Engine)
- Transmission (BAM Driveline Models)
- Transmission (BAM Plug In Models)
- Transmission (HUBER Driveline Models)
- Transmission (HUBER Plug In Models)
- Transmission Components (Plug In Models)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 8M0056797 | 625-4141 | PUMP ASSEMBLY, Sea Water | 1 | 842387A1 | Design I - NOTE: Part No Longer Available - Order Complete Sea Water Pump Assembly 840048A05 - Reference Design III | |||
| 1 | 8M0056797 | 625-4141 | PUMP ASSEMBLY, Sea Water | 1 | 841359A01 | Design II - NOTE: Part No Longer Available - Order Complete Sea Water Pump Assembly 840048A05 - Reference Design III | |||
| 1 | 8M0056797 | 625-4141 | PUMP ASSEMBLY, Sea Water - Brass - Complete | 1 | 840048A05 | Design III | |||
| 2 | 47-59362T1 | 625-4011 | 676-9-45375 |
700-89740 | IMPELLER | 3 | |||
| 3 | 25-849087A01 | REPAIR KIT, Seals And O-Rings | 1 | ||||||
| 4 | 25-849087 | O-RING, (1.862 x .103) | 2 | ||||||
| 5 | 26-90562 | 676-9-76107 | 700-85080 | SEAL, (1.254 x .312) | 2 | ||||
| 6 | 25-94926 | O-RING, (2.489 x .070) | 9 | ||||||
| 7 | 25-846594 | O-RING, (1.239 x .070) | 1 | ||||||
| 8 | 22-843829 | NIPPLE | 1 | ||||||
| 9 | 22-84772015 | FITTING | 1 | ||||||
| 10 | 13-26996 | LOCKWASHER, (#10) Stainless Steel | 4 | ||||||
| 11 | 10-843828 | SCREW, (#10-24 x .560) | 4 | ||||||
| 12 | 22-823465 | PLUG, Pipe (1.00-11) Brass | 1 | ||||||
| 13 | 13-26996 | LOCKWASHER, (#10) Stainless Steel | 4 | ||||||
| 14 | 10-F2211 | SCREW, (#10-24 x .625) Stainless Steel | 4 | ||||||
| 15 | 22-328022 | PLUG, Pipe (.125-27) Brass | 1 | ||||||
| 16 | 842625 | MANIFOLD, Outlet - Sea Water Pump | 1 | ||||||
| 17 | 22-8M0007483 | FITTING ASSEMBLY, Straight - Aluminum | 1 | 22-843832A01 | Design I | ||||
| 17 | 22-8M0007483 | FITTING ASSEMBLY, Straight - Stainless Steel | 1 | Design II | |||||
| 18 | 25-843858 | O-RING, (1.188 x .125) | 1 | ||||||
| 19 | 54-180766 | CLAMP, Worm Gear | 2 | ||||||
| 20 | 32-8M0007749 | HOSE, Molded, Trim To Fit | 1 |
