850 SCi - Serial 0M952900 Thru 0M956316 - Flywheel Housing And Components

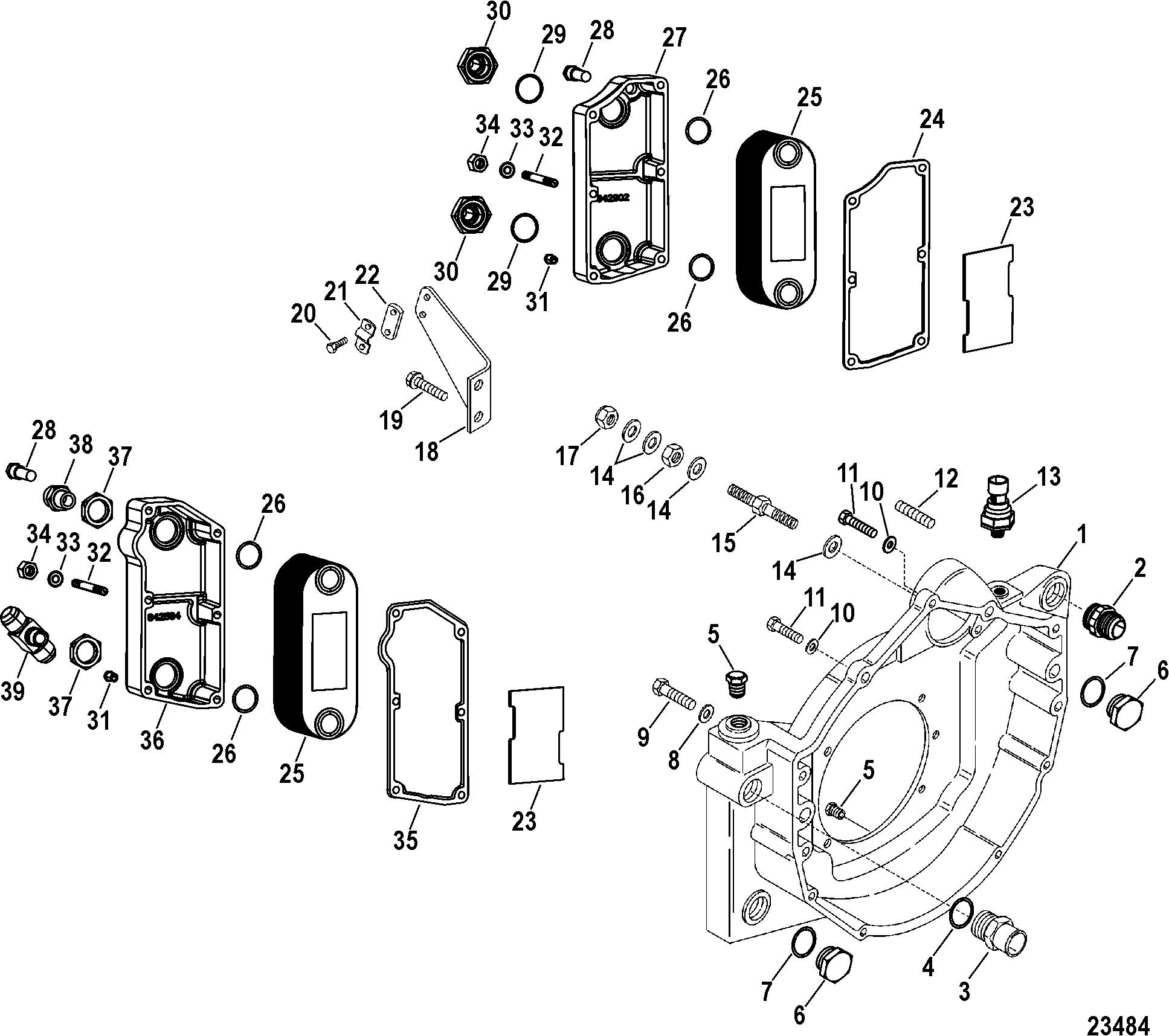

Section Drawing: (Hover or click to view larger)

Other Sub-Sections:

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superseded From Special Notes
1 8M0084514



HOUSING, Flywheel 1 8433301 NOTE: Early Design Models With Plugs Reference Number 6
1 8M0084514



HOUSING ASSEMBLY, Flywheel 1 843330A01 NOTE: Later Design Models Without Plugs
2 22-8M0053646



FITTING ASSEMBLY, Straight - Aluminum 1 22-841825A01 Design I
2 22-8M0053646



FITTING ASSEMBLY, (2.040) Stainless Steel 1 22-8M0005503 Design II
3 22-8M0007483



FITTING ASSEMBLY, Straight - Aluminum 1 22-843832A01 Design I
3 22-8M0007483



FITTING ASSEMBLY, Straight - Stainless Steel 1
Design II
4 25-843858



O-RING, (1.188 x .125) 1

5 22-328022



PLUG, Pipe (.125-27) Brass 2

6 22-843836A01



PLUG ASSEMBLY 2
NOTE: Early Design Models Only
7 25-843858



O-RING, (1.188 x .125) 2
NOTE: Early Design Models Only
8 12-33181



WASHER, (.375 x .812 x .062) Copper 4
2
9 10-95802



SCREW, (.375-16 x 2.750) Stainless Steel 4

10 12-34931



WASHER, (.406 x .734 x .063) Stainless Steel 2

11 10-58642



SCREW, (.375-16 x 1.50) Stainless Steel 2

12 16-57982



STUD, (.437-14/.437-20 x 1.875) 2

13 881879T11



SENSOR, Pressure (0 - 100 PSI) 1 881879011
14 12-34931



WASHER, (.406 x .734 x .063) Stainless Steel 4

15 16-64066



STUD, (.375-16 x 2.750) Special 1

16 11-58186



NUT, (.375-16) Zinc Plated, Plain Hex 1

17 11-82670912



NUT, (.375-16) Stainless Steel, Nylon Insert 1

18 849091



BRACKET, Shift Cable 1
Driveline Models
19 10-817505



SCREW, (.250-20 x .620) Stainless Steel 2
Driveline Models
20 10-88865



SCREW, (#10-24 x .750) Stainless Steel 2
Driveline Models
21 54-846341



BRACKET, Cable 1
Driveline Models
22 846344



SPACER 1
Driveline Models
23 15-840041001



SHIM (.059), Oil Cooler AR   This Part is No Longer Available
23 15-840041002



SHIM (.090), Oil Cooler AR   This Part is No Longer Available
23 15-840041003



SHIM (.105), Oil Cooler AR   This Part is No Longer Available
24 27-848382



GASKET, Oil Cooler - Port, Flywheel Housing To Oil Cooler 1
2
25 8M0050390



COOLER, Oil 2 843524
26 25-35480



O-RING, (1.237 x .103) 4

27 842902001



COVER, Oil Cooler - Port 1

28 806000



PLUG, Zinc Electrode 2 22-47917
29 25-35480



O-RING, (1.237 x .103) 2

30 22-840039



FITTING 2

31 22-328022



PLUG, Pipe (.125-27) Brass 2

32 16-68202



STUD, (.312-24 x 3.00) 12

33 12-36533



WASHER, (.328 x .562 x .0312) Copper 4
2
33 12-70132



WASHER, (.323 x .563 x .063) Stainless Steel 8

34 11-82670911



NUT, (.312-24) Stainless Steel 12

35 27-848383



GASKET, Oil Cooler - Starboard, Flywheel Housing To Oil Cooler 1
2
36 842584001



COVER, Oil Cooler - Starboard 1

37 11-47521



NUT, (1.125-12) 2

38 22-84772013



FITTING 1

39 22-847550



ADAPTOR, Tee 1 22-847550
- 27-842593A01



GASKET/SEAL SET, Engine Overhaul 1
NOTE: See Gasket/Seal Set - Engine Overhaul Section For Complete Parts Listing
