| Ref. |
OEM Part # |
Hardin # |
Mallory # |
GLM # |
Other # |
Description |
Num Req. |
Superceded From |
Special Notes |

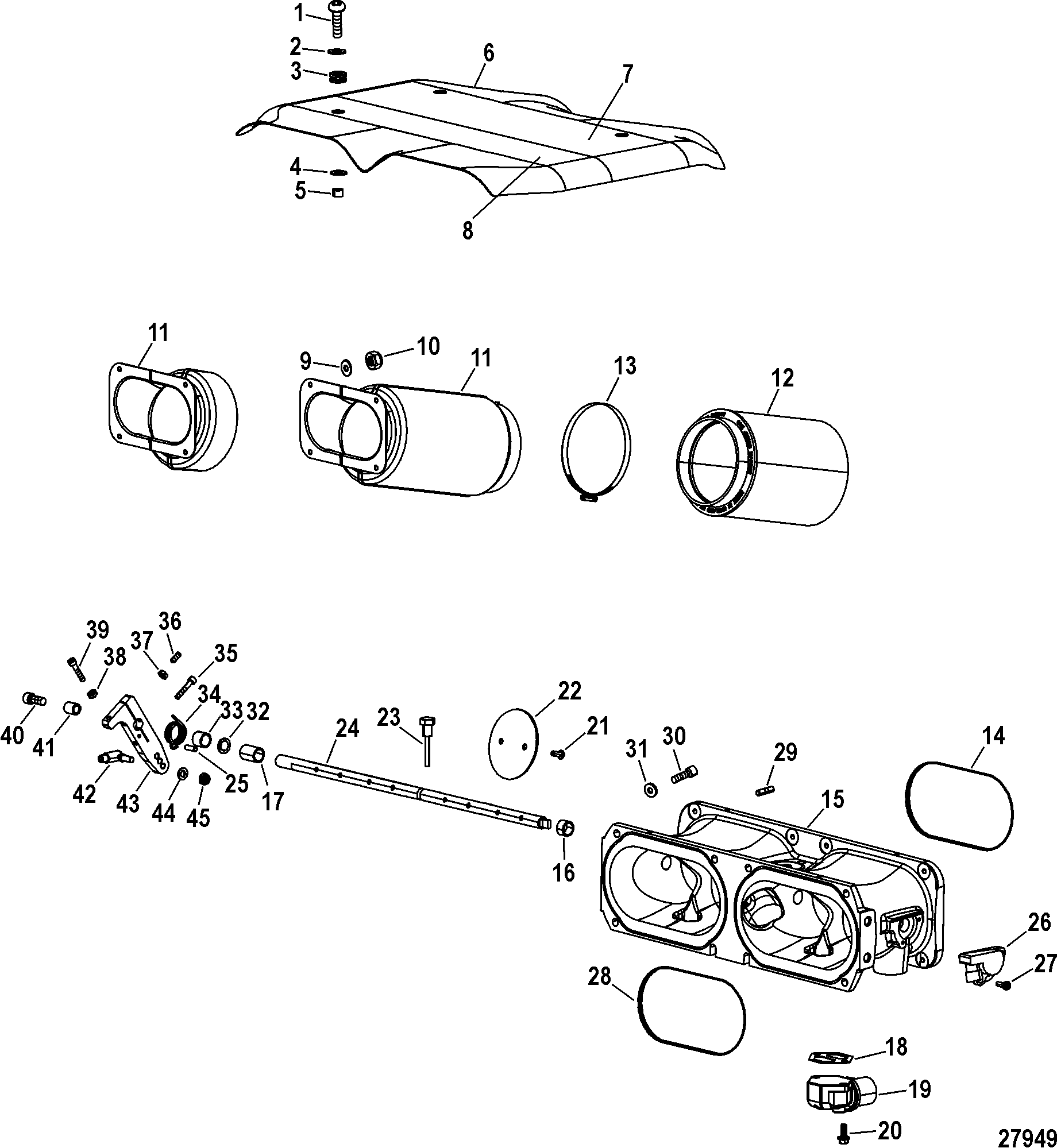

| 1 |
10-849306 |
|
|
|
|
SCREW, (.250-20 x .750) Button Head |
4 |
|
|
| 2 |
12-35044 |
|
|
|
|
WASHER, (.281 x .625 x .065) Stainless Steel |
4 |
|
|
| 3 |
25-834921 |
|
|
|
|
GROMMET |
4 |
|
|
| 4 |
12-74758 |
|
|
|
|
WASHER, (.469 x .875 x .063) |
OPT |
|
|
| 5 |
23-F694359 |
|
|
|
|
SPACER |
4 |
|
This Part is No Longer Available |
| 6 |
842643001 |
|
|
|
|
COVER, Engine |
1 |
|
|
| 7 |
37-842640001 |
|
|
|
|
DECAL, 850 SCi Specs |
1 |
|
SN# 0M952900 THRU 0M955426 |
| 7 |
37-8M0021246 |
|
|
|
|
DECAL, Mercury Racing |
1 |
|
SN# 0M955427 THRU 0M956316 |
| 8 |
37-842646001 |
|
|
|
|
DECAL, 850 SCi |
1 |
|
Design I - White Letters SN# 0M952900 THRU 0M955426 |
| 8 |
37-8M0021241 |
|
|
|
|
DECAL, 850 SCi |
1 |
|
Design II - Silver Letters SN# 0M955427 THRU 0M956316 |
| 9 |
12-65567 |
|
|
|
|
WASHER, (.265 x .750 x .048) Stainless Steel |
8 |
|
|
| 10 |
11-35888 |
|
676-9-72001 |
700-21180 |
|
NUT, (.250-28) Stainless Steel |
8 |
|
|
| 11 |
842632A02 |
|
|
|
|
RESONATOR ASSEMBLY |
2 |
|
|
| 11 |
8M0050932 |
|
|
|
|
ADAPTER ASSEMBLY |
OPT |
842632A03 |
|
| 12 |
841347T01 |
|
|
|
|
ARRESTOR ASSEMBLY, Flame |
2 |
841347A01 |
|
| 13 |
54-815504396 |
|
|
|
|
CLAMP, Worm Gear |
2 |
|
|
| 14 |
25-842390 |
|
|
|
|
O-RING, (6.520 x .070) |
2 |
|
2 |
| 15 |
843514T15 |
|
|
|
|
THROTTLE BODY ASSEMBLY, Black |
1 |
|
|
| 16 |
NSS |
|
|
|
|
NOT SOLD SEPARATE, Bushing |
5 |
|
This Part is not sold seperately |
| 17 |
NSS |
|
|
|
|
NOT SOLD SEPARATE, Bushing |
1 |
|
This Part is not sold seperately |
| 18 |
27-863112 |
|
|
|
|
GASKET, Idle Air Valve To Throttle Body |
2 |
|
|
| 19 |
8M0050118 |
|
|
|
|
VALVE ASSEMBLY, Idle Air |
2 |
841117A02 |
|
| 20 |
10-90192 |
|
|
|
|
SCREW, (.250-20 x .750) Stainless Steel |
4 |
|
|
| 21 |
10-842392 |
|
|
|
|
SCREW, (#10-32 x .500) Stainless Steel |
8 |
|
|
| 22 |
843846 |
|
|
|
|
BLADE, Throttle |
4 |
|
|
| 23 |
10-828552A1 |
|
|
|
|
SCREW ASSEMBLY, Detent |
1 |
|
|
| 24 |
843510 |
|
|
|
|
SHAFT, Throttle |
1 |
|
|
| 25 |
17-48450 |
|
|
|
|
PIN, Dowel |
1 |
|
|
| 26 |
849903 |
|
|
|
|
SENSOR, Throttle Position |
1 |
|
|
| 27 |
10-79965 |
|
|
|
|
SCREW, (#8-32 x .500) Stainless Steel |
2 |
|
|
| 28 |
25-842390 |
|
|
|
|
O-RING, (6.520 x .070) |
2 |
|
2 |
| 29 |
16-8M0034450 |
|
|
|
|
STUD, (.250-20/.250-28 x 1.01) |
8 |
16-12097 |
|
| 30 |
10-4008930 |
|
|
|
|
SCREW, (M8 x 30) Stainless Steel |
8 |
|
|
| 31 |
12-40514 |
|
|
|
|
WASHER, (.375 x .630 x .120) Stainless Steel |
8 |
|
|
| 32 |
12-8M0042643 |
|
|
|
|
WASHER, (.520 x .850 x .060) Nylon - Black |
1 |
12-19605 |
|
| 33 |
23-842572001 |
|
|
|
|
BUSHING |
1 |
|
|
| 34 |
24-844226 |
|
|
|
|
SPRING |
1 |
|
|
| 35 |
10-846500 |
|
|
|
|
SCREW, (#10-32 x 1.00) Stainless Steel |
2 |
|
|
| 36 |
10-36158 |
|
|
|
|
SET SCREW, Socket Head (#10-32 x .500) |
1 |
|
|
| 37 |
11-68219 |
|
|
|
|
NUT, (#10-32) Stainless Steel |
1 |
|
|
| 38 |
11-68219 |
|
|
|
|
NUT, (#10-32) Stainless Steel |
1 |
|
|
| 39 |
10-842127 |
|
|
|
|
SCREW, (#10-32 x .750) Stainless Steel |
1 |
|
|
| 40 |
10-90073 |
|
|
|
|
SCREW, (.312-18 x 1.00) Stainless Steel |
1 |
|
|
| 41 |
23-842389 |
|
|
|
|
BUSHING, Throttle Stop |
1 |
|
|
| 42 |
807484 |
|
|
|
|
BALL JOINT ASSEMBLY, Quick Release |
1 |
|
|
| 43 |
843511 |
|
|
|
|
ARM, Throttle |
1 |
|
|
| 44 |
12-846673 |
|
|
|
|
WASHER, (.265 x .500 x .060) Stainless Steel |
1 |
|
|
| 45 |
11-826709109 |
|
|
|
|
NUT, (.250-28) Stainless Steel |
1 |
|
|
| - |
27-842593A01 |
|
|
|
|
GASKET/SEAL SET, Engine Overhaul |
1 |
|
NOTE: See Gasket/Seal Set - Engine Overhaul Section For Complete Parts Listing |
