850 SCi - Serial 0M952900 Thru 0M956316 - Engine Components (Front Cover And Camshaft)

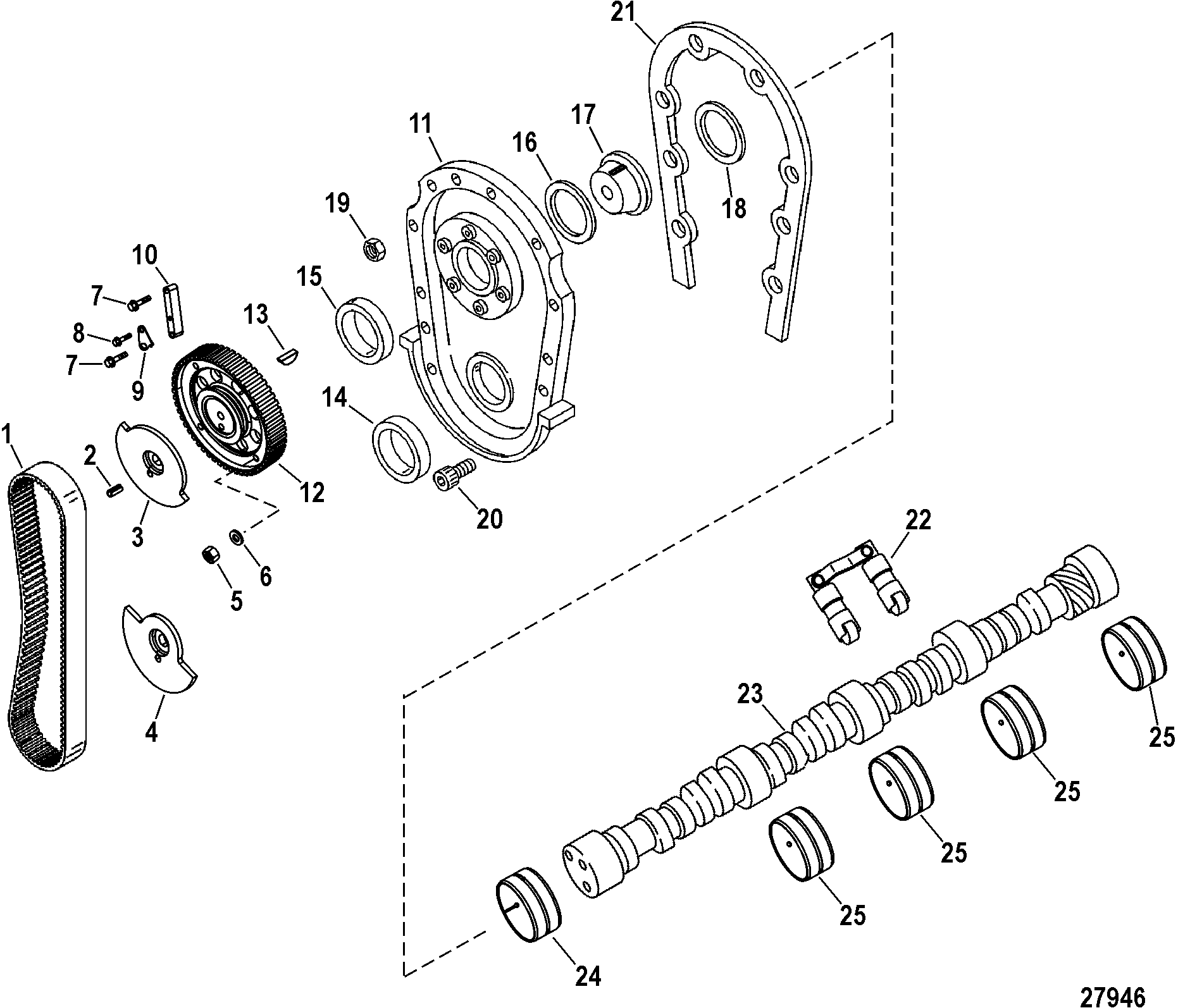

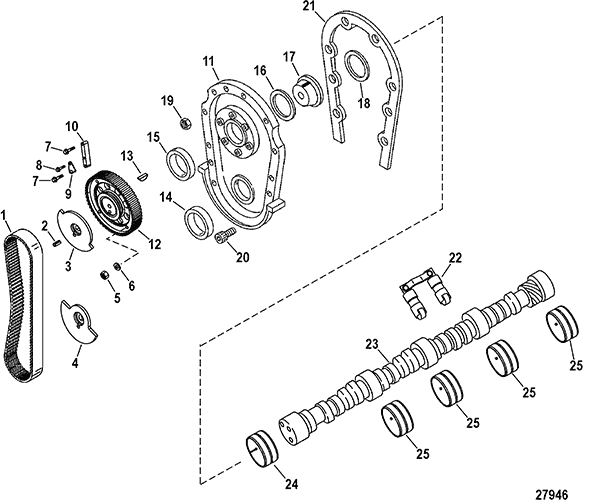

Section Drawing: (Hover or click to view larger)

Other Sub-Sections:

Untitled Document

Ref.	OEM Part #	Hardin #	Mallory #	GLM #	Other #	Description	Num Req.	Superseded From	Special Notes
1	822733					BELT, Timing	1
2	17-F1664					PIN, Spring	1		5
3	842895A02					WHEEL, Cam Position	1	842895	Design I - Part No Longer Available - Order 842895A02 Wheel Kit For Replacement - Includes New Sensor 880609001 SN# 0M905359 THRU 0M950786
4	842895002					WHEEL, Cam Position	1		Design II SN# 0M950787 THRU 0M957024 5
5	11-28770					NUT, (.312-24) Stainless Steel	4		5
6	12-814806					WASHER, (.344 x .688 x .065) Stainless Steel	4		5
7	10-817504					SCREW, (.250-20 x 1.500) Stainless Steel	2		5
8	10-817505					SCREW, (.250-20 x .620) Stainless Steel	1		5
9	840015					POINTER, Timing	1		5
10	840014					BODY, Timing Pointer	1		5
11	822922A03					DRIVE ASSEMBLY, Camshaft Timing	1		5
12	822926					PULLEY, Timing	1		5
13	28-20094					KEY, Woodruff	1		5
14	26-822932					SEAL	1		2,5
15	26-822933					SEAL	1		2,5
16	12-822934					THRUST WASHER, Inner	1		5
17	NSS					NOT SOLD SEPARATE, Cam Adaptor	1		This Part is not sold separately 5
18	12-847746					THRUST WASHER, Outer	1		5
19	11-814101					NUT, (.250-20) Stainless Steel	6		5
20	10-817505					SCREW, (.250-20 x .620) Stainless Steel	8		5
21	27-54529		676-9-61601	700-30440		GASKET, Timing Cover, Front Cover To Block	1		2,5
22	841362A01					ROLLER TAPPET ASSEMBLY, Cam	8		5
23	842547T01					CAMSHAFT	1	496-842547	5
24	23-891530001					BEARING, Cam - Standard	1		NOTE: With Groove 5
25	23-891530					BEARING, Cam - Standard	4		NOTE: Without Groove 5
25	23-891530002					BEARING, Cam - .010 Oversize, One Per Package	AR
25	23-891530003					BEARING, Cam - .020 Oversize, One Per Package	AR
25	23-891530004					BEARING, Cam - .030 Oversize, One Per Package	AR		This Part is No Longer Available
-	27-842593A01					GASKET/SEAL SET, Engine Overhaul	1		NOTE: See Gasket/Seal Set - Engine Overhaul Section For Complete Parts Listing
-	841000A17					PARTIAL ENGINE ASSEMBLY	1
