MX 6.2L MPI MIE - Serial 0L302200 Thru 0M299999 - Closed Cooling System

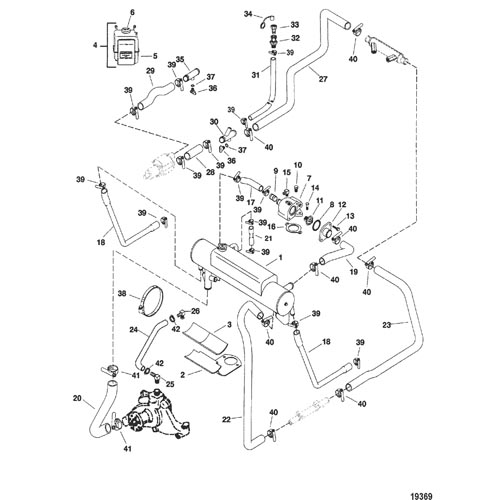

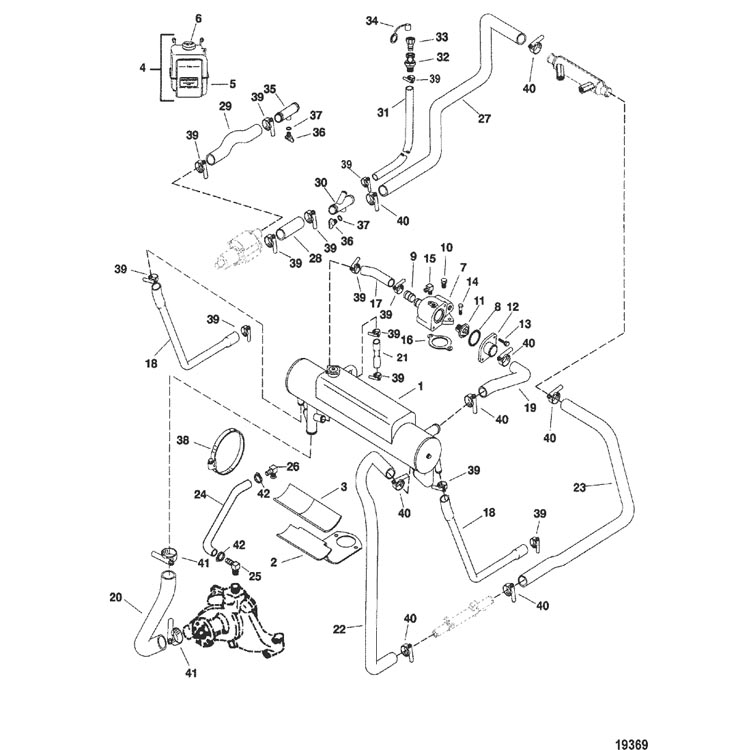

Section Drawing: (Hover or click to view larger)

Other Sub-Sections:

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 860234A1         HEAT EXCHANGER 1
NS 8M0036623         COVER, Heat Exchanger End 2 814875
NS 27-8M0036987         GASKET 2 803644
NS 10-814877         BOLT 2
NS 25-8M0039163         O-RING, Special 2 814878
NS 36-8148791         CAP 1
2 860326A1         BRACKET ASSEMBLY, Heat Exchanger 1
3 18431         PAD 2
4 71587A10         RECOVERY KIT, Coolant 1
NS 32-774572         HOSE, (48.00 Inches Bulk) 1
5 71587A11         BOTTLE, Plastic 1
6 72508         CAP 1
7 861188A1         HOUSING ASSEMBLY, Thermostat 1
8 25-8071341         SEAL 1
9 23-52020         SLEEVE, Hose 1   No Longer Available
10 22-32803         PLUG, Pipe (.375-18) Brass 1
11 991551         THERMOSTAT 1
12 807075A1         COVER 1
13 10-29198         SCREW AND LOCKWASHER, (.312-18 x .875) 2
14 10-58640         SCREW, (.375-16 x 1.25) 2
15 22-35580         FITTING 1
15 22-328022         PLUG, Pipe (.125-27) Brass 1
16 27-530451         GASKET 1
17 32-860380         HOSE 1
18 32-860327         HOSE 2
19 32-807691         HOSE 1
20 32-861059         HOSE 1
21 32-8M0062634         HOSE, (44.00 Inches Bulk) 1 4285069
22 32-860332         HOSE 1
23 32-808045         HOSE, Fuel Cooler to Transmission Oil Cooler 1
24 32-99520         HOSE, Water Pump To Intake Manifold 1 860482
25 22-860346         FITTING, Elbow (90 Degree) (.750) 1
26 22-808042         FITTING, Elbow (90 Degrees) (.50 NPT x .75 Bars) 1
27 32-8080441         HOSE, Molded 1
27 32-860205         HOSE, Oil Cooler to Sea Water Pump 1
28 32-866331         HOSE, (4.00 Inches) 1 80769440
29 32-897145         HOSE, Seawater Pump To T-Fitting 1 821415
30 22-862993         Y-FITTING (w/Drain) 1   No Longer Available
31 32-8M0062634         HOSE, (44.00 Inches Bulk) 1 4285069
32 22-861406         SOCKET 1
33 22-857175         FITTING 1 861405
34 858240         CAP 1 861427
35 861505A1         T-FITTING 1
36 22-806608A02         PLUG KIT, (.500-13) Royal Blue 2 806608A1
37 25-32509         O-RING, (.489 x .070) 2
38 54-815504388         CLAMP, Worm Gear 2 54-59381
54-8M2001524
54-F695920
39 54-815504520         CLAMP, Worm Gear 16   No Longer Available
40 54-815504522         CLAMP, Worm Gear 2
41 54-815504528         CLAMP, Worm Gear 2
42 54-815504512         CLAMP, Worm Gear 2
39 54-815504220         CLAMP, Worm Gear 12 54-32880
54-32780
54-803620
54-882355
40 54-815504222         CLAMP, Worm Gear (1.98 DIameter) 2
41 54-815504232         CLAMP, Worm Gear (2.50 Diameter) 2
42 54-815504232         CLAMP, Worm Gear (2.50 Diameter) 2
NS 19-8M0074364         COVER, Hose Clamp End AR 8079923
- 27-75611A98         GASKET SET, Engine Overhaul 1
