MX 6.2L MPI MIE - Serial 0L302200 Thru 0M299999 - Sea Water Pump Assembly

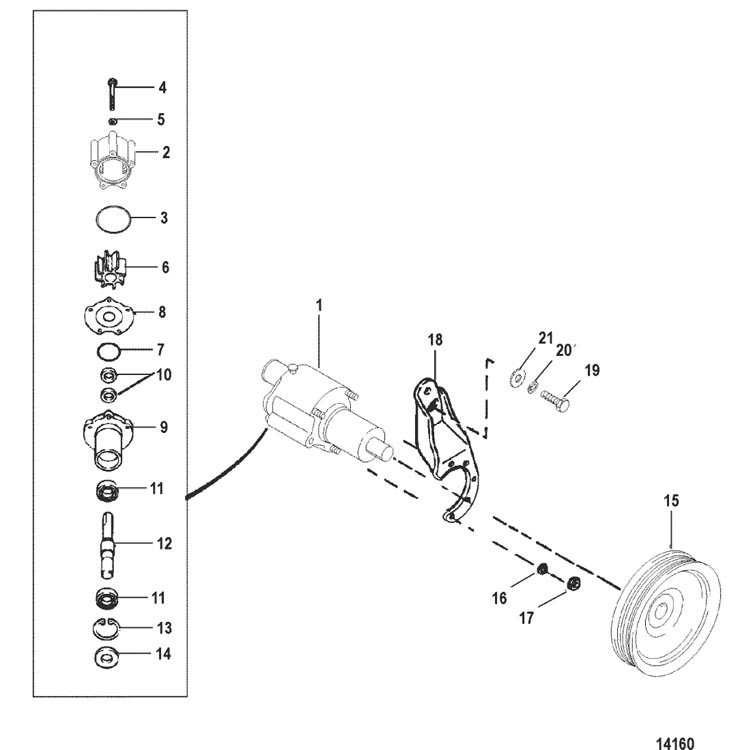

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (Mando)
- Alternator and Brackets (Delco)
- Alternator and Starter (Mando)
- Closed Cooling System
- Crankshaft and Flywheel
- Cylinder Block and Camshaft
- Cylinder Head and Rocker Cover
- Distributor and Ignition Components
- Electrical Components
- Exhaust Manifold and Exhaust Elbow
- Flywheel Housing
- Fuel Filter
- Fuel Pump and Fuel Cooler
- Intake Manifold and Fuel Rails
- Oil Filter and Adaptor
- Oil Pan and Oil Pump
- Pistons and Connecting Rods
- Sea Water Pump Assembly
- Senders and Sensors
- Standard Cooling System
- Starter Motor
- Throttle Body and Flame Arrestor
- Transmission (Down Angle) (Hurth 630)
- Transmission (Down Angle)(Hurth 630)
- Transmission (V-Drive) (Hurth 630)
- Transmission and Engine Mounting (Borg Warner 5000)
- Transmission and Engine Mounting (Borg Warner 71C and 72C)
- Transmission and Engine Mounting (Hurth 630)
- Transmission and Related Parts (Borg Warner 5000)
- Transmission and Related Parts (Borg Warner 71C and 72C)
- Transmission and Related Parts (Hurth 630)
- Water Pump and Front Cover
- Wiring Harness(EFI)
| Ref # | Part Class | Part Number | Description | Comments | Qty | Note |
|---|---|---|---|---|---|---|
| 1 | 0046 | OEM: 530-807151A9, GLM: 700-12097 | PUMP ASSEMBLY Sea Water | 1 | ||
| 2 | 0046 | OEM: 530-807151A14, Sierra: 676-18-3150, GLM: 700-12088 | BODY/IMPELLER KIT | 1 | ||
| 3 | 0025 | OEM: 525-25-33465, Sierra: 676-18-7163, GLM: 700-81430 | O-RING | 1 | ||
| 4 | 0010 | OEM: 525-10-807356 | SCREW (.312-18 x 2.680) | 2 | ||
| 4 | 0010 | OEM: 525-10-74191 | SCREW (.312-18 x 3.250) | 3 | ||
| 5 | 0012 | OEM: 525-12-814806, GLM: 700-21662 | WASHER (.344 x .688 x .065) Stainless Steel | 5 | ||
| 6 | 0047 | OEM: 530-59362T1, GLM: 700-89740 | IMPELLER | 1 | [1] | |
| 7 | 0025 | OEM: 525-25-94288, Sierra: 676-18-7474, GLM: 700-84026 | QUAD RING | 1 | ||
| 8 | 0000 | OEM: 525-94576, Sierra: 676-18-3350, GLM: 700-12501 | WEAR PLATE (INNER) | 1 | ||
| 9 | 0046 | OEM: 525-46-94913A5, GLM: 700-22725 | HOUSING ASSEMBLY Pump | 1 | ||
| 10 | 0026 | OEM: 525-26-90562, Sierra: 676-18-2011, GLM: 700-85080 | SEAL (1.254 x .312) | 2 | ||
| 11 | 0030 | OEM: 525-30-72961, Sierra: 676-18-1398, GLM: 700-21625 | BEARING Ball | 2 | ||
| 12 | 0000 | OEM: 525-59501A1, GLM: 700-22401 | SHAFT | 1 | ||
| 13 | 0053 | OEM: 525-53-23720, GLM: 700-21772 | RING Retaining | 1 | ||
| 14 | 0026 | OEM: 525-26-72785, Sierra: 676-18-0531, GLM: 700-85810 | SEAL | 1 | ||
| 15 | 0000 | 861579 | PULLEY | 1 | [2] | |
| 16 | 0013 | OEM: 525-13-39107, GLM: 700-21496 | LOCKWASHER (.312-24) | 3 | ||
| 17 | 0011 | OEM: 525-11-21908 | NUT (.312-18) Cad Plated | 3 | ||
| 18 | 0000 | OEM: 525-8077491 | BRACKET | 1 | ||
| 19 | 0010 | OEM: 525-10-34353 | SCREW (.375-16 x 1.00) | 2 | ||
| 20 | 0013 | OEM: 525-13-35048, GLM: 700-21493 | LOCKWASHER (.375) | 2 | ||
| 21 | 0012 | OEM: 525-12-34714 | WASHER | 1 |
PART NOTES:
[1] - Alternate part numbers:
59362Q01QS
59362T 1Service Part
[2] - FOR DETAILS, REFER TO MERCRUISER PARTS BULLETIN 98-1
