MX 6.2L MPI MIE - Serial 0L302200 Thru 0M299999 - Fuel Pump and Fuel Cooler

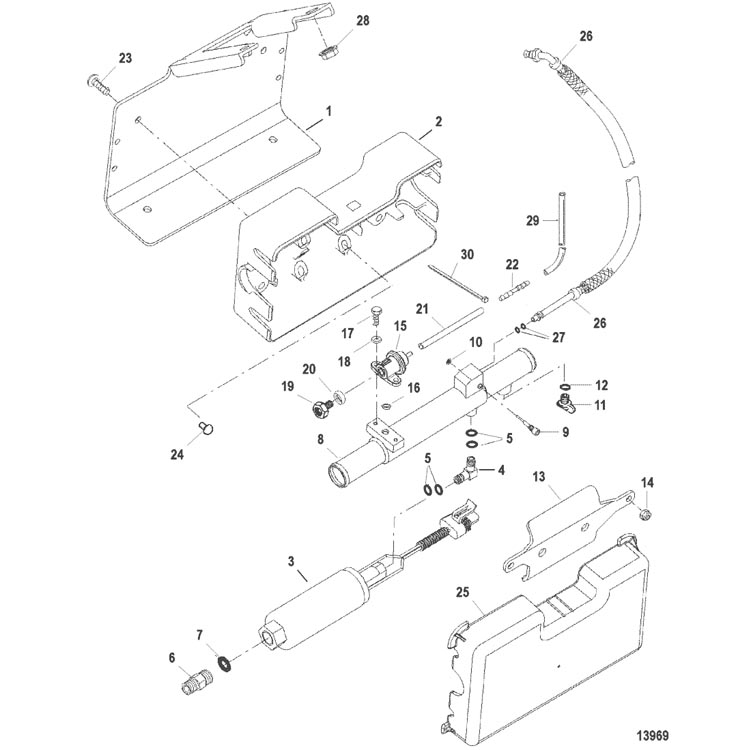

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (Mando)
- Alternator and Brackets (Delco)
- Alternator and Starter (Mando)
- Closed Cooling System
- Crankshaft and Flywheel
- Cylinder Block and Camshaft
- Cylinder Head and Rocker Cover
- Distributor and Ignition Components
- Electrical Components
- Exhaust Manifold and Exhaust Elbow
- Flywheel Housing
- Fuel Filter
- Fuel Pump and Fuel Cooler
- Intake Manifold and Fuel Rails
- Oil Filter and Adaptor
- Oil Pan and Oil Pump
- Pistons and Connecting Rods
- Sea Water Pump Assembly
- Senders and Sensors
- Standard Cooling System
- Starter Motor
- Throttle Body and Flame Arrestor
- Transmission (Down Angle) (Hurth 630)
- Transmission (Down Angle)(Hurth 630)
- Transmission (V-Drive) (Hurth 630)
- Transmission and Engine Mounting (Borg Warner 5000)
- Transmission and Engine Mounting (Borg Warner 71C and 72C)
- Transmission and Engine Mounting (Hurth 630)
- Transmission and Related Parts (Borg Warner 5000)
- Transmission and Related Parts (Borg Warner 71C and 72C)
- Transmission and Related Parts (Hurth 630)
- Water Pump and Front Cover
- Wiring Harness(EFI)
| Ref # | Part Class | Part Number | Description | Comments | Qty | Note |
|---|---|---|---|---|---|---|
| 1 | 0000 | OEM: 525-807951T | BRACKET Fuel Cooler | 1 | ||
| 2 | 0000 | OEM: 525-807685T | INSULATOR | 1 | ||
| 3 | 0000 | 861156A1 | PUMP ASSEMBLY | 1 | ||
| 4 | 0022 | OEM: 525-22-807783A1 | FITTING ASSEMBLY 90 Degree | 1 | ||
| 5 | 0025 | OEM: 525-25-805063 | O-RING (.301 x .070) | 4 | [1] | |
| 6 | 0022 | OEM: 525-22-808001A1 | FITTING ASSEMBLY | 1 | ||
| 7 | 0025 | OEM: 525-25-805062 | O-RING (.530 x .082) | 1 | [1] | |
| 8 | 0000 | OEM: 525-861267A1 | COOLER KIT Fuel | 1 | ||
| 9 | 0010 | 861303 | SCREW (.250-28) Special | 1 | ||
| 10 | 0053 | OEM: 525-53-861414 | RING Retaining | 1 | ||
| 11 | 0022 | 806608A1 | PLUG KIT (.500-13) Royal Blue | 1 | [2] | |
| 12 | 0025 | 32509 | O-RING (.489 x .070) | 1 | [1] | |
| 13 | 0000 | OEM: 525-807979T | BRACKET | 1 | ||
| 14 | 0011 | OEM: 525-11-29598 | NUT (.250-28) Stainless Steel | 2 | ||
| 15 | 0000 | OEM: 530-807952A1 | REGULATOR KIT Fuel Pressure | 1 | ||
| 16 | 0035 | OEM: 525-35-805406 | FILTER | 1 | ||
| 17 | 0010 | OEM: 525-10-852368 | SCREW (#10-24 x .750) | 2 | ||
| 18 | 0012 | OEM: 525-12-89302 | WASHER (.203 x .406 x .040) | 2 | ||
| 19 | 0022 | OEM: 525-22-808002A1 | FITTING KIT | 1 | ||
| 20 | 0012 | OEM: 525-12-36533 | WASHER (.328 x .562 x .0312) Copper | 1 | ||
| 21 | 0032 | 80617379 | HOSE (52.00 Inches Bulk) | 1 | ||
| 22 | 0022 | OEM: 525-22-807971 | CONNECTOR Hose | 1 | ||
| 23 | 0010 | OEM: 525-10-808005 | SCREW (.250-20 x .500) | 4 | ||
| 24 | 0000 | OEM: 525-269011 | BUMPER Rubber | 8 | ||
| 25 | 0000 | 807930 | INSULATOR | 1 | ||
| 26 | 0032 | 861571A1 | LINE Fuel (FUEL COOLER TO TBI ) | 1 | ||
| 27 | 0025 | OEM: 525-25-805063 | O-RING (.301 x .070) | 2 | [1] | |
| 28 | 0011 | OEM: 525-11-860069 | NUT (.375-16) | 2 | ||
| 28 | 0011 | OEM: 525-11-4013610 | NUT (M10) Stainless Steel | 2 | [3] | |
| 29 | 0032 | 80804762 | HOSE (.2187 x .440) | 1 | ||
| 30 | 0054 | OEM: 525-54-816311T | TIE STRAP (8.00 Inches) | AR | ||
| - | 0027 | OEM: 525-27-807756A96 | GASKET SET Engine Overhaul | 1 |
PART NOTES:
[1] - COMPONENT OF ENGINE OVERHAUL GASKET SET 807756A96
[2] - Alternate part numbers:
806608A 1Service Part
806608Q01QS
[3] - METRIC FASTENER CHANGE (S/N 0L320000 AND UP)
