MX 6.2L MPI MIE - Serial 0L302200 Thru 0M299999 - Standard Cooling System

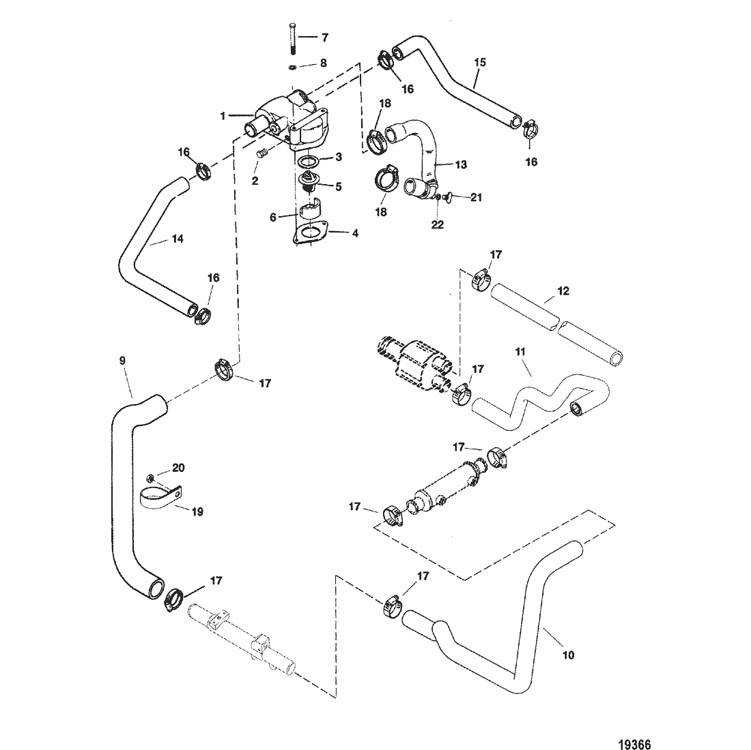

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (Mando)
- Alternator and Brackets (Delco)
- Alternator and Starter (Mando)
- Closed Cooling System
- Crankshaft and Flywheel
- Cylinder Block and Camshaft
- Cylinder Head and Rocker Cover
- Distributor and Ignition Components
- Electrical Components
- Exhaust Manifold and Exhaust Elbow
- Flywheel Housing
- Fuel Filter
- Fuel Pump and Fuel Cooler
- Intake Manifold and Fuel Rails
- Oil Filter and Adaptor
- Oil Pan and Oil Pump
- Pistons and Connecting Rods
- Sea Water Pump Assembly
- Senders and Sensors
- Standard Cooling System
- Starter Motor
- Throttle Body and Flame Arrestor
- Transmission (Down Angle) (Hurth 630)
- Transmission (Down Angle)(Hurth 630)
- Transmission (V-Drive) (Hurth 630)
- Transmission and Engine Mounting (Borg Warner 5000)
- Transmission and Engine Mounting (Borg Warner 71C and 72C)
- Transmission and Engine Mounting (Hurth 630)
- Transmission and Related Parts (Borg Warner 5000)
- Transmission and Related Parts (Borg Warner 71C and 72C)
- Transmission and Related Parts (Hurth 630)
- Water Pump and Front Cover
- Wiring Harness(EFI)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 860256A4 | HOUSING ASSEMBLY, Thermostat | 1 | ||||||
| 2 | 22-32803 | PLUG, Pipe (.375-18) Brass | 2 | ||||||
| 3 | 27-806871 | GASKET | 1 | ||||||
| 4 | 27-530451 | GASKET | 1 | ||||||
| 5 | 8M0091470 | THERMOSTAT, 71DegreeC (160 Degree F) | 1 | 807252T2 | |||||
| 6 | 23-806922 | SLEEVE | 1 | ||||||
| 7 | 10-47688 | SCREW, (.375-16 x 2.750) | 2 | ||||||
| 8 | 13-35048 | LOCKWASHER, (.375) | 2 | ||||||
| 9 | 32-808033 | HOSE, Molded | 1 | ||||||
| 10 | 32-808045 | HOSE, Fuel Cooler to Transmission Oil Cooler | 1 | ||||||
| 11 | 32-8080441 | HOSE, Molded | 1 | ||||||
| 12 | 32-8M0062666 | HOSE, (96.00 Inches Bulk) | 1 | 1743579 | |||||
| 13 | 32-861590A05 | HOSE ASSEMBLY, Thermostat Housing to Water Pump With Drain | 1 | 861590A2 | |||||
| 14 | 32-8066351 | HOSE | 1 | ||||||
| 15 | 32-807697 | HOSE, Thermostat Housing to Starboard Manifold | 1 | ||||||
| 16 | 54-815504220 | CLAMP, Worm Gear | 4 | 54-32880 54-32780 54-803620 54-882355 |
|||||
| 17 | 54-815504222 | CLAMP, Worm Gear (1.98 DIameter) | 7 | ||||||
| 18 | 54-815504232 | CLAMP, Worm Gear (2.50 Diameter) | 2 | ||||||
| 19 | 54-47715 | CLIP | 1 | ||||||
| 20 | 11-29250 | NUT, (.312-24) | 1 | ||||||
| 21 | 22-806608A02 | PLUG KIT, (.500-13) Royal Blue | 1 | 806608A1 | |||||
| 22 | 25-32509 | O-RING, (.489 x .070) | 1 | ||||||
| NS | 19-8M0074364 | COVER, Hose Clamp End | AR | 8079923 | |||||
| - | 27-75611A98 | GASKET SET, Engine Overhaul | 1 |
