MX 6.2L MPI MIE - Serial 0L302200 Thru 0M299999 - Oil Filter and Adaptor

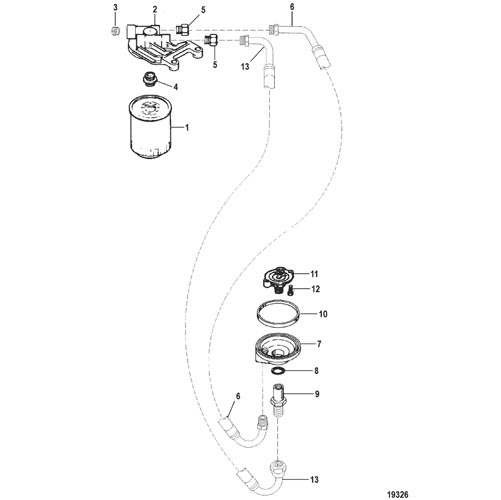

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (Mando)
- Alternator and Brackets (Delco)
- Alternator and Starter (Mando)
- Closed Cooling System
- Crankshaft and Flywheel
- Cylinder Block and Camshaft
- Cylinder Head and Rocker Cover
- Distributor and Ignition Components
- Electrical Components
- Exhaust Manifold and Exhaust Elbow
- Flywheel Housing
- Fuel Filter
- Fuel Pump and Fuel Cooler
- Intake Manifold and Fuel Rails
- Oil Filter and Adaptor
- Oil Pan and Oil Pump
- Pistons and Connecting Rods
- Sea Water Pump Assembly
- Senders and Sensors
- Standard Cooling System
- Starter Motor
- Throttle Body and Flame Arrestor
- Transmission (Down Angle) (Hurth 630)
- Transmission (Down Angle)(Hurth 630)
- Transmission (V-Drive) (Hurth 630)
- Transmission and Engine Mounting (Borg Warner 5000)
- Transmission and Engine Mounting (Borg Warner 71C and 72C)
- Transmission and Engine Mounting (Hurth 630)
- Transmission and Related Parts (Borg Warner 5000)
- Transmission and Related Parts (Borg Warner 71C and 72C)
- Transmission and Related Parts (Hurth 630)
- Water Pump and Front Cover
- Wiring Harness(EFI)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 35-866340Q03 | FILTER, Oil | 1 | 802885Q | |||||
| 2 | 814420A5 | BRACKET | 1 | ||||||
| 2 | 817403A4 | BRACKET ASSEMBLY | 1 | No Longer Available | |||||
| 3 | 22-384071 | FITTING, (1/2-14) (1/2-14) | 2 | ||||||
| 4 | 22-814822 | FITTING | 1 | ||||||
| 5 | 22-805563 | CONNECTOR, (.500 Inch NPTF To .500 Inch Inverted Flare) | 2 | ||||||
| 6 | 32-8062621 | HOSE | 1 | ||||||
| 6 | 32-806634T | HOSE | 1 | ||||||
| 6 | 32-8061783 | HOSE | 1 | ||||||
| 7 | 35-818400A1 | ADAPTOR | 1 | 807080T | |||||
| 8 | 26-42077 | SEAL | 1 | ||||||
| 9 | 22-806121 | FITTING | 1 | ||||||
| 10 | 27-91892 | GASKET | 1 | ||||||
| 11 | 71920 | VALVE ASSEMBLY, Filter | 1 | 53338 | |||||
| 12 | 10-54786 | SCREW, (.312-18 x 1.250) | 2 | ||||||
| 13 | 32-861618T | HOSE | 1 | ||||||
| 13 | 32-8062613 | HOSE | 1 | ||||||
| - | 27-75611A98 | GASKET SET, Engine Overhaul | 1 |
