MX 6.2L MPI MIE - Serial 0L302200 Thru 0M299999 - Transmission and Engine Mounting (Borg Warner 5000)

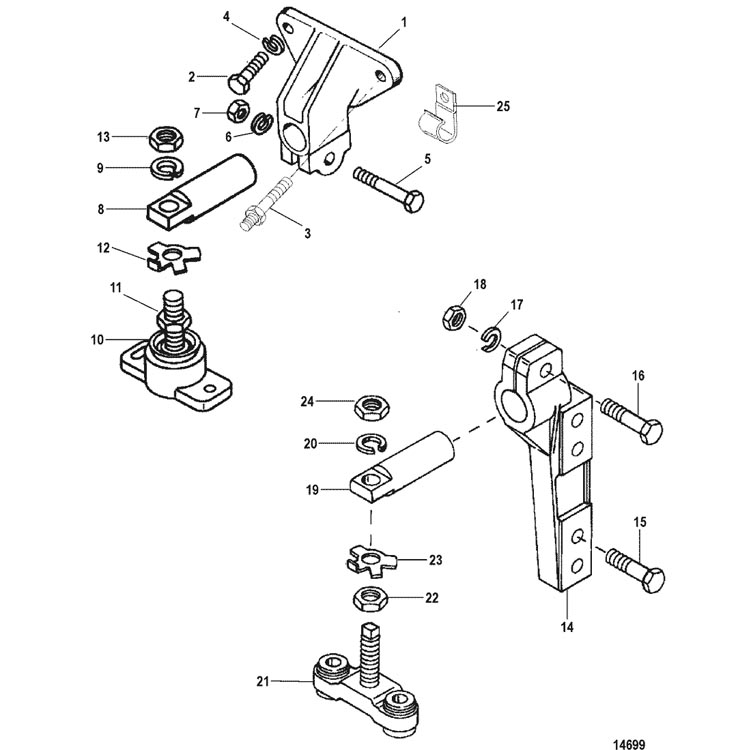

Section Drawing: (Hover or click to view larger)

Other Sub-Sections:

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 71128A2         BRACKET 2
2 10-68101         SCREW, (.375-16 x 1.375) 2
3 16-8M2004610         STUD, (.375-16 x 2.130) 4 805357
4 13-35048         LOCKWASHER, (.375) 4
5 10-37269         SCREW, (.437-14 x 2.00) 2
6 13-32993         LOCKWASHER, (.437) 2
7 11-29553         NUT, (.437-14) 2
8 66166A4         TRUNNION 2
9 13-68102         LOCKWASHER, (.750) 2
10 66284A2         BASE ASSEMBLY, Engine End 2
11 11-20739         NUT, (.750-16), Jam 2
12 14-66658         TAB WASHER 2
13 11-20739         NUT, (.750-16), Jam 2
14 805496T         BRACKET 1
14 805496T1         BRACKET 1
14 807724T         BRACKET 1
14 807725T         BRACKET 1
15 10-4009760         SCREW, (M12 x 60) 4
16 10-57357         SCREW, (.437-13 x 2.250) 2
16 10-47724         SCREW, (.437-14 x 3.00) 2
17 13-32993         LOCKWASHER, (.437) 2
18 11-29553         NUT, (.437-14) 2
19 66166A4         TRUNNION 2
20 13-68102         LOCKWASHER, (.750) 2
21 816326A2         BASE ASSEMBLY, Transmission End 2
22 11-816331         NUT, (.750-16), Jam 2
23 14-66658         TAB WASHER 2
24 11-20739         NUT, (.750-16), Jam 2
25 54-78945         J CLAMP, Harness Support, Clip 1
