MX 6.2L MPI MIE - Serial 0L302200 Thru 0M299999 - Transmission and Engine Mounting (Borg Warner 71C and 72C)

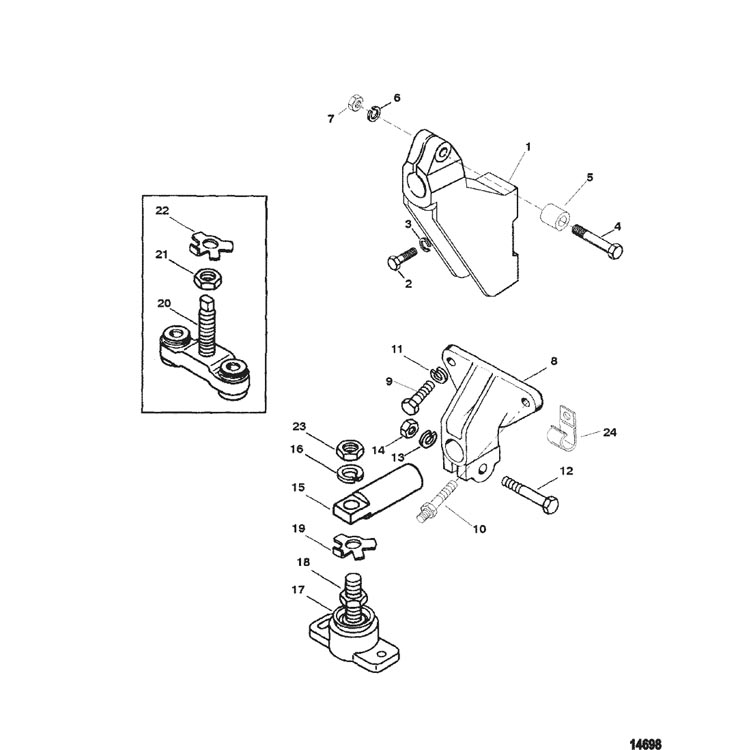

Section Drawing: (Hover or click to view larger)

Other Sub-Sections:

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 66167A2         BRACKET, Rear 2   No Longer Available
1 52158A20         BRACKET, Rear 2
2 10-37269         SCREW, (.437-14 x 2.00) 4
2 10-47462         SCREW, (.437-14 x 1.250) 4
3 13-32993         LOCKWASHER, (.437) 4
4 10-57357         SCREW, (.437-13 x 2.250) 2
4 10-47724         SCREW, (.437-14 x 3.00) 2
5 54-47528         CLAMP, Mount Adjusting 4
6 13-32993         LOCKWASHER, (.437) 2
7 11-29553         NUT, (.437-14) 2
8 71128A2         BRACKET 2
9 10-68101         SCREW, (.375-16 x 1.375) 2
10 16-8M2004610         STUD, (.375-16 x 2.130) 4 805357
11 13-35048         LOCKWASHER, (.375) 4
12 10-37269         SCREW, (.437-14 x 2.00) 2
13 13-32993         LOCKWASHER, (.437) 2
14 11-29553         NUT, (.437-14) 2
15 66166A4         TRUNNION 4
16 13-68102         LOCKWASHER, (.750) 4
17 66284A2         BASE ASSEMBLY, Engine End 2
18 11-20739         NUT, (.750-16), Jam 2
19 14-66658         TAB WASHER 2
20 816326A2         BASE ASSEMBLY, Transmission End 2
21 11-816331         NUT, (.750-16), Jam 2
22 14-66658         TAB WASHER 2
23 11-20739         NUT, (.750-16), Jam 4
24 54-78945         J CLAMP, Harness Support 1
