MX 6.2L MPI MIE - Serial 0L302200 Thru 0M299999 - Crankshaft and Flywheel

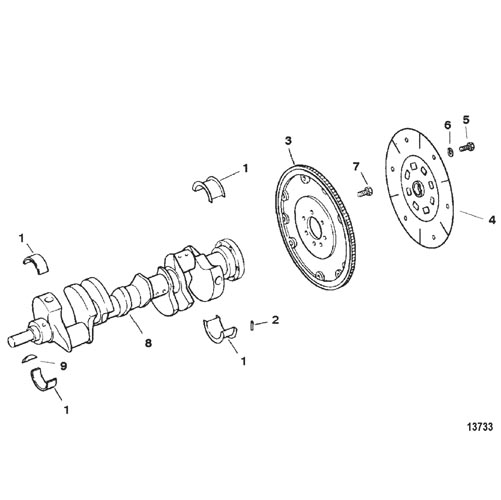

Section Drawing: (Hover or click to view larger)

Other Sub-Sections:

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 23-818465         BEARING SET, 5 Pair (STANDARD) 1
1 23-818466         BEARING SET, 5 Pair (.001 USA) AR
1 23-818467         BEARING SET, 5 Pair (.010 USA) AR
1 23-818468         BEARING SET, 5 Pair (.020 USA) AR
1 31-849396         BEARING SET, Standard - 5 Pair (STANDARD) 1
1 31-849395         BEARING SET, (.001 Oversize) 5 Pair (.001 O.S.) AR
1 31-849394         BEARING SET, (.001 Undersize) 5 Pair (.001 USA) AR
2 17-43504         PIN, Dowel 2
3 222-8M0083286         FLYWHEEL 1 9558
4 860125T         DRIVEPLATE ASSEMBLY 1
5 10-35091         SCREW, (.375-16 x 1.00) (3/8-16 X 1 IN.) 6
4 862975A1         DRIVEPLATE ASSEMBLY 1
5 10-34354         SCREW, (.375-16 x 1.50) 1
6 13-35048         LOCKWASHER, (.375) 6
7 10-845757         SCREW, (.437-20 x 1.00) 6 49845
8 429-8M0054508         CRANKSHAFT 1 95211
8 429-863323T1         CRANKSHAFT 1
9 28-34466         KEY 2
9 28-862594         KEY, Crankshaft 1
- 8M0088397         LONGBLOCK ASSEMBLY (350 Mag) 1 862760A2
- 865108A02         LONGBLOCK ASSEMBLY (MX 6.2L) 1
