MX 6.2L MPI MIE - Serial 0L302200 Thru 0M299999 - Flywheel Housing

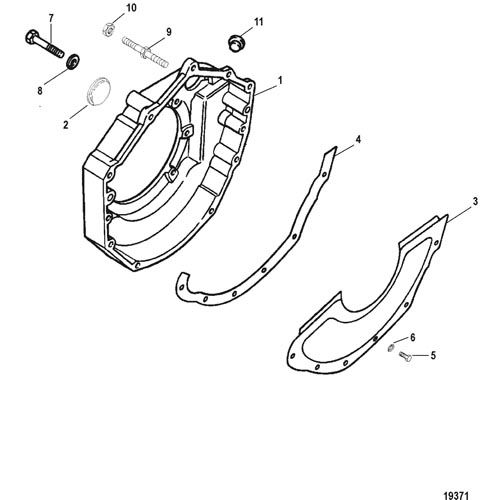

Section Drawing: (Hover or click to view larger)

Other Sub-Sections:

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 814309A1         HOUSING ASSEMBLY 1
2 19-12304         PLUG 1
3 818718A4         COVER ASSEMBLY 1
4 27-86015         GASKET 1
5 10-98253         SCREW, (.250-20 x .500) 7
6 13-26992         LOCKWASHER, (.250) Stainless Steel 7
7 10-47277         SCREW, (.312-24 x .750) 1
7 10-34353         SCREW, (.375-16 x 1.00) 1
7 10-37612         SCREW, (.375-16 x 1.250) 2
7 10-47688         SCREW, (.375-16 x 2.750) 2
8 13-39107         LOCKWASHER, (.312-24) 1
8 13-35048         LOCKWASHER, (.375) 5
9 16-861316         STUD 2
10 11-82671112         NUT (3/8-16) 2 99405
11 19-38606         CAPLUG, (#10) 1
