| Ref. |
OEM Part # |
Hardin # |
Mallory # |
GLM # |
Other # |
Description |
Num Req. |
Superceded From |
Special Notes |
| - |

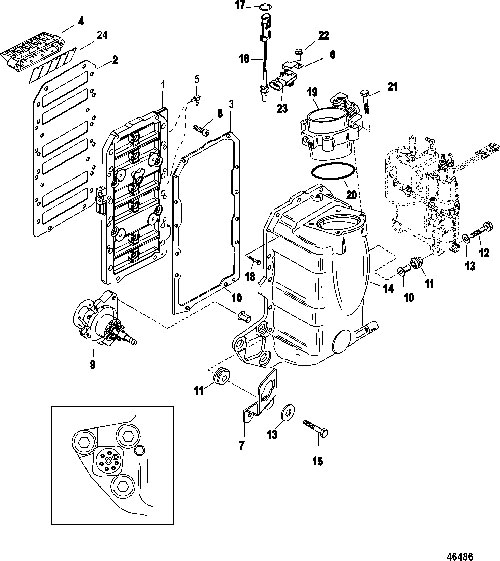

8M0055651 |
|
|
|
|
AIR HANDLER ASSEMBLY |
1 |
|
|
| 1 |
8M0055654 |
|
|
|
|
ADAPTER PLATE KIT |
1 |
|
|
| 2 |
27-840484 |
|
|
|
|
GASKET |
1 |
|
|
| 3 |
27-840485 |
|
|
|
|
GASKET |
1 |
|
|
| 4 |
840805T1 |
|
|
|
|
REED BLOCK ASSEMBLY |
6 |
|
|
| 5 |
22-15133 |
|
|
|
|
FITTING |
2 |
|
|
| 6 |
884522 |
|
|
|
|
BRACKET, MAP Sensor |
1 |
|
|
| 7 |
892296 |
|
|
|
|
BRACKET |
1 |
|
|
| 8 |
10-55715 |
|
|
|
|
SCREW, (.250-20 x .880) |
12 |
|
|
| 9 |
8M0101629 |
|
|
|
|
PUMP ASSEMBLY, Oil |
1 |
857149T05 |
|
| 10 |
23-855364 |
|
|
|
|
BUSHING |
6 |
|
|
| 11 |
25-855362001 |
|
|
|
|
GROMMET |
6 |
|
|
| 12 |
10-81893435 |
|
|
|
|
SCREW, (M8 x 35) |
3 |
|
|
| 13 |
12-817274 |
|
|
|
|
WASHER, (.344 x 1.00 x .063) Stainless Steel |
6 |
|
|
| 14 |
850248T03 |
|
|
|
|
PLENUM KIT, Air |
1 |
|
|
| 15 |
10-81893430 |
|
|
|
|
SCREW, (M8 x 30) |
3 |
|
|
| 16 |
885342002 |
|
|
|
|
SENSOR ASSEMBLY |
1 |
|
|
| 17 |
25-896699 |
|
|
|
|
O-RING, (1.78 mm x .08 mm) |
1 |
|
|
| 18 |
10-883942 |
|
|
|
|
SCREW, (M4 x 16) |
2 |
|
|
| 19 |
855422A1 |
|
|
|
|
THROTTLE BODY KIT |
1 |
|
|
| 20 |
25-855423 |
|
|
|
|
O-RING |
1 |
|
|
| 21 |
10-82130040 |
|
|
|
|
SCREW, (M6 x 40) |
4 |
|
|
| 22 |
10-1993716 |
|
|
|
|
SCREW, (M6 x 16) |
1 |
|
|
| 23 |
854445 |
|
|
|
|
SENSOR, MAP |
1 |
|
|
| 24 |
8M0020312 |
|
|
|
|
REED |
12 |
|
|
| - |
61-848040A51 |
|
|
|
|
POWERHEAD ASSEMBLY, Partial |
1 |
|
|
