200XS SST - Serial 1E050629 and Up - Transom Bracket Assembly

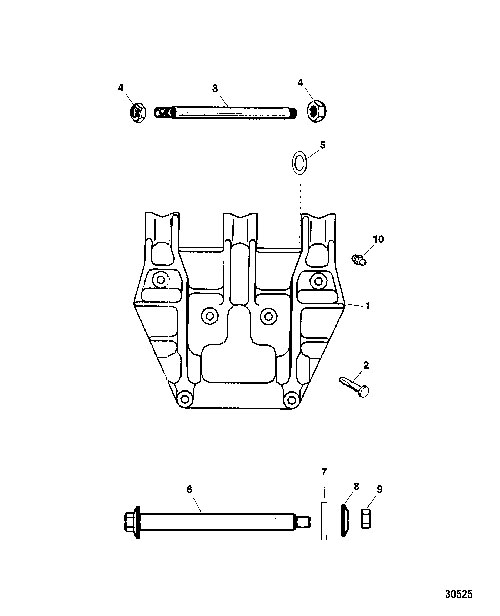

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Air Compressor Components, SN 1B884880 and below
- Air Compressor Components, SN 1B884881 and up
- Air Handler Components
- Air Handler/Flywheel Cover
- Air Hoses
- Bottom Cowl
- Coil Plate Assembly
- Crankshaft, Pistons and Connecting Rods
- Cylinder Block and End Caps
- Cylinder Head
- Driveshaft Housing
- Electrical Plate Assembly
- Exhaust Plate
- Flywheel/Alternator
- Fuel Hoses
- Fuel Hoses
- Fuel Pump
- Fuel Rails
- Gasket Set Components, Complete Powerhead and Lower Unit
- Gear Housing(Driveshaft)(IV SSM R/L)
- Gear Housing(Prop Shaft)(IV SSM R/L)
- Oil Injection Components
- Oil Lines
- PCM Mounting
- Starter Motor
- Throttle Lever
- Top Cowl
- Transom Bracket Assembly
- Trim Cylinder Assembly
- Vapor Separator Components
- Water Hoses
| Note: THESE PARTS ARE SOLD (AS IS) WITH NO WARRANTY | |||||||||
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 8476631 | BRACKET, Transom - Black | 1 | ||||||
| 2 | 17-44133 | PIN | 2 | ||||||
| 3 | 822106T01 | TILT TUBE ASSEMBLY | 1 | ||||||
| 4 | 11-82671327 | NUT, (1.0-14) | 2 | ||||||
| 5 | 15-21158A2 | SHIM KIT | 1 | ||||||
| 6 | 822075 | PIN, Trim | 1 | ||||||
| 7 | 12-59378 | WASHER | 1 | No Longer Available | |||||
| 8 | 822076 | RETAINER | 1 | ||||||
| 9 | 11-82671317 | NUT, (.500-20) | 1 | ||||||
| 10 | 22-69059 | FITTING | 2 | ||||||
| - | 56-11241A18 | ATTACHING KIT, Transom | 1 | ||||||
| - | 10-46196 | SCREW, (.437-20 x 4.00) | 2 | ||||||
| - | 10-70832 | SCREW, (.437-20 x 5.00) | 4 | ||||||
| - | 12-44163 | WASHER, (.450 x 1.75 x .12) | 6 | ||||||
| - | 12-45176 | WASHER, (.453 x .812 x .105) Stainless Steel | 12 | ||||||
| - | 11-34933 | NUT, (.437-20) Stainless Steel | 6 | ||||||
