| Ref. |
OEM Part # |
Hardin # |
Mallory # |
GLM # |
Other # |
Description |
Num Req. |
Superceded From |
Special Notes |

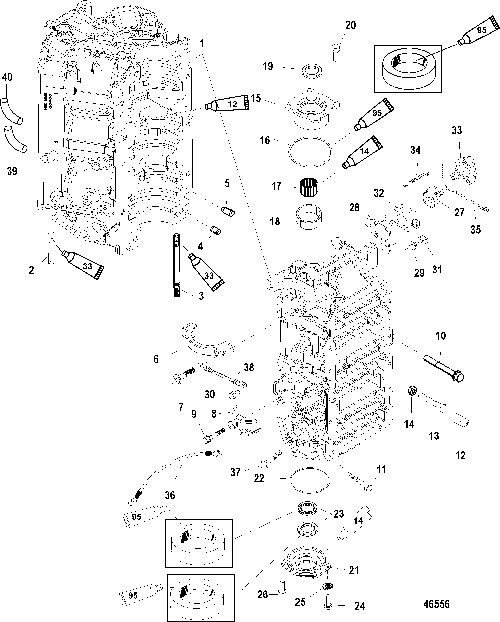

| 1 |
884-8M8027364 |
|
|
|
|
CYLINDER BLOCK ASSEMBLY |
1 |
|
|
| 2 |
16-8M0034455 |
|
|
|
|
STUD, 1.750 |
6 |
|
|
| 3 |
16-670654 |
|
|
|
|
STUD, (.375-16/.375-24 x 5.620) |
2 |
|
|
| 3 |
16-8M0034454 |
|
|
|
|
STUD, (.375-16/.375-24 x 6.87) |
2 |
|
|
| 4 |
17-43044 |
|
|
|
|
PIN, Dowel - Without Hole (.375 x .625) |
2 |
|
|
| 5 |
17-8M0036405 |
|
|
|
|
PIN (BEARING RACE) |
2 |
|
|
| 6 |
8M0041759 |
|
|
|
|
BRACKET |
1 |
|
|
| 7 |
10-828213 |
|
|
|
|
SCREW, (.312-18 x 1.500) Hex Flange |
2 |
|
|
| 8 |
76867 |
|
|
|
|
COVER (Bottom) |
1 |
|
|
| 9 |
10-828214 |
|
|
|
|
SCREW, (.312-18 x 2.00) Hex Flange |
2 |
|
|
| 10 |
10-66717 |
|
|
|
|
SCREW, (.375-16 x 3.250) |
8 |
|
|
| 11 |
10-74824 |
|
|
|
|
SCREW, (.312-18 x 1.250) |
6 |
|
|
| 12 |
26852 |
|
|
|
|
CAP, Nylon |
1 |
|
|
| 13 |
10-856832 |
|
|
|
|
SCREW, (.250-20 x 1.750) |
1 |
|
|
| 14 |
11-64015 |
|
|
|
|
NUT, (.250-20) |
1 |
|
|
| 15 |
1159-832760T1 |
|
|
|
|
END CAP ASSEMBLY |
1 |
|
|
| 16 |
25-54029 |
|
|
|
|
O-RING, (2.800 x .103) |
1 |
|
|
| 17 |
31-16756A4 |
|
|
|
|
BEARING KIT |
1 |
|
|
| 18 |
NSS |
|
|
|
|
NOT SOLD SEPARATE, Bearing Race |
1 |
|
|
| 19 |
26-41953 |
|
|
|
|
SEAL |
1 |
|
|
| 20 |
10-881190 |
|
|
|
|
SCREW, (.312-18 x 1.00) |
4 |
|
|
| 21 |
1156-8M0050233 |
|
|
|
|
END CAP ASSEMBLY |
1 |
|
|
| 22 |
25-62700 |
|
|
|
|
O-RING, (3.237 x .103) |
1 |
|
|
| 23 |
26-41953 |
|
|
|
|
SEAL |
2 |
|
|
| 24 |
10-28636 |
|
|
|
|
SCREW, (.250-20 x .750) |
2 |
|
|
| 25 |
13-26992 |
|
|
|
|
LOCKWASHER, (.250) Stainless Steel |
2 |
|
|
| 26 |
10-8M0046139 |
|
|
|
|
SCREW, Flat Head (.250-20 x 0.75) |
2 |
|
|
| 27 |
8519371 |
|
|
|
|
LEVER, Throttle Position Indicator |
1 |
|
|
| 28 |
8538821 |
|
|
|
|
BRACKET, Throttle Position Indicator Mount |
1 |
|
|
| 29 |
23-856954 |
|
|
|
|
BUSHING |
3 |
|
|
| 30 |
10-69035 |
|
|
|
|
SCREW AND LOCKWASHER, (.250-20 x .625) Stainless Steel |
1 |
|
|
| 31 |
25-834985 |
|
|
|
|
GROMMET |
3 |
|
|
| 32 |
83295211 |
|
|
|
|
INDICATOR, Throttle Position (Inside) |
1 |
|
|
| 33 |
8582261 |
|
|
|
|
COVER, TPS |
1 |
|
|
| 34 |
10-8508281 |
|
|
|
|
SCREW, (#10-32 x 2.00), TPS to Bracket |
3 |
|
|
| 35 |
8M0008117 |
|
|
|
|
LINK ASSEMBLY |
1 |
|
|
| 36 |
84-88439A26 |
|
|
|
|
CABLE ASSEMBLY, Battery - Negative |
1 |
|
|
| 36 |
84-88439A46 |
|
|
|
|
CABLE ASSEMBLY, Battery - Positive |
1 |
|
|
| 37 |
10-81893414 |
|
|
|
|
SCREW, (M8 x 14) |
1 |
|
|
| 38 |
84-93388A1 |
|
|
|
|
CABLE ASSEMBLY, (6.00 Inches) Black |
1 |
|
|
| 39 |
32-8M0108355 |
|
|
|
|
HOSE, (57.00 Inches Bulk) (Cut to 1-1/2 Inches) |
2 |
8M0047428 |
|
| 40 |
32-8M0108355 |
|
|
|
|
HOSE, (57.00 Inches Bulk) (Cut to 1-1/4 Inches) |
2 |
8M0047428 |
|
