200XS SST - Serial 1E050629 and Up - PCM Mounting

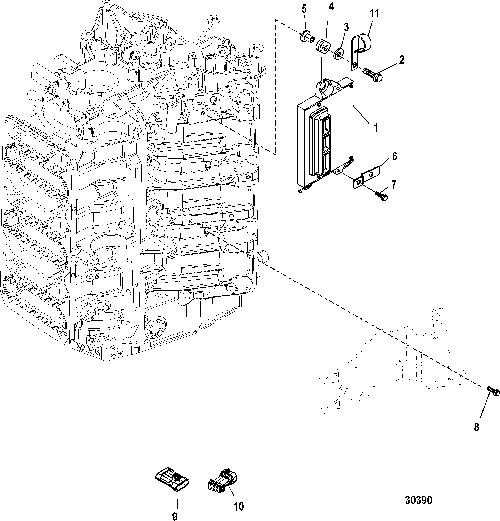

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Air Compressor Components, SN 1B884880 and below
- Air Compressor Components, SN 1B884881 and up
- Air Handler Components
- Air Handler/Flywheel Cover
- Air Hoses
- Bottom Cowl
- Coil Plate Assembly
- Crankshaft, Pistons and Connecting Rods
- Cylinder Block and End Caps
- Cylinder Head
- Driveshaft Housing
- Electrical Plate Assembly
- Exhaust Plate
- Flywheel/Alternator
- Fuel Hoses
- Fuel Hoses
- Fuel Pump
- Fuel Rails
- Gasket Set Components, Complete Powerhead and Lower Unit
- Gear Housing(Driveshaft)(IV SSM R/L)
- Gear Housing(Prop Shaft)(IV SSM R/L)
- Oil Injection Components
- Oil Lines
- PCM Mounting
- Starter Motor
- Throttle Lever
- Top Cowl
- Transom Bracket Assembly
- Trim Cylinder Assembly
- Vapor Separator Components
- Water Hoses
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 8M8025140 | PCM, Propulsion Control Module | 1 | ||||||
| 2 | 10-82130025 | SCREW, (M6 x 25) | 3 | ||||||
| 3 | 12-65567 | WASHER, (.265 x .750 x .048) Stainless Steel | 3 | ||||||
| 4 | 25-834985 | GROMMET | 3 | ||||||
| 5 | 23-856954 | BUSHING | 3 | ||||||
| 6 | 858953 | BRACKET | 1 | ||||||
| 7 | 10-82129114 | SCREW, (M6 x 14) | 1 | ||||||
| 8 | 10-82130012 | SCREW, (M6 x 12) | 3 | ||||||
| 9 | 830796A04 | CONNECTOR ASSEMBLY, Weather Cap - Male | 1 | ||||||
| 10 | 877613A02 | CONNECTOR ASSEMBLY, Weather Cap 6 Pin | 1 | ||||||
| 11 | 54-65292 | J CLIP | 1 |
