| Ref. |
OEM Part # |
Hardin # |
Mallory # |
GLM # |
Other # |
Description |
Num Req. |
Superceded From |
Special Notes |
| - |

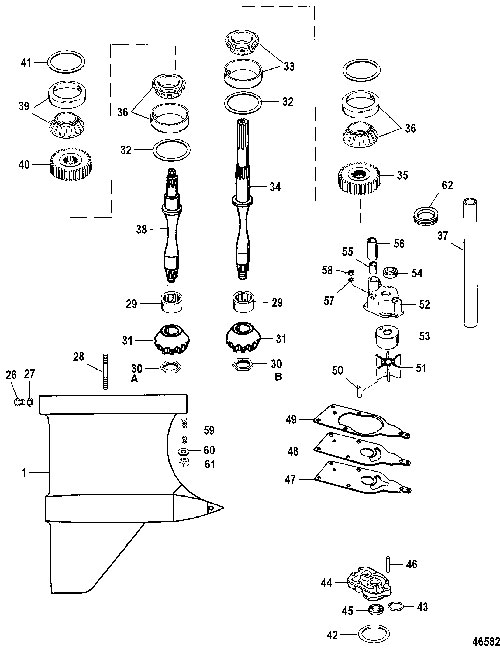

1681-8M0047906 |
|
|
|
|
GEARCASE ASSEMBLY, Complete |
1 |
|
|
| 1 |
1681-818877A20 |
|
|
|
|
GEAR HOUSING ASSEMBLY |
1 |
|
|
| 26 |
10-14834A3 |
|
|
|
|
PLUG ASSEMBLY, Drain - Magnetic |
2 |
|
|
| 27 |
25-805726 |
|
|
|
|
O-RING, Rubber |
2 |
|
|
| 28 |
16-8M0034449 |
|
|
|
|
STUD, (.312 x 1.69) (WATER PUMP) |
2 |
|
|
| 28 |
16-68166 |
|
|
|
|
STUD, (.312 x 2.125) (WATER PUMP) |
5 |
|
|
| 29 |
31-8M0051196 |
|
|
|
|
BEARING, Roller (DRIVESHAFT) |
2 |
|
|
| 30 |
11-35921 |
|
|
|
|
NUT, (.625-18) (REAR) |
1 |
|
|
| 30 |
11-818932 |
|
|
|
|
NUT, Left Hand (FRONT) |
1 |
|
|
| 31 |
43-818929 |
|
|
|
|
GEAR, Pinion |
2 |
|
|
| 32 |
15-8M0063268 |
|
|
|
|
SHIM ASSEMBLY |
3 |
|
No Longer Available |
| 33 |
31-38680T01 |
|
|
|
|
BEARING (LOWER) |
1 |
|
|
| 34 |
45-8M0079371 |
|
|
|
|
DRIVESHAFT (FRONT) |
1 |
813781T |
|
| 35 |
43-8M0050949 |
|
|
|
|
GEAR (DRIVING) |
1 |
|
|
| 36 |
31-38678T01 |
|
|
|
|
BEARING |
2 |
|
|
| 37 |
32-8476504 |
|
|
|
|
TUBE, Water |
1 |
|
|
| 38 |
45-8M0074006 |
|
|
|
|
DRIVESHAFT (REAR) |
1 |
815506 |
|
| 39 |
31-38681A1 |
|
|
|
|
BEARING ASSEMBLY |
1 |
|
|
| 40 |
43-86640 |
|
|
|
|
GEAR (DRIVEN) |
1 |
|
|
| 41 |
15-38668A1 |
|
|
|
|
SHIM SET |
1 |
|
|
| 42 |
25-39695 |
|
|
|
|
O-RING |
1 |
|
|
| 43 |
25-35276 |
|
|
|
|
O-RING, (.734 x .139) |
1 |
|
|
| 44 |
46-821034A1 |
|
|
|
|
BASE ASSEMBLY, Water Pump |
1 |
|
|
| 45 |
26-16977 |
|
|
|
|
SEAL, Oil |
2 |
|
|
| 46 |
17-29596T |
|
|
|
|
PIN, Dowel |
2 |
|
|
| 47 |
27-821305 |
|
|
|
|
GASKET |
1 |
|
|
| 48 |
85352 |
|
|
|
|
FACE PLATE, Right Hand |
1 |
|
|
| 49 |
27-821304 |
|
|
|
|
GASKET |
1 |
|
|
| 50 |
28-8M0032834 |
|
|
|
|
KEY |
1 |
|
|
| 51 |
47-89984T4 |
|
|
|
|
IMPELLER |
1 |
|
|
| 52 |
46-821541A2 |
|
|
|
|
PUMP ASSEMBLY, Water (3/4 IN WATER TUBE) |
1 |
|
|
| 53 |
30915 |
|
|
|
|
INSERT |
1 |
|
|
| 54 |
26-55905 |
|
|
|
|
SEAL, Oil |
1 |
|
|
| 55 |
26-88397 |
|
|
|
|
SEAL |
1 |
|
|
| 56 |
23-847685 |
|
|
|
|
SLEEVE |
1 |
|
|
| 57 |
12-24812 |
|
|
|
|
WASHER |
7 |
|
|
| 58 |
11-54947 |
|
|
|
|
NUT, (.312-24) |
7 |
|
|
| 59 |
16-822118 |
|
|
|
|
STUD, (.437 x 2.500) |
8 |
|
|
| 60 |
12-822836 |
|
|
|
|
WASHER, (.445 x .805 x .108) |
8 |
|
|
| 61 |
11-34933 |
|
|
|
|
NUT, (.437-20) Stainless Steel |
8 |
|
|
| 62 |
25-30271 |
|
|
|
|
RING, Rubber |
1 |
|
|
