| Ref. |
OEM Part # |
Hardin # |
Mallory # |
GLM # |
Other # |
Description |
Num Req. |
Superceded From |
Special Notes |

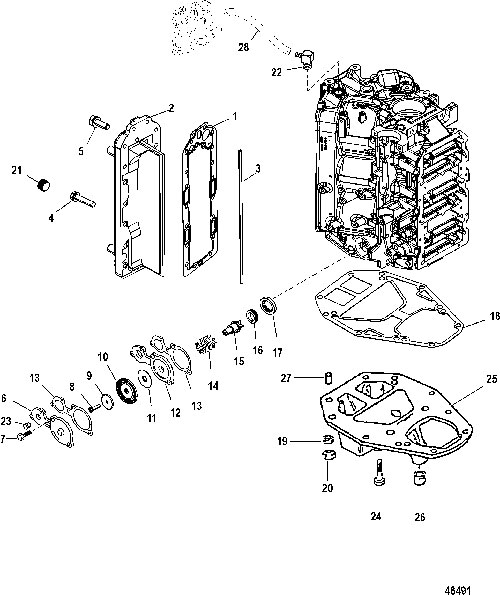

| 1 |
27-190506 |
|
|
|
|
GASKET |
1 |
|
|
| 2 |
828343A05 |
|
|
|
|
PLATE ASSEMBLY, Exhaust Divider |
1 |
|
|
| 3 |
26-814754 |
|
|
|
|
SEAL, (12.50 Inches) |
1 |
|
|
| 4 |
10-8263561 |
|
|
|
|
SCREW AND WASHER, (.312-18 x 1.500) |
16 |
|
|
| 5 |
10-881190 |
|
|
|
|
SCREW, (.312-18 x 1.00) |
2 |
|
|
| 6 |
8M0039767 |
|
|
|
|
COVER, Relief Valve |
1 |
|
|
| 7 |
10-31984 |
|
|
|
|
SCREW, (.312-18 x 1.375) |
4 |
|
|
| 8 |
10-69570 |
|
|
|
|
SCREW, (#10-16 x .750) |
1 |
|
|
| 9 |
12-76451 |
|
|
|
|
WASHER |
1 |
|
|
| 10 |
144791 |
|
|
|
|
DIAPHRAGM |
1 |
|
|
| 11 |
16496 |
|
|
|
|
DEFLECTOR, Water |
1 |
|
|
| 12 |
16497A1 |
|
|
|
|
PLATE |
1 |
|
|
| 13 |
27-78690002 |
|
|
|
|
GASKET |
2 |
|
|
| 14 |
24-42996 |
|
|
|
|
SPRING, (Stainless Steel) |
1 |
|
|
| 15 |
14480 |
|
|
|
|
POPPET |
1 |
|
|
| 16 |
25-64872 |
|
|
|
|
GROMMET |
1 |
|
|
| 17 |
65848 |
|
|
|
|
CARRIER |
1 |
|
|
| 18 |
27-8231422 |
|
|
|
|
GASKET |
1 |
|
|
| 19 |
12-822838 |
|
|
|
|
WASHER, (.401 x .745 x .097) |
8 |
|
|
| 20 |
11-82671013 |
|
|
|
|
NUT, (.375-24) Stainless Steel |
8 |
|
|
| 21 |
22-428611 |
|
|
|
|
FITTING, Pipe - Brass (.750-14) |
1 |
|
|
| 22 |
22-8603001 |
|
|
|
|
FITTING, Top of Block |
1 |
|
|
| 23 |
22-36382 |
|
|
|
|
FITTING, (.250-18 x .62) Brass, Poppet Cover |
1 |
|
|
| 24 |
10-818218 |
|
|
|
|
SCREW, (.375-16 x 2.500) |
2 |
|
|
| 25 |
8M0053611 |
|
|
|
|
PLATE ASSEMBLY, Exhaust Extension |
1 |
|
|
| 26 |
26-88397 |
|
|
|
|
SEAL |
1 |
|
|
| 27 |
17-16527 |
|
|
|
|
PIN, Dowel |
2 |
|
|
| 28 |
32-774572 |
|
|
|
|
HOSE, (48.00 Inches Bulk), Cylinder Block to Compressor Water Inlet |
1 |
|
|
| - |
27-881805A01 |
|
|
|
|
GASKET SET, Engine |
1 |
|
|
| - |
61-848040A51 |
|
|
|
|
POWERHEAD ASSEMBLY, Partial |
1 |
|
|
