200XS SST - Serial 1E050629 and Up - Trim Cylinder Assembly

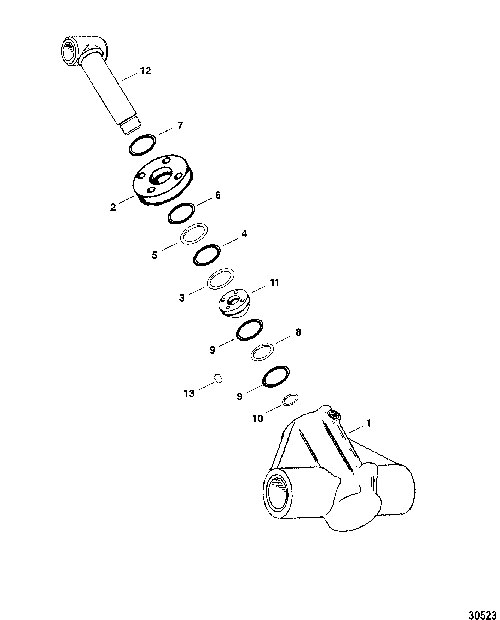

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Air Compressor Components, SN 1B884880 and below
- Air Compressor Components, SN 1B884881 and up
- Air Handler Components
- Air Handler/Flywheel Cover
- Air Hoses
- Bottom Cowl
- Coil Plate Assembly
- Crankshaft, Pistons and Connecting Rods
- Cylinder Block and End Caps
- Cylinder Head
- Driveshaft Housing
- Electrical Plate Assembly
- Exhaust Plate
- Flywheel/Alternator
- Fuel Hoses
- Fuel Hoses
- Fuel Pump
- Fuel Rails
- Gasket Set Components, Complete Powerhead and Lower Unit
- Gear Housing(Driveshaft)(IV SSM R/L)
- Gear Housing(Prop Shaft)(IV SSM R/L)
- Oil Injection Components
- Oil Lines
- PCM Mounting
- Starter Motor
- Throttle Lever
- Top Cowl
- Transom Bracket Assembly
- Trim Cylinder Assembly
- Vapor Separator Components
- Water Hoses
| Note: THESE PARTS ARE SOLD (AS IS) WITH NO WARRANTY | |||||||||
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| - | 8M0050805 | TRIM CYLINDER ASSEMBLY, (Black), COMPLETE | 1 | 44120A5 | |||||
| 1 | NSS | TRIM CYLINDER HOUSING | 1 | Not Sold Separate | |||||
| 2 | 44123 | RETAINER | 1 | ||||||
| - | 25-11163A1 | REPAIR KIT, Trim Cylinder | 1 | ||||||
| 3 | NSS | O-RING | 1 | Not Sold Separate | |||||
| 4 | NSS | BACK-UP RING | 1 | Not Sold Separate | |||||
| 5 | NSS | O-RING | 1 | Not Sold Separate | |||||
| 6 | NSS | BACK-UP RING | 4 | Not Sold Separate | |||||
| 7 | NSS | WIPER | 1 | Not Sold Separate | |||||
| 8 | NSS | O-RING | 1 | Not Sold Separate | |||||
| 9 | NSS | BACK-UP RING | 2 | Not Sold Separate | |||||
| 10 | NSS | O-RING | 1 | Not Sold Separate | |||||
| 11 | 44125 | PISTON, Power Trim | 1 | ||||||
| 12 | 8185162 | TRIM ROD | 1 | ||||||
| 13 | 822103 | GREASE HOLE COVER | 1 | ||||||
