| Ref. |
OEM Part # |
Hardin # |
Mallory # |
GLM # |
Other # |
Description |
Num Req. |
Superceded From |
Special Notes |

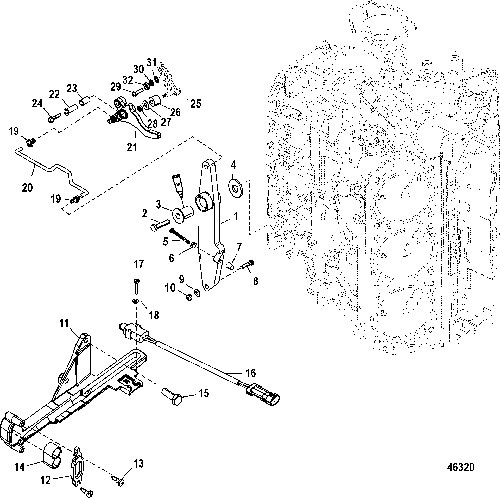

| 1 |
8M0040990 |
|
|
|
|
LEVER, Throttle Control |
1 |
|
|
| 2 |
10-818165 |
|
|
|
|
SCREW, (.375-16 x 1.75) |
1 |
|
|
| 3 |
23-55164 |
|
|
|
|
BUSHING |
1 |
|
|
| 4 |
23-858959 |
|
|
|
|
SPACER |
1 |
|
|
| 5 |
10-64022 |
|
|
|
|
SCREW, (.250-20 x 2.125) |
1 |
|
|
| 6 |
11-64015 |
|
|
|
|
NUT, (.250-20) |
1 |
|
|
| 7 |
26852 |
|
|
|
|
CAP, Nylon |
1 |
|
|
| 8 |
42927 |
|
|
|
|
INSERT |
1 |
|
|
| 9 |
12-35459 |
|
|
|
|
WASHER |
1 |
|
|
| 10 |
11-401386 |
|
|
|
|
NUT, (M6) Stainless Steel |
1 |
|
|
| 11 |
814283T6 |
|
|
|
|
BRACKET ASSEMBLY, Anchor |
1 |
|
|
| 12 |
98889 |
|
|
|
|
LATCH |
1 |
|
|
| 13 |
10-42975 |
|
|
|
|
DRIVE SCREW |
2 |
|
|
| 14 |
39519 |
|
|
|
|
CUP |
1 |
|
|
| 15 |
10-28782 |
|
|
|
|
SCREW, (.312-18 x .880) Stainless Steel |
3 |
|
|
| 16 |
87-8M0052939 |
|
|
|
|
SWITCH |
1 |
|
|
| 17 |
10-77478 |
|
|
|
|
SCREW, (#6-32 x .875) |
2 |
|
|
| 18 |
12-27882 |
|
|
|
|
WASHER |
2 |
|
|
| 19 |
23-932481 |
|
|
|
|
BUSHING, Swivel |
2 |
|
|
| 20 |
8508152 |
|
|
|
|
ROD |
1 |
|
|
| 21 |
8562211 |
|
|
|
|
CAM |
1 |
|
|
| 22 |
23-856895 |
|
|
|
|
BUSHING |
1 |
|
|
| 23 |
30-856896 |
|
|
|
|
BEARING |
1 |
|
No Longer Available |
| 24 |
10-81893440 |
|
|
|
|
SCREW, (M8 x 40) |
1 |
|
|
| 25 |
850286A03 |
|
|
|
|
LEVER/ROLLER KIT, Throttle |
1 |
|
|
| 26 |
8M0072162 |
|
|
|
|
ROLLER |
1 |
889610 |
|
| 27 |
12-56681 |
|
|
|
|
WASHER, (.203 x .500 x .032) |
1 |
|
|
| 28 |
11-826709104 |
|
|
|
|
NUT, (#8-32) Stainless Steel |
1 |
|
|
| 29 |
10-889354 |
|
|
|
|
SCREW, Special |
1 |
|
|
| 30 |
12-8M0095734 |
|
|
|
|
WASHER, Spool |
1 |
|
No Longer Available |
| 31 |
13-69432 |
|
|
|
|
LOCKWASHER, External (#10) |
1 |
|
|
| 32 |
12-881991 |
|
|
|
|
WASHER, Cupped |
1 |
|
|
