200XS SST - Serial 1E050629 and Up - Driveshaft Housing

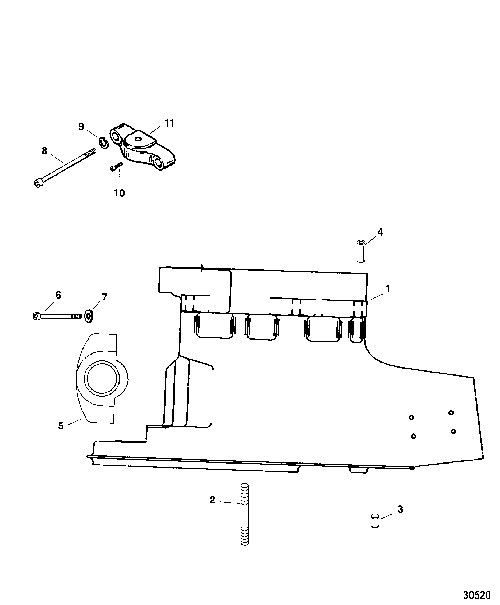

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Air Compressor Components, SN 1B884880 and below
- Air Compressor Components, SN 1B884881 and up
- Air Handler Components
- Air Handler/Flywheel Cover
- Air Hoses
- Bottom Cowl
- Coil Plate Assembly
- Crankshaft, Pistons and Connecting Rods
- Cylinder Block and End Caps
- Cylinder Head
- Driveshaft Housing
- Electrical Plate Assembly
- Exhaust Plate
- Flywheel/Alternator
- Fuel Hoses
- Fuel Hoses
- Fuel Pump
- Fuel Rails
- Gasket Set Components, Complete Powerhead and Lower Unit
- Gear Housing(Driveshaft)(IV SSM R/L)
- Gear Housing(Prop Shaft)(IV SSM R/L)
- Oil Injection Components
- Oil Lines
- PCM Mounting
- Starter Motor
- Throttle Lever
- Top Cowl
- Transom Bracket Assembly
- Trim Cylinder Assembly
- Vapor Separator Components
- Water Hoses
| Note: THESE PARTS ARE SOLD "AS IS" WITH NO WARRANTY | |||||||||
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 3526-8M0050993 | HOUSING ASSEMBLY, Driveshaft | 1 | ||||||
| 2 | 16-822118 | STUD, (.437 x 2.500) | 8 | ||||||
| 3 | 17-822107 | PIN, Dowel | 2 | ||||||
| 4 | 23-165411 | SLEEVE, Dowel | 2 | ||||||
| 5 | 822006T01 | YOKE, Black (Bottom) | 1 | ||||||
| 6 | 10-995241 | SCREW, (.437-14 x 2.00) | 2 | ||||||
| 7 | 12-326481 | WASHER, (.450 x .690 x .090) | 2 | ||||||
| 8 | 10-8221231 | SCREW, (.562 x 2.500) | 2 | ||||||
| 9 | 12-180451 | WASHER | 2 | ||||||
| 10 | 10-8221241 | SCREW, (.375 x 2.00) | 1 | ||||||
| 11 | 8M0051215 | YOKE, Black (Top) | 2 | ||||||
| - | 3526-821986A1 | HOUSING ASSEMBLY, Driveshaft | 1 | ||||||
