225 EFI Pro Max and Super Mag - Serial 0D935638 Thru 0G610103 - Crankshaft, Pistons And Connecting Rods

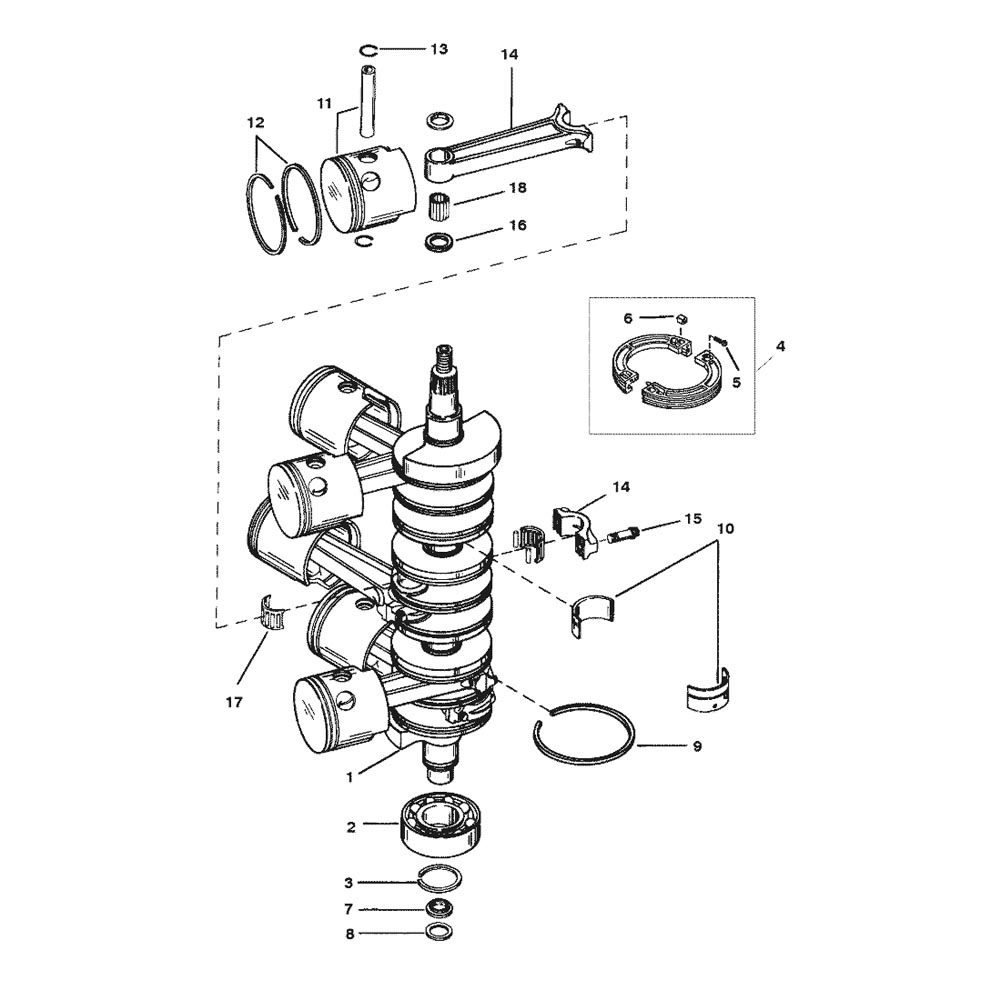

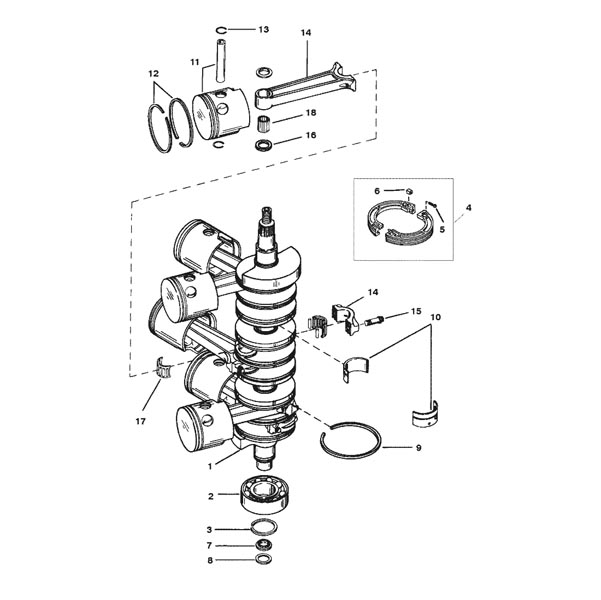

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Bleed System
- Cowling
- Crankshaft, Pistons And Connecting Rods
- Cylinder Block And End Caps
- Drive Shaft Housing And Exhaust Tube
- E.C.U. Assembly
- Exhaust Divider And Exhaust Plate
- Flywheel, Starter Motor And Ignition Coils
- Fuel Management System (S/N-0G366999 & Below)
- Fuel Management System (S/N-0G366999 & Below)
- Fuel Management System (S/N-0G367000 & Up)
- Fuel Management System (S/N-0G367000 & Up)
- Fuel Pump And Fuel Filter
- Gear Housing (DRIVE Shaft)(Cle)
- Gear Housing (DRIVE Shaft)(Torque Master)
- Gear Housing (DRIVESHAFT)(COUNTER Rotation) (SPORTMASTER)
- Gear Housing (DRIVESHAFT)(COUNTER Rotation) (SPORTMASTER)
- Gear Housing (DRIVESHAFT)(STANDARD Rotation) (SPORTMASTER)
- Gear Housing (DRIVESHAFT)(STANDARD Rotation) (SPORTMASTER)
- Gear Housing (PROP Shaft)(Counter Rotation) (SPORTMASTER)
- Gear Housing (PROP Shaft)(Counter Rotation) (SPORTMASTER)
- Gear Housing (PROP Shaft)(Standard Rotation) (SPORTMASTER)
- Gear Housing (PROPELLER Shaft)(Cle)
- Gear Housing (PROPELLER Shaft)(Torque Master)
- Gear Housing Chart (SPORTMASTER)
- Instrumentation
- Key Switch Assembly
- Oil Injection Components
- Power Trim Components
- Power Trim Motor
- Reed Block And Cylinder Head
- Starter Motor
- Steering Attaching Kit
- Swivel Bracket And Steering Arm
- Temperature Sensor
- Throttle Lever And Shift Shaft
- Transom Brackets
- Trim Solenoid Plate (S/N-0G205073 & Below)
- Trim Solenoid Plate (S/N-0G205074 & Up)
- Wiring Harness/Starter Solenoid
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 455-9536T4 | CRANKSHAFT ASSEMBLY | 1 | ||||||
| 1 | 455-850690T1 | CRANKSHAFT ASSEMBLY | 1 | No Longer Available | |||||
| 2 | 30-67923T | BALL BEARING (LOWER) | 1 | ||||||
| 3 | 53-67446 | RETAINING RING | 1 | ||||||
| 4 | 43-14513A09 | DRIVE GEAR | 1 | 14513A2 | |||||
| 5 | 10-813073 | SCREW | 2 | ||||||
| 6 | 11-813134 | NUT | 2 | ||||||
| 7 | 54196A6 | CARRIER ASSEMBLY | 1 | ||||||
| 8 | 65800 | SEAL | 1 | ||||||
| 9 | 39-67377T | RING-SEALING | 7 | 67377 | |||||
| 10 | 31-16756A6 | ROLLER BEARING | 2 | ||||||
| 11 | 785-841089T1 | PISTON | 3 | ||||||
| 11 | 785-841088T1 | PISTON | 3 | ||||||
| 12 | 39-840684A12 | PISTON RING | 1 | ||||||
| 13 | 53-857196 | LOCK RING | 12 | ||||||
| 14 | 644-818141A13 | CONNECTING ROD ASSEMBLY | 6 | 818141A2 | |||||
| 15 | 10-763491 | SCREW | 12 | ||||||
| 16 | 12-8M0012298 | WASHER | 12 | 812876 | |||||
| 17 | 31-8M0045428 | ROLLER BEARING ASSEMBLY | 6 | 17514A2 | |||||
| 18 | 29-822553 | NEEDLE BEARING-PISTON END | 174 | ||||||
| - | 27-813859A95 | GASKET SET | 1 | ||||||
| - | 809430T01 | POWERHEAD | 1 | 809430T95 |
