225 EFI Pro Max and Super Mag - Serial 0D935638 Thru 0G610103 - Flywheel, Starter Motor And Ignition Coils

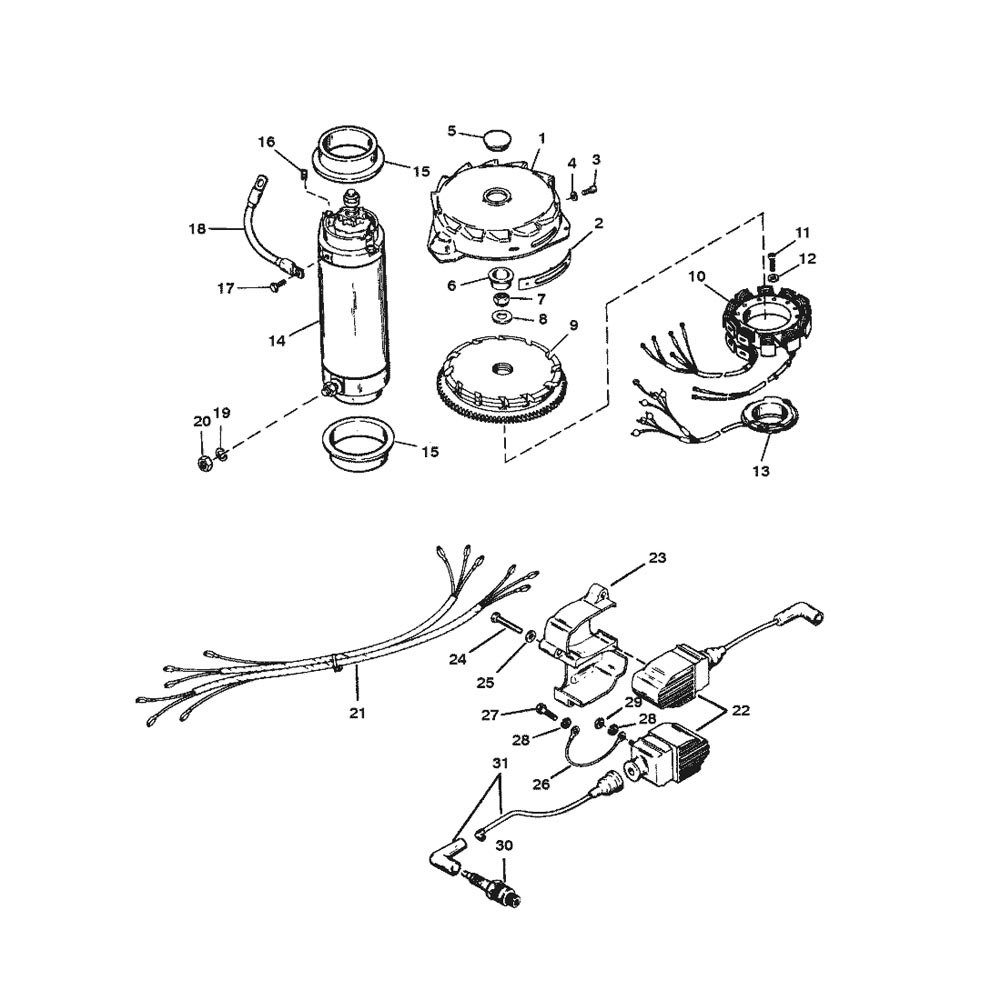

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Bleed System
- Cowling
- Crankshaft, Pistons And Connecting Rods
- Cylinder Block And End Caps
- Drive Shaft Housing And Exhaust Tube
- E.C.U. Assembly
- Exhaust Divider And Exhaust Plate
- Flywheel, Starter Motor And Ignition Coils
- Fuel Management System (S/N-0G366999 & Below)
- Fuel Management System (S/N-0G366999 & Below)
- Fuel Management System (S/N-0G367000 & Up)
- Fuel Management System (S/N-0G367000 & Up)
- Fuel Pump And Fuel Filter
- Gear Housing (DRIVE Shaft)(Cle)
- Gear Housing (DRIVE Shaft)(Torque Master)
- Gear Housing (DRIVESHAFT)(COUNTER Rotation) (SPORTMASTER)
- Gear Housing (DRIVESHAFT)(COUNTER Rotation) (SPORTMASTER)
- Gear Housing (DRIVESHAFT)(STANDARD Rotation) (SPORTMASTER)
- Gear Housing (DRIVESHAFT)(STANDARD Rotation) (SPORTMASTER)
- Gear Housing (PROP Shaft)(Counter Rotation) (SPORTMASTER)
- Gear Housing (PROP Shaft)(Counter Rotation) (SPORTMASTER)
- Gear Housing (PROP Shaft)(Standard Rotation) (SPORTMASTER)
- Gear Housing (PROPELLER Shaft)(Cle)
- Gear Housing (PROPELLER Shaft)(Torque Master)
- Gear Housing Chart (SPORTMASTER)
- Instrumentation
- Key Switch Assembly
- Oil Injection Components
- Power Trim Components
- Power Trim Motor
- Reed Block And Cylinder Head
- Starter Motor
- Steering Attaching Kit
- Swivel Bracket And Steering Arm
- Temperature Sensor
- Throttle Lever And Shift Shaft
- Transom Brackets
- Trim Solenoid Plate (S/N-0G205073 & Below)
- Trim Solenoid Plate (S/N-0G205074 & Up)
- Wiring Harness/Starter Solenoid
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 18896A1 | FLYWHEEL COVER ASSEMBLY | 1 | ||||||
| 2 | 79022 | MARKER | 1 | ||||||
| 3 | 10-37572 | SCREW | 2 | ||||||
| 4 | 12-72761 | WASHER | 2 | ||||||
| 5 | 19-89219001 | PLUG (USE WHERE APPLICABLE) | 1 | 89219 | No Longer Available | ||||
| 6 | 19-45907 | PLUG | 1 | ||||||
| 7 | 11-52901 | NUT | 1 | ||||||
| 8 | 12-33001 | WASHER | 1 | 68229 | |||||
| 9 | 271-859238T16 | FLYWHEEL | 1 | 817632A12 | |||||
| 10 | 398-9610A27 | STATOR | 1 | ||||||
| 11 | 10-90045 | SCREW | 4 | ||||||
| 12 | 13-26996 | WASHER | 4 | ||||||
| 13 | 96455A9 | TRIGGER PLATE ASSEMBLY | 1 | ||||||
| 14 | 50-893893 | STARTER MOTOR | 1 | 79472 | |||||
| 15 | 8M0034918 | COLLAR | 2 | 56703 | |||||
| 16 | 8M0043376 | RUBBER STOP | 2 | 68042 | |||||
| 17 | 10-69035 | SCREW | 1 | ||||||
| 18 | 84-93388A1 | WIRE ASSEMBLY (BLACK) | 1 | ||||||
| 19 | 13-26992 | LOCKWASHER | 1 | ||||||
| 20 | 11-20890 | NUT | 1 | ||||||
| 21 | 84-69739A7 | HARNESS ASSEMBLY | 1 | ||||||
| 22 | 339-832757A4 | IGNITION COIL | 6 | 7370A19 | |||||
| 23 | 79743 | COVER | 3 | ||||||
| 24 | 10-88447 | SCREW (1-5/8 IN.) | 12 | ||||||
| 25 | 12-30164 | WASHER | 12 | ||||||
| 26 | 84-88807A6 | GROUND STRAP (BLACK) | 6 | ||||||
| 27 | 10-68513 | SCREW | 6 | ||||||
| 28 | 13-26996 | LOCKWASHER | 18 | ||||||
| 29 | 11-45076 | NUT | 12 | ||||||
| 30 | 33-14103550 | SPARK PLUG | 6 | ||||||
| 31 | 84-815358A1 | HIGH TENSION CABLE | 1 |
