225 EFI Pro Max and Super Mag - Serial 0D935638 Thru 0G610103 - Gear Housing (DRIVESHAFT)(STANDARD Rotation) (SPORTMASTER)

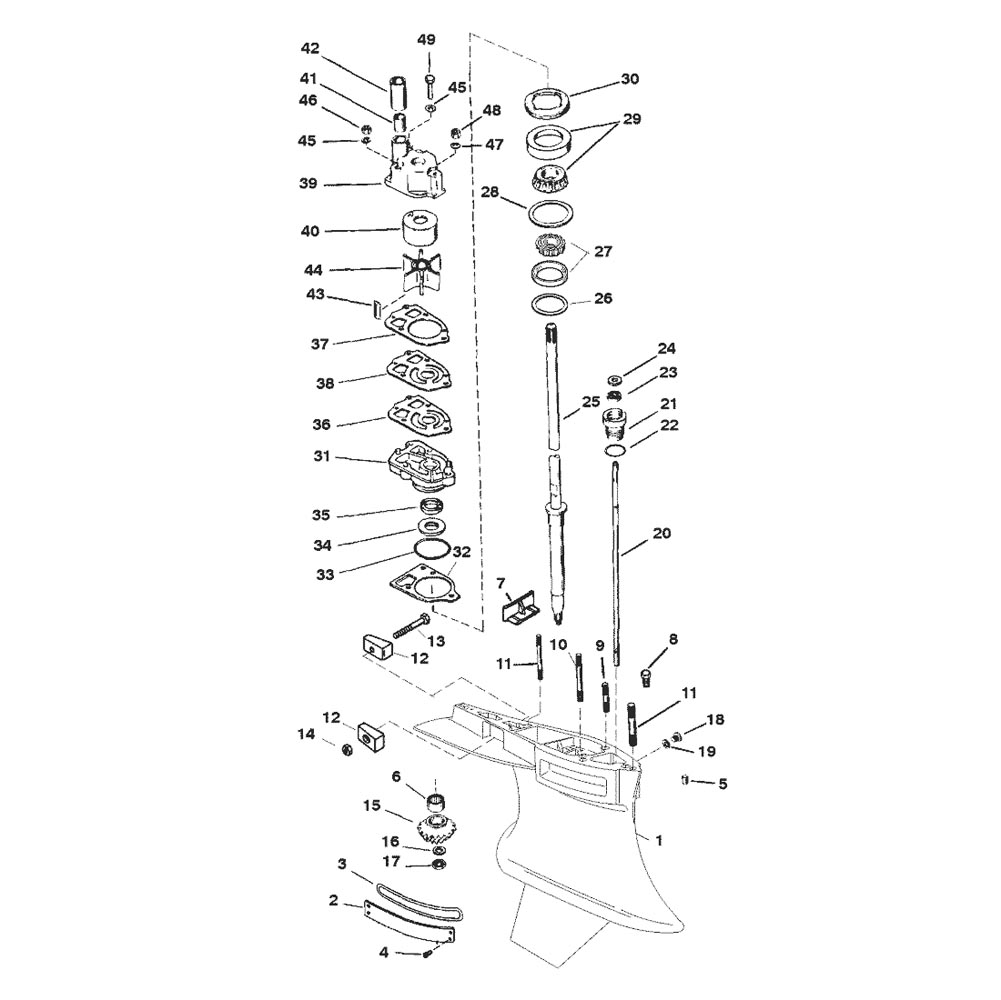

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Bleed System
- Cowling
- Crankshaft, Pistons And Connecting Rods
- Cylinder Block And End Caps
- Drive Shaft Housing And Exhaust Tube
- E.C.U. Assembly
- Exhaust Divider And Exhaust Plate
- Flywheel, Starter Motor And Ignition Coils
- Fuel Management System (S/N-0G366999 & Below)
- Fuel Management System (S/N-0G366999 & Below)
- Fuel Management System (S/N-0G367000 & Up)
- Fuel Management System (S/N-0G367000 & Up)
- Fuel Pump And Fuel Filter
- Gear Housing (DRIVE Shaft)(Cle)
- Gear Housing (DRIVE Shaft)(Torque Master)
- Gear Housing (DRIVESHAFT)(COUNTER Rotation) (SPORTMASTER)
- Gear Housing (DRIVESHAFT)(COUNTER Rotation) (SPORTMASTER)
- Gear Housing (DRIVESHAFT)(STANDARD Rotation) (SPORTMASTER)
- Gear Housing (DRIVESHAFT)(STANDARD Rotation) (SPORTMASTER)
- Gear Housing (PROP Shaft)(Counter Rotation) (SPORTMASTER)
- Gear Housing (PROP Shaft)(Counter Rotation) (SPORTMASTER)
- Gear Housing (PROP Shaft)(Standard Rotation) (SPORTMASTER)
- Gear Housing (PROPELLER Shaft)(Cle)
- Gear Housing (PROPELLER Shaft)(Torque Master)
- Gear Housing Chart (SPORTMASTER)
- Instrumentation
- Key Switch Assembly
- Oil Injection Components
- Power Trim Components
- Power Trim Motor
- Reed Block And Cylinder Head
- Starter Motor
- Steering Attaching Kit
- Swivel Bracket And Steering Arm
- Temperature Sensor
- Throttle Lever And Shift Shaft
- Transom Brackets
- Trim Solenoid Plate (S/N-0G205073 & Below)
- Trim Solenoid Plate (S/N-0G205074 & Up)
- Wiring Harness/Starter Solenoid
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 1687-8M0083306 | GEAR HOUSING | 1 | 848450A25 | |||||
| 1 | 1687-8M0084203 | GEAR HOUSING | 1 | 848474A39 | |||||
| 2 | 847950T3 | COVER | 2 | 8479503 | No Longer Available | ||||
| 3 | 25-34776 | O RING | 2 | ||||||
| 4 | 10-815904 | SCREW | 12 | ||||||
| 5 | 17-43044 | DOWEL PIN | 2 | ||||||
| 6 | 31-42647A1 | ROLLER BEARING | 1 | ||||||
| 7 | 8M0039169 | FILLER BLOCK | 1 | 67891 | |||||
| 8 | 22-847949 | PIPE PLUG | 1 | ||||||
| 9 | 16-8M0034463 | STUD (5/16 X 3-3/8 IN.) | 1 | 56297 | |||||
| 10 | 16-69501 | STUD (5/16 X 3-1/4 IN.) | 1 | ||||||
| 11 | 16-59579 | STUD (7/16 X 2-11/16 IN.)(SHORT/LONG) | 3 | ||||||
| 11 | 16-786382 | STUD (7/16 X 3-1/8 IN.) | 1 | 78638 | |||||
| 11 | 16-579203 | STUD (7/16 X 2-1/16 IN.) | 2 | 579201 | |||||
| 11 | 16-74730 | STUD (7/16 X 7.06 IN.) | 2 | No Longer Available | |||||
| 11 | 16-74732 | STUD (7/16 X 7.69 IN.) | 3 | No Longer Available | |||||
| 11 | 16-78639 | STUD (7/16 X 8-1/8 IN.) | 1 | No Longer Available | |||||
| 12 | 826134Q | ANODE | 2 | 826134 | |||||
| 13 | 10-4000333 | SCREW | 1 | ||||||
| 14 | 11-401386 | NUT | 1 | 8268336 | |||||
| 16 | 12-92721 | WASHER | 1 | ||||||
| 17 | 11-35921 | NUT | 1 | ||||||
| 18 | 10-79953Q04 | SCREW PLUG | 1 | 79953A2 | |||||
| 19 | 12-191833 | SEALING WASHER | 1 | 19183 | |||||
| 20 | 789022 | SHIFT SHAFT (LOWER) | 1 | ||||||
| 21 | 23-77631A2 | BUSHING ASSEMBLY | 1 | ||||||
| 22 | 25-25439 | O RING | 1 | ||||||
| 23 | 26-8164641 | OIL SEAL | 1 | ||||||
| 24 | 12-77674 | RUBBER WASHER | 1 | ||||||
| 25 | 45-848449A4 | DRIVE SHAFT (SHORT) | 1 | ||||||
| 25 | 45-848449A5 | DRIVE SHAFT (LONG) | 1 | ||||||
| 25 | 45-848449A6 | DRIVE SHAFT (X-LONG) | 1 | ||||||
| 26 | 15-38657A1 | SHIM SET | 1 | No Longer Available | |||||
| 27 | 31-48939A2 | ROLLER BEARING | 1 | ||||||
| 28 | 15-42637A1 | SHIM SET | AR | No Longer Available | |||||
| 29 | 31-36387A1 | ROLLER BEARING | 1 | ||||||
| 30 | 8245191 | RETAINER | 1 | 824519 | |||||
| - | 26-89238A3 | SEAL KIT | 1 | ||||||
| - | 27-813859A95 | GASKET SET | 1 | ||||||
| - | 56-90415A24 | STUD KIT (LONG) | 1 | No Longer Available | |||||
| - | 56-90415A25 | STUD KIT (X-LONG) | 1 | No Longer Available |
