225 EFI Pro Max and Super Mag - Serial 0D935638 Thru 0G610103 - Gear Housing (PROP Shaft)(Counter Rotation) (SPORTMASTER)

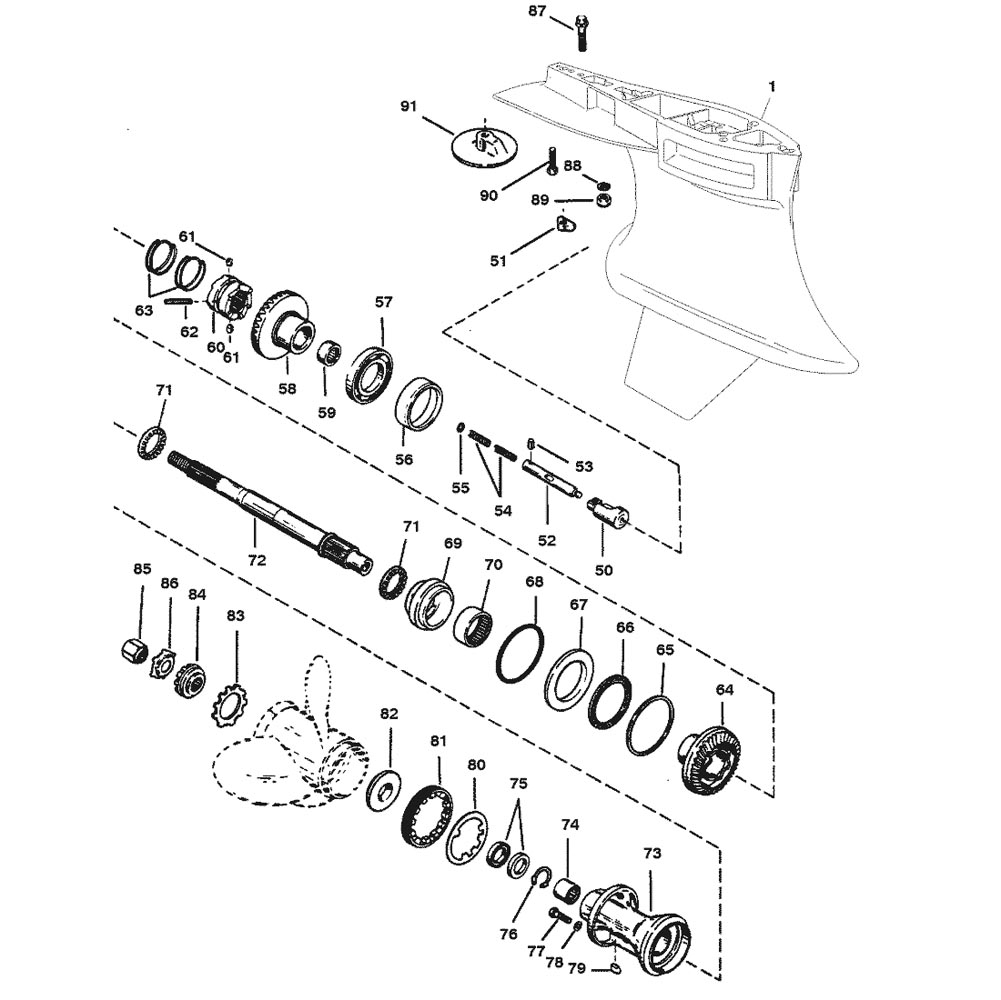

Section Drawing: (Hover or click to view larger)

Other Sub-Sections:

Untitled Document
Note: The Basic Gear Housing Listed is Generic. It Does Not Include Studs.
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 1687-8M0084203         GEAR HOUSING (BASIC) 1 848474A39
50 89594A1         CAM FOLLOWER 1
51 789562         SHIFT CAM 1
52 79911A1         ROD 1
53 17-8M0084245         PIN 1 78906
54 24-79910         SPRING 2
55 12-78910         WASHER AR
56 14469T         BEARING CUP 1 14469
57 30-88957T         BALL BEARING 1 88957
58 NSS         REVERSE GEAR (PART OF 43-15845A2) 1 Not Sold Separate
58 43-817516T1         REVERSE GEAR 1 817516A1 No Longer Available
59 31-15844         ROLLER BEARING 1
60 52-42672T         RATCHET 1 42672
61 17-78909         DETENT PIN 2
62 17-42671         CROSS PIN 1
63 24-78962         SPRING 2
64 43-15845A2         FORWARD GEAR SET 1
64 43-817515T2         FORWARD GEAR SET 1 817515A2
65 23-176151         SPACER SHIM (.125 IN.) AR
65 23-176152         SPACER SHIM (.127 IN.) AR
65 23-176153         SPACER SHIM (.129 IN.) AR
65 23-176154         SPACER SHIM (.131 IN.) AR
65 23-176155         SPACER SHIM (.133 IN.) AR
65 23-176156         SPACER SHIM (.135 IN.) AR
65 23-176157         SPACER SHIM (.137 IN.) AR
65 23-176158         SPACER SHIM (.139 IN.) AR
65 23-176159         SPACER SHIM (.141 IN.) AR
65 23-1761510         SPACER SHIM (.143 IN.) AR
65 23-1761511         SPACER SHIM (.145 IN.) AR
65 23-1761512         SPACER SHIM (.147 IN.) AR
65 23-1761513         SPACER SHIM (.149 IN.) AR
- 56-90415A24         STUD KIT (LONG) 1 No Longer Available
- 56-90415A25         STUD KIT (X-LONG) 1 No Longer Available
