225 EFI Pro Max and Super Mag - Serial 0D935638 Thru 0G610103 - Transom Brackets

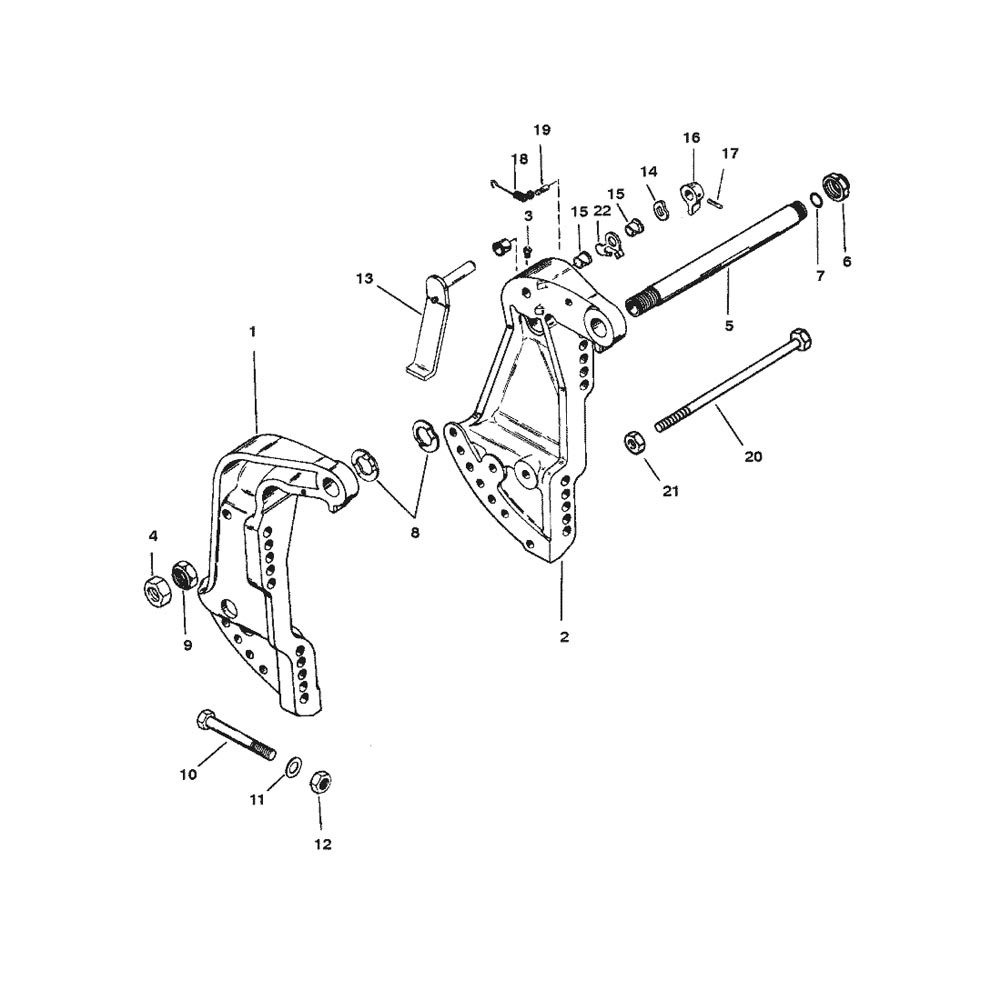

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Bleed System
- Cowling
- Crankshaft, Pistons And Connecting Rods
- Cylinder Block And End Caps
- Drive Shaft Housing And Exhaust Tube
- E.C.U. Assembly
- Exhaust Divider And Exhaust Plate
- Flywheel, Starter Motor And Ignition Coils
- Fuel Management System (S/N-0G366999 & Below)
- Fuel Management System (S/N-0G366999 & Below)
- Fuel Management System (S/N-0G367000 & Up)
- Fuel Management System (S/N-0G367000 & Up)
- Fuel Pump And Fuel Filter
- Gear Housing (DRIVE Shaft)(Cle)
- Gear Housing (DRIVE Shaft)(Torque Master)
- Gear Housing (DRIVESHAFT)(COUNTER Rotation) (SPORTMASTER)
- Gear Housing (DRIVESHAFT)(COUNTER Rotation) (SPORTMASTER)
- Gear Housing (DRIVESHAFT)(STANDARD Rotation) (SPORTMASTER)
- Gear Housing (DRIVESHAFT)(STANDARD Rotation) (SPORTMASTER)
- Gear Housing (PROP Shaft)(Counter Rotation) (SPORTMASTER)
- Gear Housing (PROP Shaft)(Counter Rotation) (SPORTMASTER)
- Gear Housing (PROP Shaft)(Standard Rotation) (SPORTMASTER)
- Gear Housing (PROPELLER Shaft)(Cle)
- Gear Housing (PROPELLER Shaft)(Torque Master)
- Gear Housing Chart (SPORTMASTER)
- Instrumentation
- Key Switch Assembly
- Oil Injection Components
- Power Trim Components
- Power Trim Motor
- Reed Block And Cylinder Head
- Starter Motor
- Steering Attaching Kit
- Swivel Bracket And Steering Arm
- Temperature Sensor
- Throttle Lever And Shift Shaft
- Transom Brackets
- Trim Solenoid Plate (S/N-0G205073 & Below)
- Trim Solenoid Plate (S/N-0G205074 & Up)
- Wiring Harness/Starter Solenoid
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 3401-8718F7 | TRANSOM BRACKET (STARBOARD) | 1 | No Longer Available | |||||
| 2 | 3400-8716A8 | TRANSOM BRACKET (PORT) | 1 | No Longer Available | |||||
| 1 | 3401-8718F8 | TRANSOM BRACKET (STARBOARD) | 1 | No Longer Available | |||||
| 2 | 3400-8716A9 | TRANSOM BRACKET (PORT) | 1 | No Longer Available | |||||
| 3 | 22-98727 | GREASE FITTING (PORT) | 1 | ||||||
| 4 | 11-8M0041651 | JAM NUT | 1 | 37984 | |||||
| 5 | 99170A2 | TILT TUBE | 1 | No Longer Available | |||||
| 6 | 11-826135 | NUT (1 IN.-14) | 1 | ||||||
| 7 | 25-45711 | O-RING | 1 | ||||||
| 8 | 13-88750 | WAVE WASHER | 2 | ||||||
| 9 | 11-826164 | NUT (7/8-14) | 1 | ||||||
| 10 | 10-677551 | BOLT (4-1/2 IN.) | 4 | ||||||
| 10 | 10-677552 | BOLT (6-1/2 IN.) | 4 | ||||||
| 11 | 12-28421 | WASHER | 4 | ||||||
| 12 | 11-82671117 | NUT | 4 | No Longer Available | |||||
| 13 | 8M0115104 | TILT LOCK LEVER ASSEMBLY | 1 | 99629A2 | |||||
| 14 | 13-99611 | WAVE WASHER | 1 | ||||||
| 15 | 23-65830 | BUSHING | 2 | ||||||
| 16 | 99633 | KNOB | 1 | ||||||
| 17 | 17-99615 | GROOVE PIN | 1 | ||||||
| 18 | 24-99622 | SPRING | 1 | ||||||
| 19 | 17-99604 | GROOVE PIN | 1 | ||||||
| 20 | 10-96930A1 | BOLT ASSEMBLY | 1 | ||||||
| 21 | 11-23161 | NUT | 1 | ||||||
| 22 | 814207 | STOP | 1 | No Longer Available |
