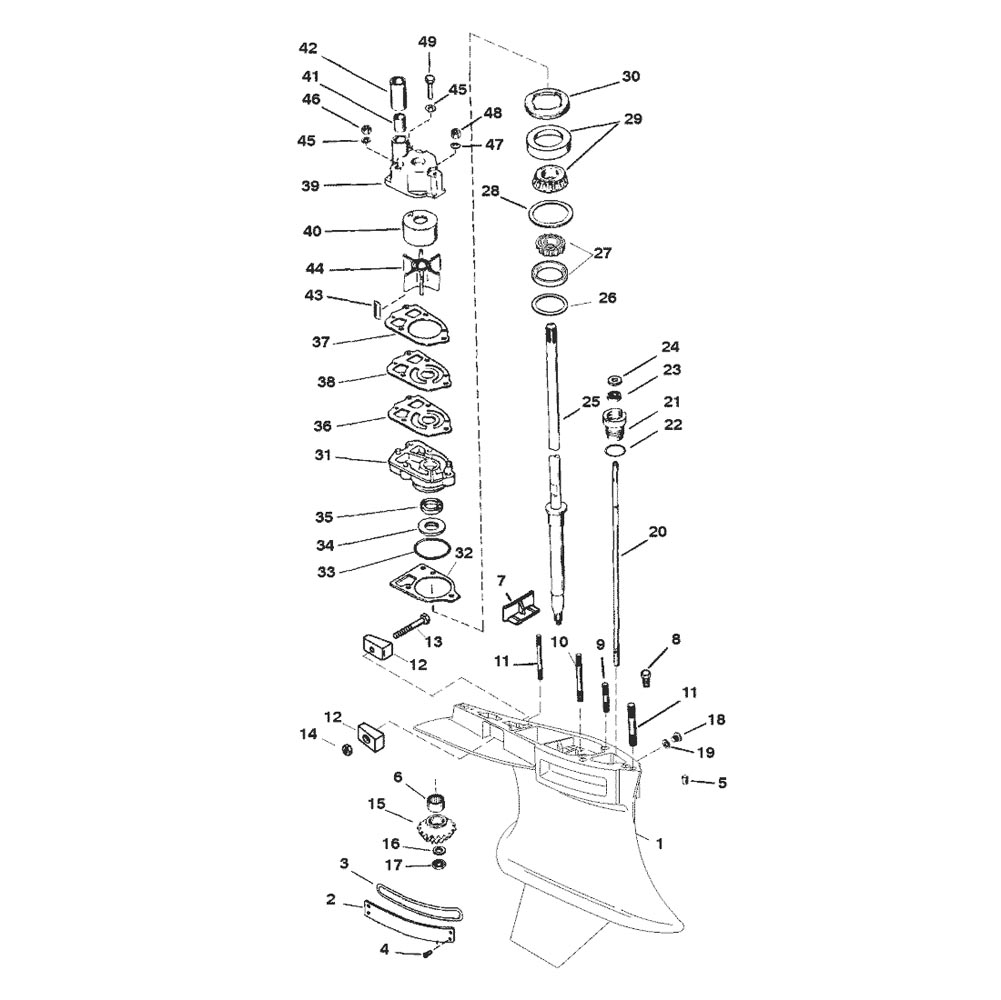

| Note: The Basic Gear Housing Listed is Generic. It Does Not Include Studs. |
| Ref. |
OEM Part # |
Hardin # |
Mallory # |
GLM # |
Other # |
Description |
Num Req. |
Superceded From |
Special Notes |
| 1 |
1687-8M0084203 |
|
|
|
|
GEAR HOUSING (BASIC) |
1 |
848474A39 |
|
| 2 |
847950T3 |
|
|
|
|
COVER |
2 |
8479503 |
No Longer Available |
| 3 |
25-34776 |
|
|
|
|
O RING |
2 |
|
|
| 4 |
10-815904 |
|
|
|
|
SCREW |
12 |
|
|
| 5 |
17-43044 |
|
|
|
|
DOWEL PIN |
2 |
|
|
| 6 |
31-42647A1 |
|
|
|
|
ROLLER BEARING |
1 |
|
|
| 7 |
8M0039169 |
|
|
|
|
FILLER BLOCK |
1 |
67891 |
|
| 8 |
22-847949 |
|
|
|
|
PIPE PLUG |
1 |
|
|
| 9 |
16-8M0034463 |
|
|
|
|
STUD (5/16 X 3-3/8 IN.) |
1 |
56297 |
|
| 10 |
16-69501 |
|
|
|
|
STUD (5/16 X 3-1/4 IN.) |
1 |
|
|
| 11 |
16-59579 |
|
|
|
|
STUD (7/16 X 2-11/16 IN.)(SHORT/LONG) |
3 |
|
|
| 11 |
16-786382 |
|
|
|
|
STUD (7/16 X 3-1/8 IN.) |
1 |
78638 |
|
| 11 |
16-579203 |
|
|
|
|
STUD (7/16 X 2-1/16 IN.) |
2 |
579201 |
|
| 11 |
16-74730 |
|
|
|
|
STUD (7/16 X 7.06 IN.) |
2 |
|
No Longer Available |
| 11 |
16-74732 |
|
|
|
|
STUD (7/16 X 7.69 IN.) |
3 |
|
No Longer Available |
| 11 |
16-78639 |
|
|
|
|
STUD (7/16 X 8-1/8 IN.) |
1 |
|
No Longer Available |
| 12 |
826134Q |
|
|
|
|
ANODE |
2 |
826134 |
|
| 13 |
10-4000333 |
|
|
|
|
SCREW |
1 |
|
|
| 14 |
11-401386 |
|
|
|
|
NUT |
1 |
8268336 |
|
| 15 |
NSS |
|
|
|
|
PINION GEAR (PART OF 43-15845A2 OR 43-817515A2) |
1 |
|
Not Sold Separate |
| 16 |
12-92721 |
|
|
|
|
WASHER |
1 |
|
|
| 17 |
11-35921 |
|
|
|
|
NUT |
1 |
|
|
| 18 |
10-79953Q04 |
|
|
|
|
SCREW PLUG |
1 |
79953A2 |
|
| 19 |
12-191833 |
|
|
|
|
SEALING WASHER |
1 |
19183 |
|
| 20 |
789022 |
|
|
|
|
SHIFT SHAFT (LOWER) |
1 |
|
|
| 21 |
23-77631A2 |
|
|
|
|
BUSHING ASSEMBLY |
1 |
|
|
| 22 |
25-25439 |
|
|
|
|
O RING |
1 |
|
|
| 23 |
26-8164641 |
|
|
|
|
OIL SEAL |
1 |
|
|
| 24 |
12-77674 |
|
|
|
|
RUBBER WASHER |
1 |
|
|
| 25 |
45-848449A4 |
|
|
|
|
DRIVE SHAFT (SHORT) |
1 |
|
|
| 25 |
45-848449A5 |
|
|
|
|
DRIVE SHAFT (LONG) |
1 |
|
|
| 25 |
45-848449A6 |
|
|
|
|
DRIVE SHAFT (X-LONG) |
1 |
|
|
| 26 |
15-38657A1 |
|
|
|
|
SHIM SET |
1 |
|
No Longer Available |
| 27 |
31-48939A2 |
|
|
|
|
ROLLER BEARING |
1 |
|
|
| 28 |
15-42637A1 |
|
|
|
|
SHIM SET |
AR |
|
No Longer Available |
| 29 |
31-36387A1 |
|
|
|
|
ROLLER BEARING |
1 |
|
|
| 30 |
8245191 |
|
|
|
|
RETAINER |
1 |
824519 |
|
| - |
26-89238A3 |
|
|
|
|
SEAL KIT |
1 |
|
|
| - |
56-90415A24 |
|
|
|
|
STUD KIT (LONG) |
1 |
|
No Longer Available |
| - |
56-90415A25 |
|
|
|
|
STUD KIT (X-LONG) |
1 |
|
No Longer Available |
