225 EFI Pro Max and Super Mag - Serial 0D935638 Thru 0G610103 - Instrumentation

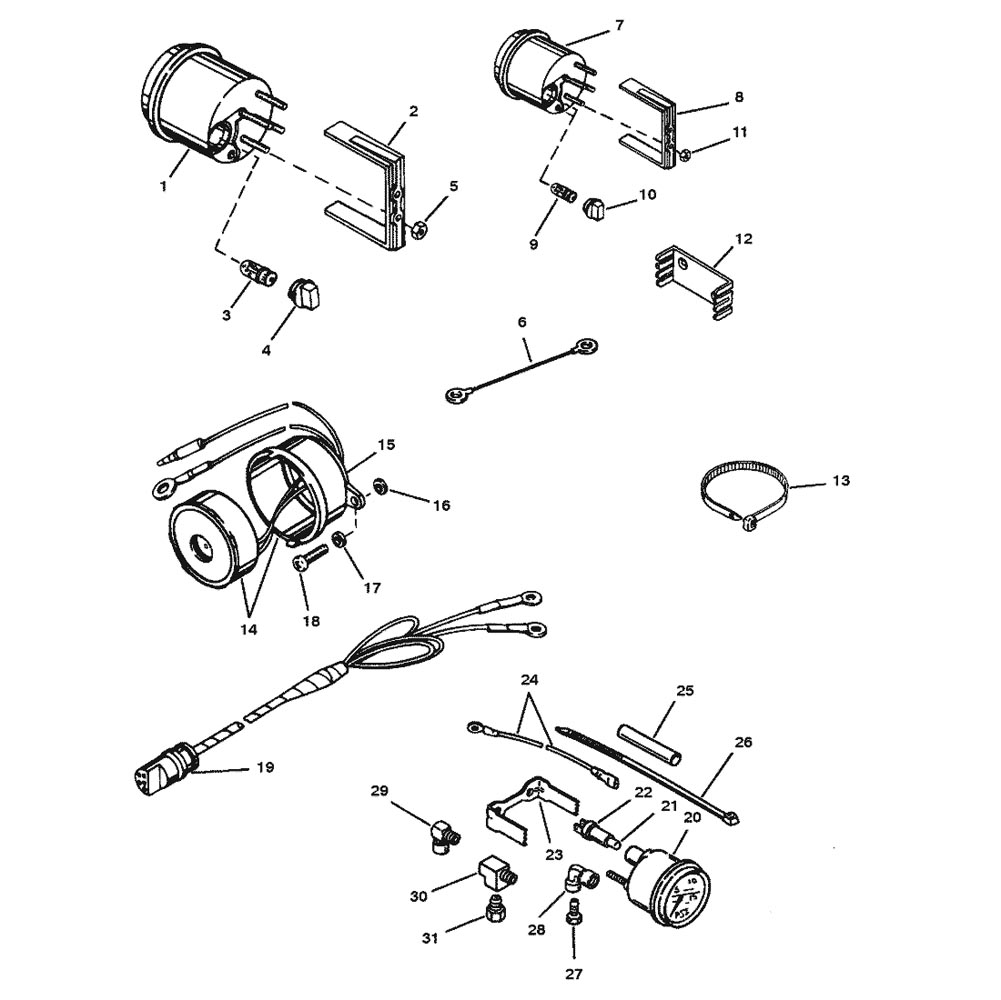

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Bleed System
- Cowling
- Crankshaft, Pistons And Connecting Rods
- Cylinder Block And End Caps
- Drive Shaft Housing And Exhaust Tube
- E.C.U. Assembly
- Exhaust Divider And Exhaust Plate
- Flywheel, Starter Motor And Ignition Coils
- Fuel Management System (S/N-0G366999 & Below)
- Fuel Management System (S/N-0G366999 & Below)
- Fuel Management System (S/N-0G367000 & Up)
- Fuel Management System (S/N-0G367000 & Up)
- Fuel Pump And Fuel Filter
- Gear Housing (DRIVE Shaft)(Cle)
- Gear Housing (DRIVE Shaft)(Torque Master)
- Gear Housing (DRIVESHAFT)(COUNTER Rotation) (SPORTMASTER)
- Gear Housing (DRIVESHAFT)(COUNTER Rotation) (SPORTMASTER)
- Gear Housing (DRIVESHAFT)(STANDARD Rotation) (SPORTMASTER)
- Gear Housing (DRIVESHAFT)(STANDARD Rotation) (SPORTMASTER)
- Gear Housing (PROP Shaft)(Counter Rotation) (SPORTMASTER)
- Gear Housing (PROP Shaft)(Counter Rotation) (SPORTMASTER)
- Gear Housing (PROP Shaft)(Standard Rotation) (SPORTMASTER)
- Gear Housing (PROPELLER Shaft)(Cle)
- Gear Housing (PROPELLER Shaft)(Torque Master)
- Gear Housing Chart (SPORTMASTER)
- Instrumentation
- Key Switch Assembly
- Oil Injection Components
- Power Trim Components
- Power Trim Motor
- Reed Block And Cylinder Head
- Starter Motor
- Steering Attaching Kit
- Swivel Bracket And Steering Arm
- Temperature Sensor
- Throttle Lever And Shift Shaft
- Transom Brackets
- Trim Solenoid Plate (S/N-0G205073 & Below)
- Trim Solenoid Plate (S/N-0G205074 & Up)
- Wiring Harness/Starter Solenoid
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 79-93953A1 | TACHOMETER | 1 | No Longer Available | |||||
| 2 | 79101T | BRACKET | 1 | No Longer Available | |||||
| 3 | 88-72729 | LIGHT BULB | 1 | ||||||
| 4 | 88-79888 | SOCKET | 1 | ||||||
| 5 | 11-26419 | NUT | 5 | ||||||
| 6 | 84-86322A7 | WIRE (BLACK - 1-1/2 IN.) | 1 | ||||||
| 6 | 84-86323A5 | WIRE (PURPLE - 1-1/2 IN.) | 1 | ||||||
| 7 | 79-895292Q41 | TRIM GAUGE | 1 | 825338A3 | |||||
| 8 | 79480 | BRACKET | 1 | No Longer Available | |||||
| 9 | 88-72729 | LIGHT BULB | 1 | ||||||
| 10 | 88-79888 | SOCKET | 1 | ||||||
| 11 | 11-26419 | NUT | 5 | ||||||
| 12 | 79146 | RETAINER | AR | ||||||
| 13 | 54-816311T | STA-STRAP | AR | 816311 | |||||
| 14 | 68878A6 | ALARM HORN AND WIRE ASSEMBLY | 1 | No Longer Available | |||||
| 15 | 848043T01 | COVER | 1 | ||||||
| 16 | 23-79697 | SPACER | 2 | ||||||
| 17 | 12-26427 | WASHER | 2 | No Longer Available | |||||
| 18 | 10-35401 | SCREW | 2 | ||||||
| 19 | 84-86396A8 | HARNESS | 1 | ||||||
| 20 | 79-895288Q43 | 30 PSI GAUGE KIT | 1 | 825331A1 | |||||
| 21 | 88-95691 | BULB | 1 | No Longer Available | |||||
| 22 | 13631 | SOCKET | 1 | No Longer Available | |||||
| 23 | 17654 | BRACKET | 1 | ||||||
| 21 | 88-72729 | BULB | 1 | ||||||
| 22 | 88-825362 | SOCKET | 1 | No Longer Available | |||||
| 23 | 825363 | BRACKET | 1 | No Longer Available | |||||
| 24 | 84-88532A1 | CABLE ASSEMBLY | 1 | No Longer Available | |||||
| 24 | 84-86322A16 | CABLE ASSEMBLY | 1 | ||||||
| 25 | 32-64088A09 | TUBING | 1 | 640886 | |||||
| 26 | 54-816311T | STA-STRAP | 5 | 816311 | |||||
| 27 | 22-63670 | FITTING | 2 | No Longer Available | |||||
| 28 | 22-63651 | ELBOW (90 DEGREES) | 2 | No Longer Available | |||||
| 29 | 22-77863 | FITTING | 1 | No Longer Available | |||||
| 30 | 22-64706001 | TEE FITTING | 1 | 64706 | |||||
| 31 | 22-36492 | BUSHING | 1 |
