225 EFI Pro Max and Super Mag - Serial 0D935638 Thru 0G610103 - Gear Housing (PROP Shaft)(Counter Rotation) (SPORTMASTER)

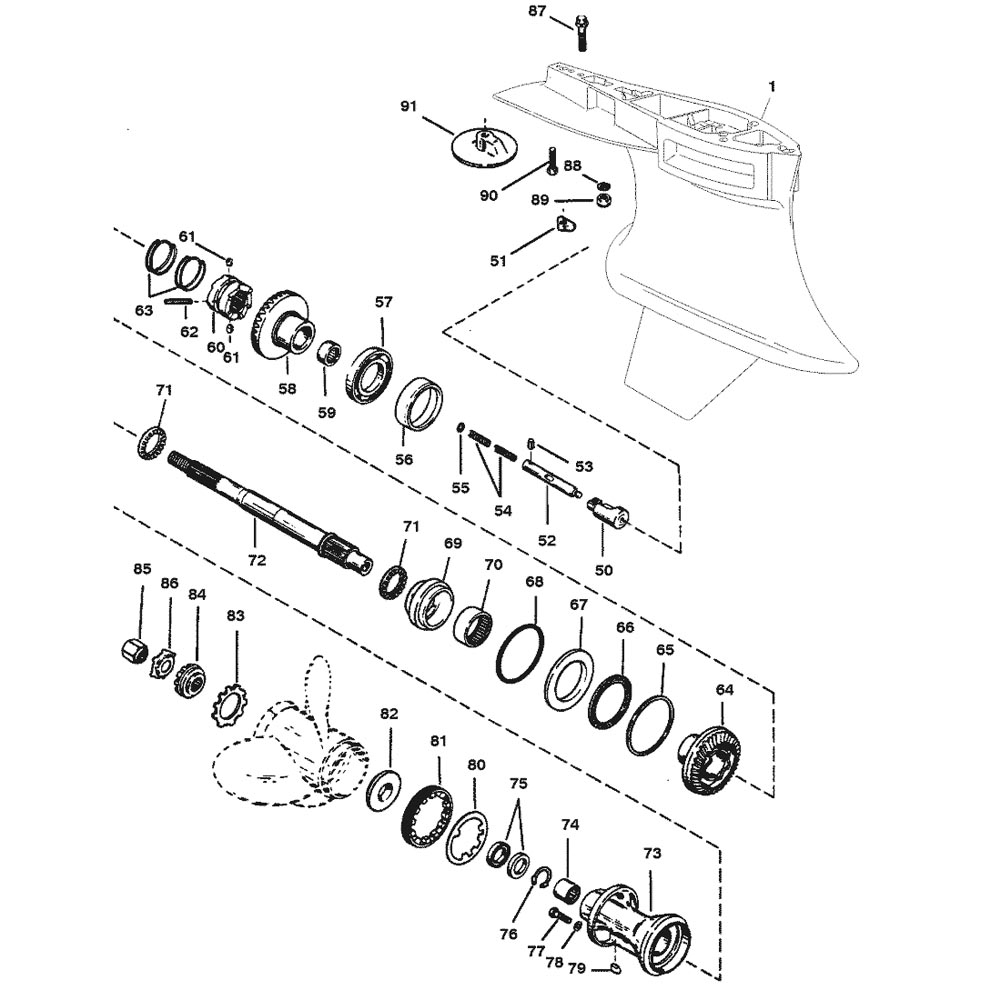

Section Drawing: (Hover or click to view larger)
