225 EFI Pro Max and Super Mag - Serial 0D935638 Thru 0G610103 - Throttle Lever And Shift Shaft

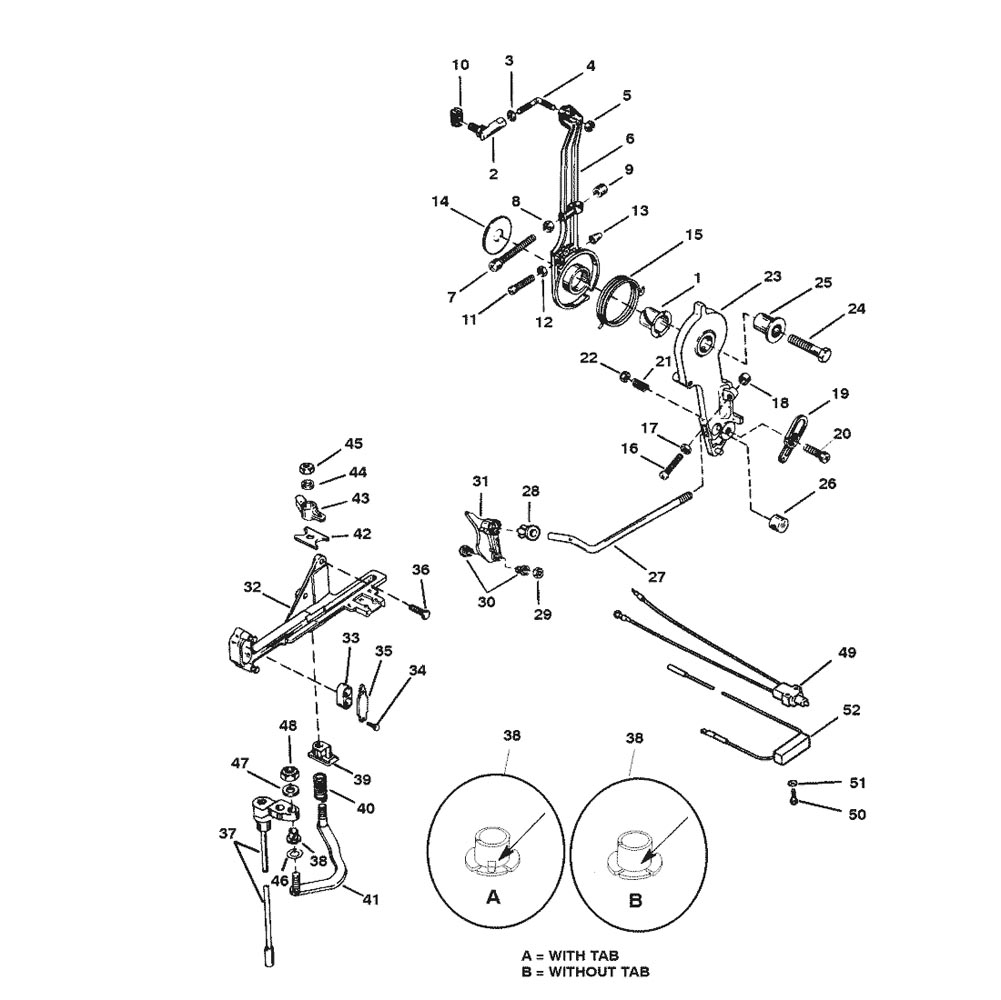

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Bleed System
- Cowling
- Crankshaft, Pistons And Connecting Rods
- Cylinder Block And End Caps
- Drive Shaft Housing And Exhaust Tube
- E.C.U. Assembly
- Exhaust Divider And Exhaust Plate
- Flywheel, Starter Motor And Ignition Coils
- Fuel Management System (S/N-0G366999 & Below)
- Fuel Management System (S/N-0G366999 & Below)
- Fuel Management System (S/N-0G367000 & Up)
- Fuel Management System (S/N-0G367000 & Up)
- Fuel Pump And Fuel Filter
- Gear Housing (DRIVE Shaft)(Cle)
- Gear Housing (DRIVE Shaft)(Torque Master)
- Gear Housing (DRIVESHAFT)(COUNTER Rotation) (SPORTMASTER)
- Gear Housing (DRIVESHAFT)(COUNTER Rotation) (SPORTMASTER)
- Gear Housing (DRIVESHAFT)(STANDARD Rotation) (SPORTMASTER)
- Gear Housing (DRIVESHAFT)(STANDARD Rotation) (SPORTMASTER)
- Gear Housing (PROP Shaft)(Counter Rotation) (SPORTMASTER)
- Gear Housing (PROP Shaft)(Counter Rotation) (SPORTMASTER)
- Gear Housing (PROP Shaft)(Standard Rotation) (SPORTMASTER)
- Gear Housing (PROPELLER Shaft)(Cle)
- Gear Housing (PROPELLER Shaft)(Torque Master)
- Gear Housing Chart (SPORTMASTER)
- Instrumentation
- Key Switch Assembly
- Oil Injection Components
- Power Trim Components
- Power Trim Motor
- Reed Block And Cylinder Head
- Starter Motor
- Steering Attaching Kit
- Swivel Bracket And Steering Arm
- Temperature Sensor
- Throttle Lever And Shift Shaft
- Transom Brackets
- Trim Solenoid Plate (S/N-0G205073 & Below)
- Trim Solenoid Plate (S/N-0G205074 & Up)
- Wiring Harness/Starter Solenoid
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 23-55171 | BUSHING | 1 | ||||||
| 2 | 62459T | BALL JOINT | 1 | 62459 | |||||
| 3 | 11-45076 | NUT | 1 | ||||||
| 4 | 76035 | LINK ROD | 1 | ||||||
| 5 | 11-46438 | NUT | 1 | ||||||
| 6 | 41094A3 | SPARK ADVANCE LEVER | 1 | ||||||
| 7 | 10-64022 | SCREW | 1 | ||||||
| 8 | 11-64015 | NUT | 1 | ||||||
| 9 | 26852 | CAP | 1 | ||||||
| 10 | 74897T | PIVOT | 1 | 74897 | |||||
| 11 | 10-13627 | SCREW (1-1/4 IN.) | 1 | ||||||
| 12 | 11-68219 | NUT | 1 | ||||||
| 13 | 48039 | CAP | 1 | ||||||
| 14 | 12-46765 | WASHER | 1 | ||||||
| 15 | 24-823235 | SPRING | 1 | ||||||
| 16 | 10-64022 | SCREW (2-1/8 IN.) | 1 | ||||||
| 17 | 11-64015 | NUT (1/4-20) | 1 | ||||||
| 18 | 26852 | CAP | 1 | ||||||
| 19 | 39483 | LATCH | 1 | ||||||
| 20 | 10-69026 | SCREW | 1 | ||||||
| 21 | 24-20099 | SPRING | 1 | ||||||
| 22 | 11-826709109 | NUT | 1 | 35045 | |||||
| 23 | 410952 | THROTTLE CONTROL LEVER | 1 | 41095 | |||||
| 24 | 10-818165 | SCREW (1-3/4 IN.) | 1 | ||||||
| 25 | 23-55164 | BUSHING | 1 | ||||||
| 26 | 14638 | BARREL | 1 | ||||||
| 27 | 14634 | THROTTLE CONTROL ROD | 1 | ||||||
| 28 | 23-932481 | SWIVEL BUSHING | 1 | ||||||
| 29 | 11-826709109 | NUT | 1 | 35045 | |||||
| 30 | 23-26856 | BUSHING | 2 | ||||||
| 31 | 815539T | THROTTLE CAM | 1 | No Longer Available | |||||
| 32 | 814283A2 | ANCHOR BRACKET | 1 | ||||||
| 33 | 39519 | CAP | 1 | ||||||
| 34 | 10-42975 | SCREW | 2 | ||||||
| 35 | 98889 | LATCH | 1 | ||||||
| 36 | 10-53167T | SCREW | 3 | 53167 | |||||
| 37 | 79932A16 | SHIFT SHAFT ASSEMBLY | 1 | 79932A11 | |||||
| 38 | 23-26600 | BUSHING | 1 | No Longer Available | |||||
| 37 | 79932A16 | SHIFT SHAFT ASSEMBLY | 1 | ||||||
| 38 | 23-26856 | BUSHING | 1 | ||||||
| 39 | 814284 | GUIDE BLOCK | 1 | ||||||
| 40 | 24-20099 | SPRING | 1 | ||||||
| 41 | 67073A1 | LINK ROD ASSEMBLY | 1 | ||||||
| 42 | 52100 | WEAR PLATE | 1 | ||||||
| 43 | 8M0036768 | LATCH | 1 | 38279 | |||||
| 44 | 12-69056 | WASHER | 1 | ||||||
| 45 | 11-826709109 | NUT | 1 | 35045 | |||||
| 46 | 13-29720 | WAVE WASHER | 1 | ||||||
| 47 | 12-35462 | WASHER | 1 | ||||||
| 48 | 11-826709109 | NUT | 1 | 35045 | |||||
| 49 | 87-814281A1 | IDLE STABILIZING SHIFT KIT | 1 | No Longer Available | |||||
| 50 | 10-77478 | SCREW | 2 | ||||||
| 51 | 12-27882 | WASHER | 2 | ||||||
| 52 | 17461A3 | RESISTOR MODULE | 1 |
